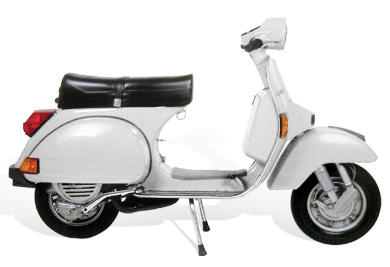

PX 150 E Lusso (VLX1T, 1984-1997)
PX 150 E Lusso (VLX1T, 1984-1997)
All items suitable for your vehicle
Exploded views
Vehicle (general)
Designation
PX 150 E Lusso (VLX1T, 1984-1997)
VIN
VLX1T
Year of construction
1984, 1985, 1986, 1987, 1988, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997

Vehicle engine
Motor type
2-Takt
Emission standard
keine
Displacement
149.5 cm³
Stroke
57 mm
Drill hole
57.8 mm
Motor type
2-Takt
Number of cylinders
1
Type of cooling
Luft
Power (kW)
6.7 kW
Power (PS)
9
rpm (p max)
6000
Mixture preparation
Vergaser
Carburetor
Dell'Orto SI 20/20D
Starter
Kickstarter
Clutch
Manuell
Motor manufacturer
Piaggio
V max
90 km/h

Vehicle dimensions
Length
1765 mm
Width
700 mm
Height
1115 mm
Seat height
810 mm
Wheelbase
1240 mm
Gasoline tank capacity
8 Ltr.
of which reserve (gasoline)
2 Ltr.
Weight (empty)
104 kg
Weight (ready for use)
112 kg
Weight (max)
290 kg

Vehicle tires
Front tires
3.50 - 10
Rear tires
3.50 - 10
Front rim
2.10 - 10
Rear rim
2.10 - 10

Vehicle brake system
Front brake type
Trommelbremse
Type of rear brake
Trommelbremse
Ø front
150 mm
Ø rear
150 mm
Front brake actuation
mechanisch mit Seilzug
Rear brake actuation
mechanisch mit Seilzug

Vehicle Engine - Gearbox
Gearbox type
manuell
Number of gears
4

Vehicle fuels
Fuel
Super (ROZ 95)
Mixing ratio
automatisch
Gear oil
SAE30
Quantity of gear oil
0.25 Ltr.

General
Code (new)
VESPA_VLX1TLUSSO
