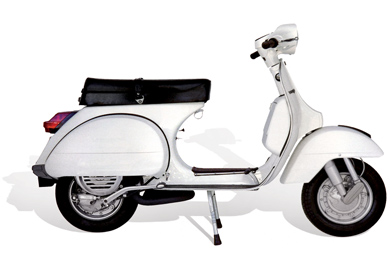

Vespa P 150 X (VLX1T) – PX Series Classic up to 1980

The Vespa P 150 X with frame prefix VLX1T was produced from 1978 and marked the start of the legendary PX series – one of the most iconic and long-lasting Vespa lines. Positioned between the P 125 X and the P 200 E, the 150 X was a popular touring model, especially in Europe.

Body and Design

The P 150 X featured a self-supporting steel monocoque frame with angular legshield, rectangular headlamp and a continuous floorboard with black rubber strips. The headset was made of cast aluminium and included an angular speedometer along with light and gear controls. A glovebox integrated into the legshield was a new standard feature.

Engine and Technology

The air-cooled 2-stroke engine with 150 cc delivered about 6.6 kW (9 hp) at 5,600 rpm. Gear shifting was manual via a 4-speed twist grip. A major innovation was the maintenance-free electronic ignition. The scooter was started via kickstarter; no electric starter was available. Both front and rear used drum brakes, and the PX rolled on 10" steel wheels.

Colours and Distinctive Features

Original paint options for early P 150 X models (until 1980) included:
  • Rosso Katmandù – MaxMeyer 1.298.5847
  • Grigio Chiaro – MaxMeyer 1.268.8207
  • Azzurro Metallizzato – MaxMeyer 1.298.0110
  • Verde Vallese – MaxMeyer 1.298.8475
Standard features included black vinyl seat, plastic grips, compact taillight without reflector, and no brake light – which was not yet mandatory in earlier production years.

Collector Value and Spare Parts

The P 150 X is a favourite among restorers and classic Vespa fans. It offers robust mechanics, excellent parts availability and clear documentation. Frame prefix VLX1T is the key reference for identifying model year and part compatibility.
Vehicle (general)
Designation
P 150 X (VLX1T, -1980)
VIN
VLX1T
Year of construction
1978, 1979, 1980

Vehicle engine
Motor type
2-Takt
Emission standard
keine
Displacement
149.5 cm³
Stroke
57 mm
Drill hole
57.8 mm
Motor type
2-Takt
Number of cylinders
1
Type of cooling
Luft
Power (kW)
6.7 kW
Power (PS)
9
rpm (p max)
6000
Mixture preparation
Vergaser
Carburetor
Dell'Orto SI 20/20D
Starter
Kickstarter
Clutch
Manuell
Motor manufacturer
Piaggio
V max
90 km/h

Vehicle dimensions
Length
1765 mm
Width
700 mm
Height
1115 mm
Seat height
810 mm
Wheelbase
1240 mm
Gasoline tank capacity
8 Ltr.
of which reserve (gasoline)
2 Ltr.
Weight (empty)
104 kg
Weight (ready for use)
112 kg
Weight (max)
290 kg

Vehicle tires
Front tires
3.50 - 10
Rear tires
3.50 - 10
Front rim
2.10 - 10
Rear rim
2.10 - 10

Vehicle brake system
Front brake type
Trommelbremse
Type of rear brake
Trommelbremse
Ø front
150 mm
Ø rear
150 mm
Front brake actuation
mechanisch mit Seilzug
Rear brake actuation
mechanisch mit Seilzug

Vehicle Engine - Gearbox
Gearbox type
manuell
Number of gears
4

Vehicle fuels
Fuel
Super (ROZ 95)
Mixing ratio
1:50
Gear oil
SAE30
Quantity of gear oil
0.25 Ltr.

General
Code (new)
VESPA_VLX1T
