Lambretta Lui 50 & 75
(like Luna, Vega & Cometa)

With the Lui, the Junior series faces competition from within the company. The Lui was intended to secure the lower end of the market segment. In order to save costs in production, the scooter was to be considerably slimmed down and reduced to the essentials. To ensure that the whole project did not look like this, a renowned design house was engaged in the form of Bertone, who also produced an avant-garde design for the Lui and Vega. To this day, Lui and Vega look as fresh as they did in spring 1968, when the slogan "All for Lui, and Lui for all" was used to advertise them.

The frame consists of a rear and front part. The front part consists of the usual tubular frame, while the rear part is pressed. The suspension was adapted from the Junior series. The brake drums are made entirely of steel to ensure good road holding. The mechanical system was adopted from the Junior series.

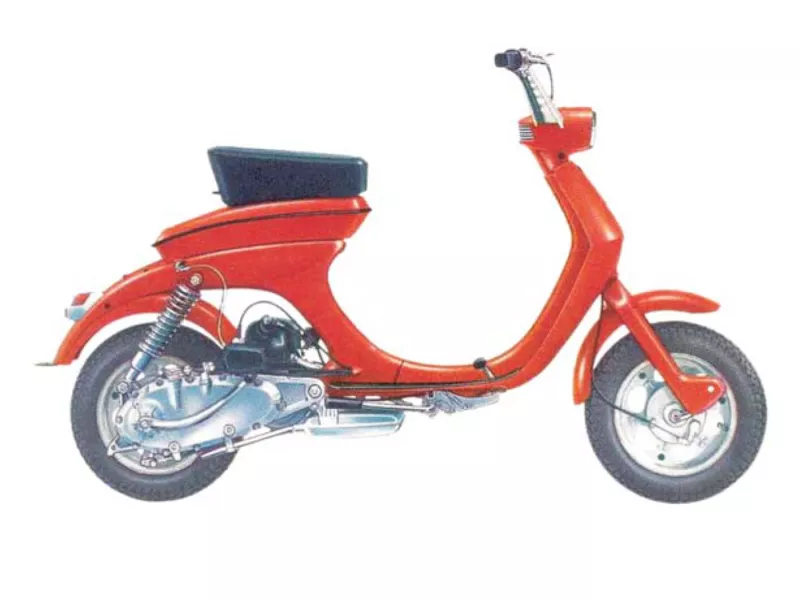

Lui 50 C
The 50 C was the basic model. The handlebars are reminiscent of bicycle handlebars and the front and rear lights also have conventional shapes.

Lui 50 CL
The handlebars of the 50 CL are cast and the headlight is integrated into them. The rear light of the 50 CL is somewhat reminiscent of the Hella rear light of the German Vespa GS 160. Overall, the Lui 50 CL looks like the Lunar Rover.

Lui 50 S
The Lui 50 S was only offered on export markets. It had a double seat, a license plate holder, an up-and-over exhaust and different lettering.

Lui 75 S & SL
Just a few months after the debut of the Lui 50, Innocenti was the only European exhibitor to present the Lui 75 at the 15th Motor Show in Tokyo. The Lui 75 was available in two versions: S and SL. Compared to the 50 cc models, the 75s had a more powerful electrical system that powered the high beam and rear brake light. Like the 50 S, the 75s had a double seat and the up-and-over exhaust. The engine produced 5.2 hp and accelerated quite well thanks to the four-speed gearbox.

The main difference between the S and the SL is the Lubematic, which the SL has. This is a separate lubrication system that was fitted as standard for the first time on an Italian scooter.

Both variants were only available in two colors, orange and metallic grey. The only obvious difference between the S and SL is the Lubematic sticker on the tank and the lettering on the leg shield.

Type:
Displacement:
Year of construction:
Quantity:
Code:
1. frame no.:
Lui 50
50 ccm
03/68 to 06/69
27.812
20/9
-


Lui 50 C, CL - 1st version
(March 1968 to early 1969)

Lambretta lettering on the left of the leg plate above the 50 C or CL, brake and clutch lever without balls at the end, chrome-plated grille behind the front headlight



Lui 50 C, CL - 2nd version
(early 1969 to December 1970)

No more Lambretta lettering on the leg shield. Rectangular Lui lettering in the center of the leg shield. Brake and clutch levers with balls, chrome-plated grille behind the headlight with Innocenti lettering. On a few vehicles, there was also a small Innocenti logo above the Lui emblem.

Original paint (Lechler)

Biancospino (Hawthorn)
8082
Farbkarte
Turchese (turquoise)
8016
Farbkarte
Arancione (Orange)
8037
Farbkarte
Verde Mela (apple green)
8039
Farbkarte

Early models Lui 50 C:
Azzurro Acquamarina (water blue)
8030
Farbkarte
Arancione (Orange)
8037
Farbkarte
Vehicle (general)
Designation
Lui 50 (50 C, 50 CL, Luna)
VIN
20/9
Year of construction
1968, 1969
Number of units built
27812
Colors
arancio (8037), verde mela (8039), biancospino (8082)

Vehicle engine
Motor type
2-Takt
Emission standard
keine
Displacement
49.8 cm³
Stroke
44 mm
Drill hole
38 mm
Motor type
2-Takt
Number of cylinders
1
Type of cooling
Luft
Power (kW)
1.9 kW
Power (PS)
1.48
rpm (p max)
4600
Compaction
1:7.75
Mixture preparation
Vergaser
Carburetor
Dell'Orto SHA 14-12
Starter
Kickstarter
Clutch
Manuell
Motor manufacturer
Innocenti
V max
45 km/h

Vehicle dimensions
Length
1700 mm
Width
656 mm
Height
1028 mm
Seat height
770 mm
Wheelbase
1202 mm
Gasoline tank capacity
6 Ltr.
of which reserve (gasoline)
0.8 Ltr.
Weight (empty)
68.6 kg

Vehicle tires
Front tires
3.00 - 10
Rear tires
3.00 - 10
Front rim
2.10 - 10
Rear rim
2.10 - 10

Vehicle brake system
Front brake type
Trommelbremse
Type of rear brake
Trommelbremse
Ø front
125 mm
Ø rear
150 mm
Front brake actuation
mechanisch mit Seilzug
Rear brake actuation
mechanisch mit Seilzug

Vehicle chassis
Chassis type front
Schwinge gezogen, nur Feder
Rear suspension type
Federbein

Vehicle engine - ignition system
Spark plug
(NGK) B7ES
Type of ignition
Kontaktzündung
Pre-ignition
21
Distance contacts
0.4 mm
Power (light)
18 W
Tension
6 V

Vehicle Engine - Gearbox
Gearbox type
manuell
Number of gears
3
Complete translation - 1:
9.827
Translation Primary - 1:
4.2727
Gear ratio 1 - 1:
6.444
Gear ratio 2 - 1:
3.533
Gear ratio 3 - 1:
2.3

Vehicle fuels
Fuel
Super (ROZ 95)
Mixing ratio
1:50
Gear oil
SAE90
Quantity of gear oil
0.5 Ltr.

General
Code (new)
INNOCENTI_LUI50
