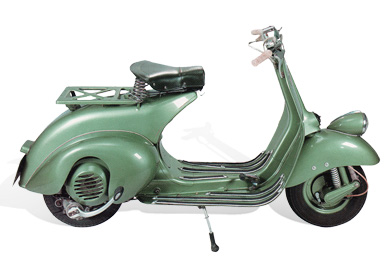

Vespa 125 (V30T)
Vespa 125 (V30T)

Vespa 125 (V30)

With the V30T, Piaggio does away with the clumsy linkage gearshift in favor of the more precise cable gearshift still in use today. The exhaust, previously positioned under the luggage compartment jaw, is now positioned transversely between the taverse of the engine swingarm and the rear wheel, for which the frame is adapted accordingly. The fuel tap is no longer operated with the tow hook, but with a fuel tap lever with knob for three positions: closed (C) - open - reserve (R). The effect of the rear brake is improved by a larger diameter brake drum. The footboard is extended to behind the crossbar bolts to make it easier for the passenger to place his feet on it. The dark green saddle cover is closed at the front, so the front saddle spring is no longer visible. The handlebar clamp is fitted with 6 rubber plates to dampen vibrations, the headlight on the mudguard is unchanged from the V15T, but the rear light now has a rectangular design. (Source: GSF)

Frame numbers by year of manufacture:
1950: V30T 104097- ?
Number of V30-V33: 147,724

Original paint (MaxMeyer)

Bodywork:
Verde Metallizato
PIA6002M (30)
Verde Met. 6002M
Primer:
Rosso Opaco (Antiruggine)
PIA55 (10055M)
Rosso Opaco 10055M
Add-on parts:
Verde Metallizato
PIA6002M (30)
Verde Met. 6002M
Vehicle (general)
Designation
Vespa 125 (V30T)
VIN
V30T
Year of construction
1950, 1951

Vehicle engine
Motor type
2-Takt
Emission standard
keine
Displacement
124.8 cm³
Stroke
49.8 mm
Drill hole
56.5 mm
Motor type
2-Takt
Number of cylinders
1
Type of cooling
Luft
Power (kW)
3.31 kW
Power (PS)
4.5
rpm (p max)
5000
Compaction
1:6.4
Mixture preparation
Vergaser
Carburetor
Dell'Orto TA 17B
Starter
Kickstarter
Clutch
Manuell
Motor manufacturer
Piaggio

Vehicle dimensions
Length
1655 mm
Width
790 mm
Height
950 mm
Seat height
760 mm
Ground clearance
150 mm
Wheelbase
1130 mm
Weight (empty)
70 kg

Vehicle tires
Front tires
3.50 - 8
Rear tires
3.50 - 8
Front rim
2.10 - 8
Rear rim
2.10 - 8

Vehicle brake system
Front brake type
Trommelbremse
Type of rear brake
Trommelbremse
Front brake actuation
mechanisch mit Seilzug
Rear brake actuation
mechanisch mit Seilzug

Vehicle engine - ignition system
Spark plug
(NGK) B7HS
Type of ignition
Kontaktzündung
Pre-ignition
32
Distance contacts
0.4 mm
Tension
6 V

Vehicle Engine - Gearbox
Gearbox type
manuell
Number of gears
3

Vehicle fuels
Fuel
Super (ROZ 95)
Mixing ratio
1:25
Gear oil
SAE30
Quantity of gear oil
0.25 Ltr.

General
Code (new)
VESPA_V30T
