Vespa 125 GT (VNL2T)
Vespa 125 GT (VNL2T)

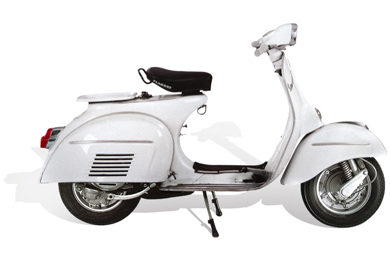

Vespa 125 GT

In order to be able to offer the new, more angular design in the 125 cc displacement class, the Vespa GT 125 (VNL2T) was offered alongside the Sprint 150 from 1966. The frame did not differ from the Sprint. The engine was taken over unchanged from the Super 125, apart from an increase in compression. The GT 125 is offered as standard with single saddles and until 1968 in aquamarine light blue (MaxMeyer code 1.298.7305). From 1968 in a metallic light blue (MaxMeyer code 1.298.0110).

Frame numbers by year of construction:
1966: VNL2T 30001-35753
1967: VNL2T 35764-54602
1968: VNL2T 54603-65401
1969: VNL2T 65402-69847
1970: VNL2T 69848-73613
1971: VNL2T 73614-75821
1972: VNL2T 75822-78313
1973: VNL2T 78314-81582

Original paint (MaxMeyer)

Bodywork:
Azzurro Acquamarina
PIA305 (1.298.7305)
Azzurro Aquamarina 305
from 1968:
Azzurro (Chiaro) Metallizato
PIA110 (1.268.0110)
Azzurro Chiaro Met. 110
from 1969:
Argento Metallizato
PIA103 (1.268.0103)
Argento Met. 103
Verde Pastello
PIA399 (1.298.6399)
Verde Pastello 399
Primer:
Grigio (Antiruggine)
PIA8012M (8012M)
Grigio (Antiruggine)
Add-on parts:
Alluminio
PIA983 (1.268.0983)
Alluminio
Matching articles for this vehicle
Exploded views
Offers for this vehicle
Vehicle (general)
Designation
Vespa 125 GT (VNL2T)
VIN
VNL2T
Year of construction
1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973
Number of units built
51582

Vehicle engine
Motor type
2-Takt
Emission standard
keine
Displacement
123.4 cm³
Stroke
57 mm
Drill hole
52.5 mm
Motor type
2-Takt
Number of cylinders
1
Type of cooling
Luft
Power (kW)
4.6 kW
Power (PS)
6.27
rpm (p max)
5000
Compaction
1:7.8
Mixture preparation
Vergaser
Carburetor
Dell'Orto SI 20/17D
Starter
Kickstarter
Clutch
Manuell
Motor manufacturer
Piaggio
V max
88 km/h

Vehicle dimensions
Length
1770 mm
Width
670 mm
Height
1045 mm
Ground clearance
220 mm
Wheelbase
1200 mm
Gasoline tank capacity
7.7 Ltr.
of which reserve (gasoline)
1.4 Ltr.
Weight (empty)
89 kg
Weight (ready for use)
95 kg

Vehicle tires
Front tires
3.50 - 10
Rear tires
3.50 - 10
Front rim
2.10 - 10
Rear rim
2.10 - 10

Vehicle brake system
Front brake type
Trommelbremse
Type of rear brake
Trommelbremse
Ø front
150 mm
Ø rear
150 mm
Front brake actuation
mechanisch mit Seilzug
Rear brake actuation
mechanisch mit Seilzug

Vehicle engine - ignition system
Spark plug
(NGK) B7HS
Type of ignition
Kontaktzündung
Pre-ignition
21
Distance contacts
0.4 mm
Power (light)
50 W
Tension
6 V

Vehicle Engine - Gearbox
Gearbox type
manuell
Number of gears
4
Complete translation - 1:
4.737
Translation Primary - 1:
3.45
Gear ratio 1 - 1:
4.385
Gear ratio 2 - 1:
3.59
Gear ratio 3 - 1:
2.182
Gear ratio 4 - 1:
1.556

Vehicle fuels
Fuel
Super (ROZ 95)
Mixing ratio
1:50
Gear oil
SAE30
Quantity of gear oil
0.25 Ltr.

General
Code (new)
VESPA_VNL2T
