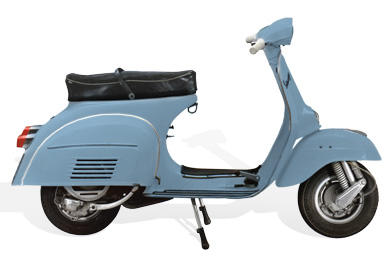

Vespa 150 Super (VBC1T)
Vespa 150 Super (VBC1T)

Vespa 150 Super

The Vespa 'Super' continued to be built with the engine already known from the VBB2. A new external ignition coil was fitted to the Vespa Super. This model was built almost unchanged for 14 years, mainly in Indonesia for the Asian market. The frame was also fitted to the Vespa GL at the same time, and the steering head with 115 mm headlight was later also used on the Vespa Nuova/Primavera. The luggage compartment on the left side cover can now no longer be opened with a lever, but has a lock. This can be operated together with the steering lock - with the same key. The brake drums now have fins for better heat dissipation.


Frame numbers and production years of the Vespa 150 Super


1965: VBC1T 1001-4295
1966: VBC1T 4296-43413
1967: VBC1T 43414-61496
1968: VBC1T 61497-80740
1969: VBC1T 80741-100493
1970: VBC1T 100494-125619
1971: VBC1T 125620-151299
1972: VBC1T 151300-182205
1973: VBC1T 182206-221194
1974: VBC1T 221195-280314
1975: VBC1T 280315-351374
1976: VBC1T 351375-409392
1977: VBC1T 409393-476737
1978: VBC1T 476738-550121
1979: VBC1T 550122-554808


Original paint (MaxMeyer)

Bodywork:
Blu
PIA210 (1.298.7210)
Blu 210
from 1976:
Blu
PIA490 (1.298.7490)
Blu 490
Primer:
Nocciola (Antiruggine)
PIA3000M (3000M)
Nocciola 3000M
Add-on parts:
Alluminio
PIA983 (1.268.0983)
Alluminio
All items suitable for your vehicle
Exploded views
Vehicle (general)
Designation
Vespa 150 Super (VBC1T)
VIN
VBC1T
Year of construction
1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
Number of units built
553808

Vehicle engine
Motor type
2-Takt
Emission standard
keine
Displacement
145.5 cm³
Stroke
57 mm
Drill hole
57 mm
Motor type
2-Takt
Number of cylinders
1
Type of cooling
Luft
Power (kW)
5.1 kW
Power (PS)
6.93
rpm (p max)
5000
Compaction
1:7.4
Mixture preparation
Vergaser
Carburetor
Dell'Orto SI 20/15D
Starter
Kickstarter
Clutch
Manuell
Motor manufacturer
Piaggio
V max
90 km/h

Vehicle dimensions
Length
1740 mm
Width
670 mm
Height
1015 mm
Ground clearance
130 mm
Wheelbase
1200 mm
Gasoline tank capacity
7.7 Ltr.
of which reserve (gasoline)
1.4 Ltr.
Weight (empty)
87 kg
Weight (ready for use)
93 kg

Vehicle tires
Front tires
3.50 - 8
Rear tires
3.50 - 8
Front rim
2.15 - 8
Rear rim
2.15 - 8

Vehicle brake system
Front brake type
Trommelbremse
Type of rear brake
Trommelbremse
Ø front
125 mm
Ø rear
125 mm
Front brake actuation
mechanisch mit Seilzug
Rear brake actuation
mechanisch mit Seilzug

Vehicle engine - ignition system
Spark plug
(NGK) B7HS
Type of ignition
Kontaktzündung
Pre-ignition
22
Distance contacts
0.6 mm
Power (light)
50 W
Tension
6 V

Vehicle Engine - Gearbox
Gearbox type
manuell
Number of gears
4
Complete translation - 1:
4.735
Translation Primary - 1:
3.45
Gear ratio 1 - 1:
4.385
Gear ratio 2 - 1:
3.59
Gear ratio 3 - 1:
2.182
Gear ratio 4 - 1:
1.555

Vehicle fuels
Fuel
Super (ROZ 95)
Mixing ratio
1:50
Gear oil
SAE30
Quantity of gear oil
0.25 Ltr.

General
Code (new)
VESPA_VBC1T
