Vespa 150 GL (VLA1T)
Vespa 150 GL (VLA1T)

Vespa 150 GL

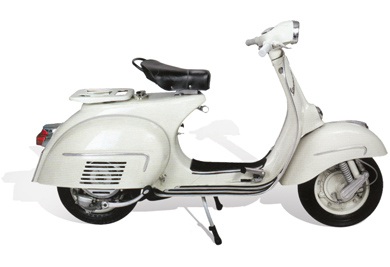

The Vespa GL 150 (VLA1T) from 1963 was the revolutionary and luxurious successor to the VBB. Overall, the GL was larger and much more angular than the VBB. The handlebars feature a trapezoidal headlight. On request, the GL can be ordered directly with a bench seat instead of the single saddle and luggage rack. An option that suits the GL very well. The dark blue of the saddle and lettering perfectly matches the ivory paint of the bodywork (MaxMeyer code 1.298.3909). In keeping with the more angular design, the chrome tail light has also become much more angular. The GL comes on 10-inch tires with the brake drums and brakes of the GS 150 VS5. The engine, on the other hand, is a modification of the VBB1T engine, the transmission ratio is adapted to the changed rolling circumference of the tires, the bore and stroke are retained, the nose piston is sent into well-earned retirement and a domed piston is used. Measures that are reflected in improved elasticity.

Frame numbers by year of construction:
1962: VLA1T 1001-5958
1963: VLA1T 5959-57103
1964: VLA1T 57104-78009
1965: VLA1T 78010-80855

Original paint (MaxMeyer)

Body:
Avorio
PIA909 (1.298.3909/15241)
Avorio
Add-on parts:
Avorio
PIA909 (1.298.3909/15241)
Avorio
Primer:
Nocciola (Antiruggine)
PIA3000M (3000M)
Nocciola 3000M
Fan wheel cover:
Alluminio
PIA983 (1.268.0983)
Alluminio
Vehicle (general)
Designation
Vespa 150 GL (VLA1T)
VIN
VLA1T
Year of construction
1962, 1963, 1964, 1965
Number of units built
79854

Vehicle engine
Motor type
2-Takt
Emission standard
keine
Displacement
145.5 cm³
Stroke
57 mm
Drill hole
57 mm
Motor type
2-Takt
Number of cylinders
1
Type of cooling
Luft
Power (kW)
4.6 kW
Power (PS)
6.25
rpm (p max)
5000
Compaction
1:7.2
Mixture preparation
Vergaser
Carburetor
Dell'Orto SI 20/17D
Starter
Kickstarter
Clutch
Manuell
Motor manufacturer
Piaggio
V max
88 km/h

Vehicle dimensions
Length
1770 mm
Width
675 mm
Height
1045 mm
Ground clearance
220 mm
Wheelbase
1200 mm
Gasoline tank capacity
7.7 Ltr.
of which reserve (gasoline)
1.4 Ltr.
Weight (empty)
89 kg
Weight (ready for use)
95 kg

Vehicle tires
Front tires
3.50 - 10
Rear tires
3.50 - 10
Front rim
2.10 - 10
Rear rim
2.10 - 10

Vehicle brake system
Front brake type
Trommelbremse
Type of rear brake
Trommelbremse
Ø front
150 mm
Ø rear
150 mm
Front brake actuation
mechanisch mit Seilzug
Rear brake actuation
mechanisch mit Seilzug

Vehicle engine - ignition system
Spark plug
(NGK) B7HS
Type of ignition
Kontaktzündung
Pre-ignition
21
Distance contacts
0.4 mm
Power (light)
35 W
Tension
6 V

Vehicle Engine - Gearbox
Gearbox type
manuell
Number of gears
4
Complete translation - 1:
5.481
Translation Primary - 1:
3.45
Gear ratio 1 - 1:
4.75
Gear ratio 2 - 1:
3.375
Gear ratio 3 - 1:
2.45
Gear ratio 4 - 1:
1.8

Vehicle fuels
Fuel
Super (ROZ 95)
Mixing ratio
1:50
Gear oil
SAE30
Quantity of gear oil
0.25 Ltr.

General
Code (new)
VESPA_VLA1T
