Stage6 Item number: 3331139
Stage6

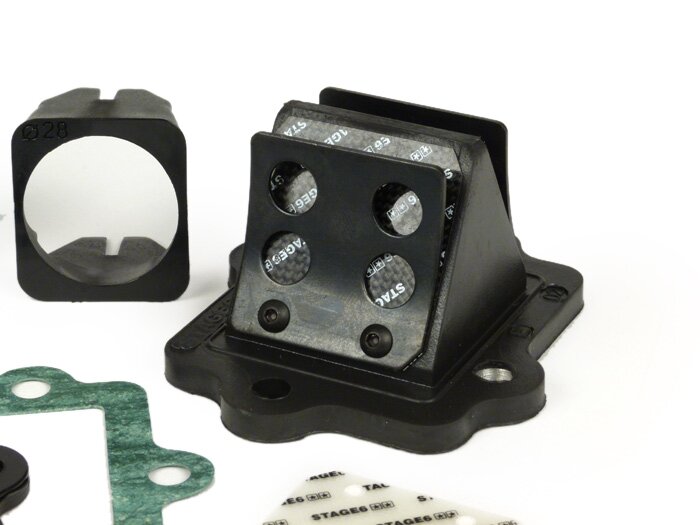

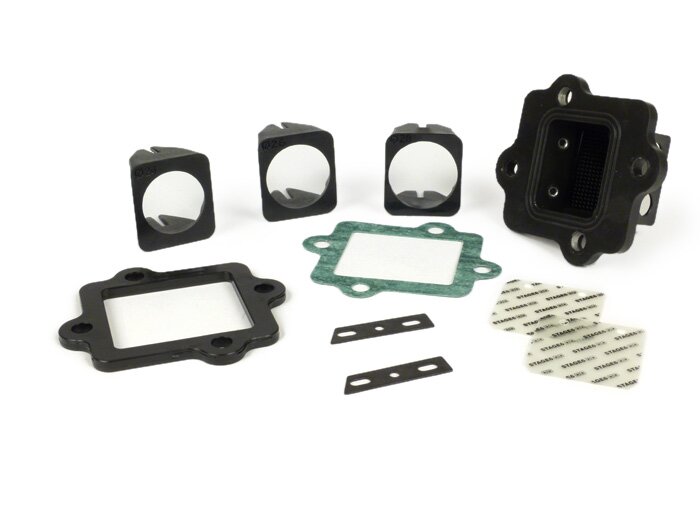

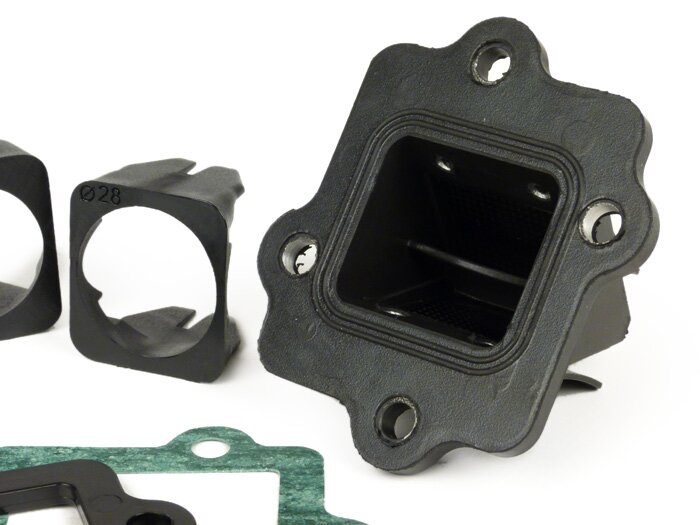

Reed valve -Stage6- R/T FKM - Minarelli 50-100cc (horizontal cylinder), Suzuki/Aprilia 50cc, CPI, Keeway, Sachs, Lambretta LTH reed valve intake V3.0

69,00 €*
available immediately
Shipping weight 0,15 kg
Information on product safety
Report error
Rate this article now and let us know what you think.
Rate this product now
Membrane platelets
Strength tile 1
0.2 mm
Material
Carbon
Number of screws per plate
2

Membrane blocks
Design
V-Form
Membrane body material
Kunststoff
Rubberized membrane body
Ja
Number of fixing holes
4
Hole stitch
62 x 52mm
Outer dimension flange plate
62 x 55mm
Internal dimension flange plate
35 x 15mm
Flange plate thickness
5,5mm
Insertion depth
36,0mm
Stops for membrane plates
ja
Number of membranes
2

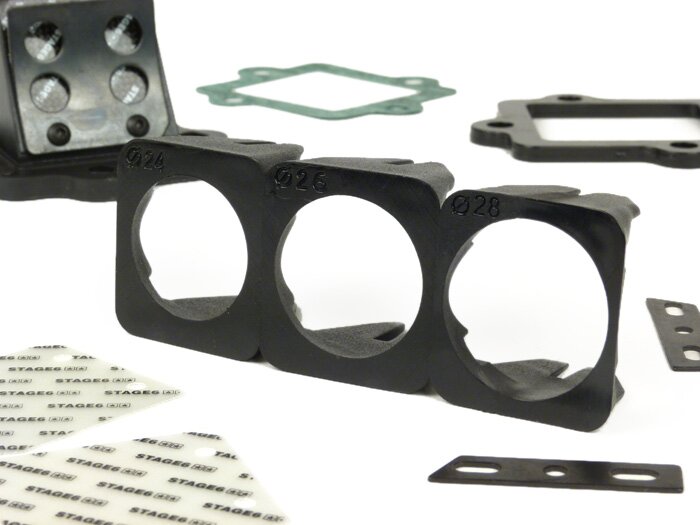

Stuffer included in the scope of delivery
ja
Seal included in the scope of delivery
ja
Spacer included in the scope of delivery
ja
Replacement plates included in the scope of delivery
ja

OEM numbers (for comparison purposes only)
Scooter Center:
3331139
