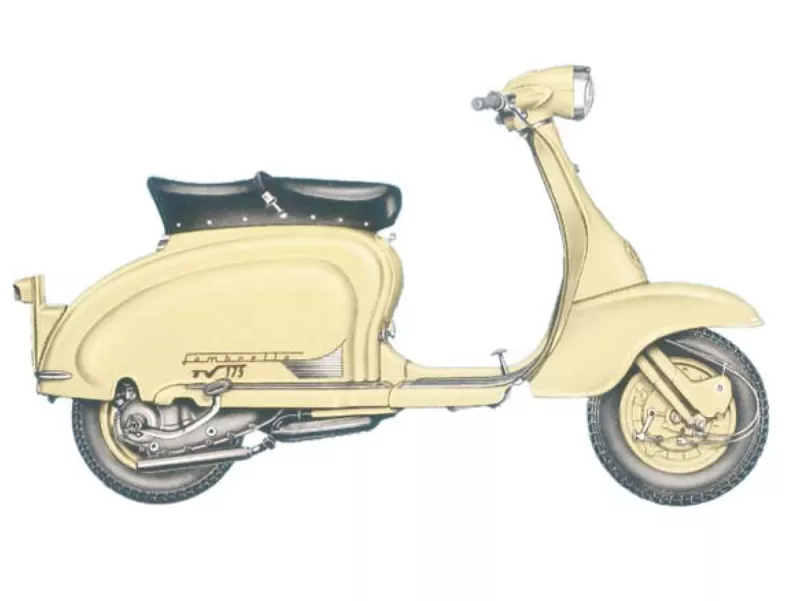

Lambretta TV 175
Series 2

In January, the TV 175 Series 2 is also introduced and advertised as "the Sportsman scooter". As with the Li 125 & 150, the difference that immediately catches the eye is the new steering head with integrated headlight. Like the Li 150, the TV has aluminum rails with rubber profiles and tread strip end pieces in the step-through area. The double seat bench is standard. Single seats are available as an option. The front fork with the additional shock absorbers painted in the vehicle color was adopted from the Series 1. The front drum brake has been revised and features specific forklinks. The rear light is modified during production and becomes larger. This also applies to the horn grille. The rear light seal remains white, and the rubber parts also remain gray with the exception of the black kickstand feet and the kickstarter rubber.

The first Series 2 TVs had a frame that was too weak. This must have caused such problems on some models that Innocenti decided to reinforce them. For this purpose, the frames were cut open lengthwise and welded together again after a reinforcing plate had been inserted. The frames were then made from thicker tubes. The frames can also be distinguished by their frame numbers. The first version, mainly vehicles that had to be reinforced, has a 1, the later ones a 2 as the first frame number.

In contrast to the TV 175 Series 1, the engine only has a 58 mm stroke (116 mm connecting rod). Cylinders and pistons are specific to this model. The failure-prone kickstarter mechanism is dropped and the mechanism of the Li models is adopted. Even if the carburetor diameter is reduced to 21 mm, the power remains at 8.6 hp and the top speed even rises to 104 km/h. In terms of color, the TV 2 always looks good, whether in ivory or light blue.

When production stopped, 41,787 TVs had been built.

Type:
Engine capacity:
Year of construction:
Number of units:
Abbreviation:
1st frame no:
TV 175
175 ccm
01/59 to 10/59
7,464
175TV
100,001


Type:
Displacement:
Year of construction:
Quantity:
Code:
1st frame no:
TV 175
175 ccm
11/59 to 11/61
34.323
175TV
200.001


TV 175 - 1st version
(January 1959 to October 1959)

The frame has the additional welded strut. 23 mm carburetor, small tail light (142 x 43 mm), round horn grille, air filter is held in place with a nut. Splash plate is fastened with eight 5 mm bolts. The bearing on the fan wheel side is lubricated by the mixture. The frame number starts with 100.001.


TV 175 - 2nd version
(October 1959 to October 1960)

'Normal' frame, 21 mm carburetor, bearing on the fan wheel side is encapsulated and lubricated with grease. Large rear light (130x58mm), oval horn grille, air filter is held in place with a nut. The frame number starts with 200.001.


TV 175 - 3rd version
(October 1960 to January 1961)

The splash plate is held in place with two 8 mm bolts.


TV 175 - 4th version
(February 1961 to November 1961)

The air filter is held in place with a spring clip (like series 3).



Original paint (Lechler)

Avorio (ivory)
8028
Farbkarte
Azzurro Tireno (Tireno blue)
8042
Farbkarte
Vehicle (general)
Designation
TV 175 (Serie 2)
VIN
175TV
Year of construction
1959, 1960, 1961
Number of units built
43700
Colors
beige rosato (8036), azzurro tirreno (8042), giallo oriente (8049)

Vehicle engine
Motor type
2-Takt
Emission standard
keine
Displacement
175 cm³
Stroke
58 mm
Drill hole
62 mm
Motor type
2-Takt
Number of cylinders
1
Type of cooling
Luft
Power (kW)
6.44 kW
Power (PS)
8.75
rpm (p max)
6000
Compaction
1:7.5
Mixture preparation
Vergaser
Carburetor
Dell'Orto MB21 BS5, Dell'Orto MB23 BS5
Starter
Kickstarter
Clutch
Manuell
Motor manufacturer
Innocenti
V max
104 km/h

Vehicle dimensions
Length
1825 mm
Width
710 mm
Height
1060 mm
Seat height
787 mm
Ground clearance
165 mm
Wheelbase
1290 mm
Gasoline tank capacity
8.5 Ltr.
of which reserve (gasoline)
0.75 Ltr.
Weight (empty)
115 kg
Weight (ready for use)
123 kg
Weight (max)
258 kg

Vehicle tires
Front tires
3.50 - 10
Rear tires
3.50 - 10
Front rim
2.15 - 10
Rear rim
2.15 - 10

Vehicle brake system
Front brake type
Trommelbremse
Type of rear brake
Trommelbremse
Ø front
150 mm
Ø rear
150 mm
Front brake actuation
mechanisch mit Seilzug
Rear brake actuation
mechanisch mit Seilzug

Vehicle chassis
Chassis type front
Schwinge gezogen, getrenntes Feder/Dämpfer-System
Rear suspension type
Federbein

Vehicle engine - ignition system
Spark plug
(NGK) B7ES
Type of ignition
Kontaktzündung
Pre-ignition
23
Distance contacts
0.45 mm
Power (light)
30 W
Tension
6 V

Vehicle Engine - Gearbox
Gearbox type
manuell
Number of gears
4
Complete translation - 1:
4.819
Translation Primary - 1:
3.666
Gear ratio 1 - 1:
4.83
Gear ratio 2 - 1:
2.857
Gear ratio 3 - 1:
2.55
Gear ratio 4 - 1:
1.571

Vehicle fuels
Fuel
Super (ROZ 95)
Mixing ratio
1:25
Gear oil
SAE80
Quantity of gear oil
0.7 Ltr.

General
Code (new)
INNOCENTI_2TV
