Description

We have tried with the help of all available manufacturer information and our experience of many years to take on the subject of brake components as error-free as possible,
however this is unfortunately not 100% possible.
Depending on the availability at the time of vehicle production, the vehicle manufacturers may use different combinations of the installed components.

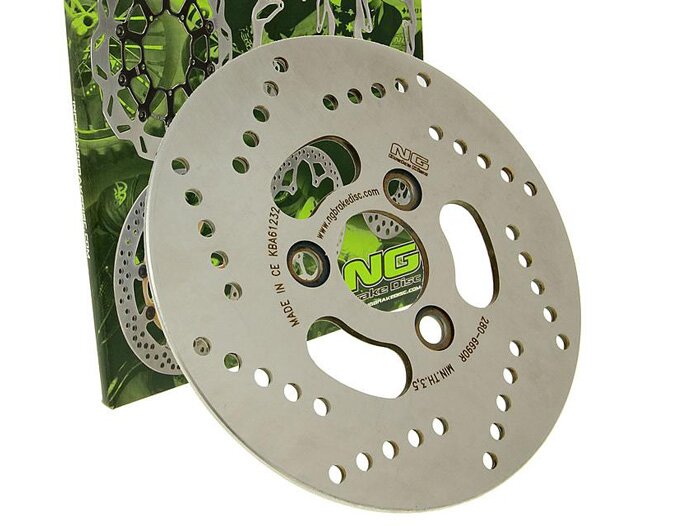

Therefore, we must ask you in case of doubt before ordering to check the compatibility based on the product photos and the specified dimensions.
Of course a return of wrongly ordered articles is sufficiently stamped and in the as good as new / saleable condition within the legal periods possible.
Thank you for your understanding.

As one of the few manufacturers, NG BrakeDisc provides all brake discs with a KBA approval, which is why they can be driven on public roads without further ado. The general type approval of the Federal Motor Transport Authority (KBA) is supplied with every brake disc.

The OEM version has the same dimensions as the original brake disc. However, the design may differ on some models

.
  • Road approval of the Kraftfahrtbundesamt: yes
  • outer diameter: 180mm
  • Inner diameter (mounting): 38mm
  • thickness: 4,0mm
  • Holes: 3
  • hole diameter: 10,5mm
  • Type: Standard

Vehicle allocation for brake disc NG280

SUZUKI

  • TR 50 S Street Magic 1998-2000 (front)
  • AN 125 1995-2000 (front)
  • UE 125 2001-2002 (front)
  • AN 150 1996-2000 (front)
  • UE 150/ Vecstar AN 150 1998-2003 (front)
AI-translation

Ratings
Rate this article now and let us know what you think.
Technical details
General
Quantity included in delivery
1
EAN
4250362494337

Brake disks
Outside diameter
180 mm
Inner diameter
38 mm
Strength
4 mm
Number of screws
3
Fixing hole diameter
10.5 mm
Screw heads
Senkkopf
Oversize
nein
Wave
nein
floating bearing
nein

OEM numbers (for comparison purposes only)
Suzuki:
59211-20E00-000
Suitable vehicles
