We have tried with the help of all available manufacturer information and our years of experience to address the issue of brake components as error-free as possible,
however, this is unfortunately not 100% possible.
Depending on the availability at the time of vehicle production, the vehicle manufacturer can come to different combinations of the installed components.
Therefore, we must ask you in case of doubt before ordering to check the compatibility based on the product photos and the specified dimensions.
Of course, a return of incorrectly ordered items is sufficiently stamped and in mint / saleable condition within the statutory periods possible.
Thank you for your understanding.

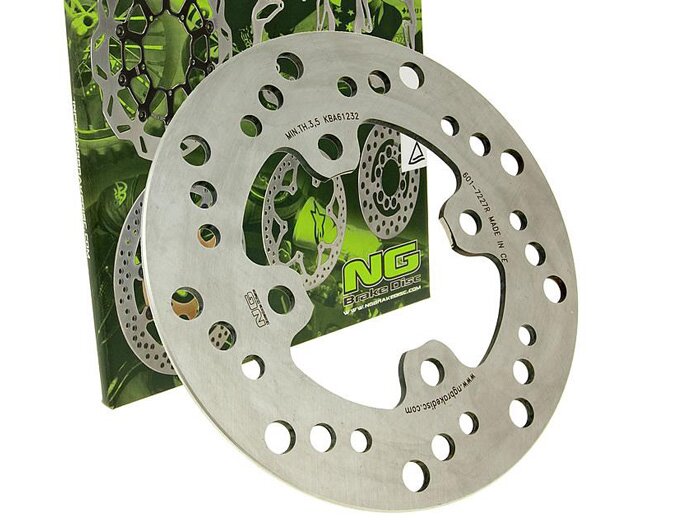

The internationally renowned brake disc specialist NG Brake Disc is a Spanish family business that has been producing brake discs for motorcycles, scooters, quads and ATVs for more than 20 years. More than 30 well-known European and Japanese vehicle manufacturers trust in the top quality of NG and equip their vehicles ex works with NG manufactured brake discs.

As one of the few manufacturers, all NG brake discs have TÜV Rheinland certification and may be driven on public roads. The general operating permit of the Federal Motor Transport Authority KBA is supplied with every brake disc.

The dimensions of the supplied brake disc correspond completely to the original brake disc. However, the design may differ for some models.

  • Road approval of the Kraftfahrtbundesamt: yes
  • Outer diameter: 190mm
  • Inner diameter (receptacle): 72mm
  • thickness: 4,0mm
  • holes: 4
  • hole diameter: 10,5mm
  • Type: Standard

    Vehicle allocation for brake disc NG601

    HONDA

    X8R-S SUPER SPORT (SZX-50) - 1998-2004 (rear)
    X8R-X CROSS SPORT (SZX-50) - 1998-2004 (rear)
  • AI-translation

    Rate this article now and let us know what you think.
    General
    Quantity included in delivery
    1
    EAN
    4250362494702

    Brake disks
    Outside diameter
    190 mm
    Inner diameter
    72 mm
    Bolt circle diameter
    94 mm
    Strength
    4 mm
    Number of screws
    4
    Fixing hole diameter
    10.5 mm
    Oversize
    nein
    Wave
    nein
    floating bearing
    nein
    corresponds to Braking
    HO34RI
    corresponds to EBC
    MD921D
    corresponds to Galfer
    DF055W
    corresponds to Ferodo
    FMD0436

    OEM numbers (for comparison purposes only)
    Honda:
    43351-GCM-900
