We have tried with the help of all available manufacturer information and our years of experience to address the issue of brake components as error-free as possible,
however, this is unfortunately not 100% possible.
Depending on the availability at the time of vehicle production, the vehicle manufacturer can come to different combinations of the installed components.
Therefore, we must ask you in case of doubt before ordering to check the compatibility based on the product photos and the specified dimensions.
Of course, a return of incorrectly ordered items is sufficiently stamped and in mint / saleable condition within the statutory periods possible.
Thank you for your understanding.

The internationally renowned brake disc specialist NG Brake Disc is a Spanish family business that has been producing brake discs for motorcycles, scooters, quads and ATVs for more than 20 years. More than 30 well-known European and Japanese vehicle manufacturers trust in the top quality of NG and equip their vehicles ex works with brake discs manufactured by NG.

As one of the few manufacturers, all NG brake discs have TÜV Rheinland certification and may be driven on public roads. The general operating permit of the Federal Motor Transport Authority KBA is supplied with every brake disc.

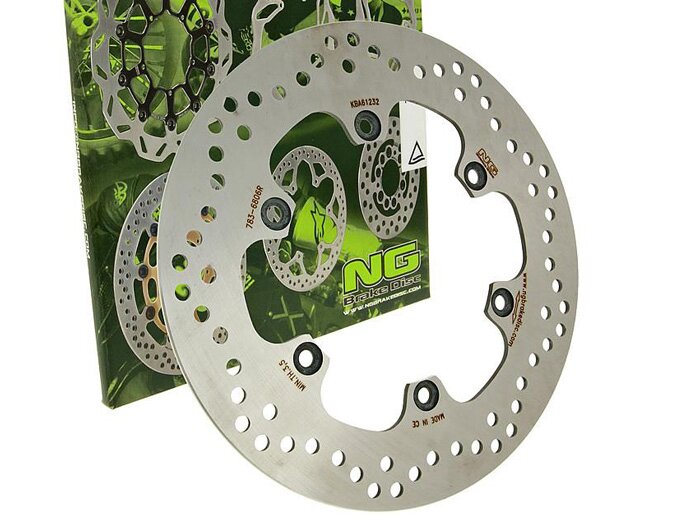

The dimensions of the supplied brake disc correspond completely to the original brake disc. However, the design may differ for some models.

  • Road approval of the Kraftfahrtbundesamt: yes
  • Outer diameter: 267mm
  • Inner diameter (receptacle): 132mm
  • thickness: 4,5mm
  • holes: 5
  • hole diameter: 8,5mm
  • Type: Standard

    Vehicle Allocation Brake Disc NG783

    YAMAHA

    SR 125 - 1997-2002 (front)
    SR 200 - 1997 (front)
    RD 350 F/ N/ R - 1985-1993 (front)
    RD 350 F/ N/ R - 1985-1993 (rear)
    RD 350 YPVS - 1983-1984 (front)
    FZ 400 N - 1985 (front)
    XS 400 - 1982 (front)
    RD 500 LC - 1984-1988 (rear)
    RD 500 LC - 1984-1988 (rear) 1984-1988 (Front)
    XP T-MAX 500 - 2008-2011 (Front)
    XZ 550 - 1982-1984 (Front)
    FZ 600 - 1987-1988 (Front)
    SRX 600 - 1985-1987 (Front)
    XJ 600 - 1983-1991 (Front)
    XJ 600 - 1983-1991 (Rear)
    YX 600 RADIAN - 1986-1990 (Front)
    XJ 650 SEKA - 1983 (Front)
    XJ 650 TURBO - 1982 (Front)
    FZX 700 - 1986-1987 (front)
    FZ 750 GENESIS - 1985-1988 (rear)
    FZ 750 GENESIS - 1985-1988 (front)
    FZ 750 GENESIS - 1989-1992 (rear)
    FZR 750 R - 1989-1992 (rear)
    FZX 750 - 1987 (front)
    XV 750 VIRAGO - 1992-1993 (front)
    XJ 900 - 1987-1994 (front)
    XJ 900 S DIVERSION - 1995-2003 (rear)
    FZR 1000 EXUP - 1990-1995 (rear)
    FZR 1000 GENESIS - 1987-1989 (rear)
    FZS 1000 FAZER - 2001-2005 (rear)
    XV 1000 SE VIRAGO - 1988 (front)
    XV 1000 VIRAGO - 1986 (front)
    BT 1100 BULLDOG - 2002-2006 (rear)
    FZR 1100 - - (rear)
    XV 1100 VIRAGO - 1986-1993 (front)
    XJR 1200 - 1995-1998 (rear)
    XJR 1300 - 1998 (rear)
    XJR 1300 - 2003-2011 (rear)
  • AI-translation

    Rate this article now and let us know what you think.
    General
    Quantity included in delivery
    1
    EAN
    4250362492999

    Brake disks
    Outside diameter
    267 mm
    Inner diameter
    132 mm
    Bolt circle diameter
    150 mm
    Strength
    4 mm
    Number of screws
    6
    Fixing hole diameter
    8.5 mm
    Screw heads
    Zylinderkopf
    Oversize
    nein
    Wave
    nein
    floating bearing
    nein
    corresponds to TRW Lucas
    MST248 , MST 232

    OEM numbers (for comparison purposes only)
    Yamaha:
    4GA2582U00
