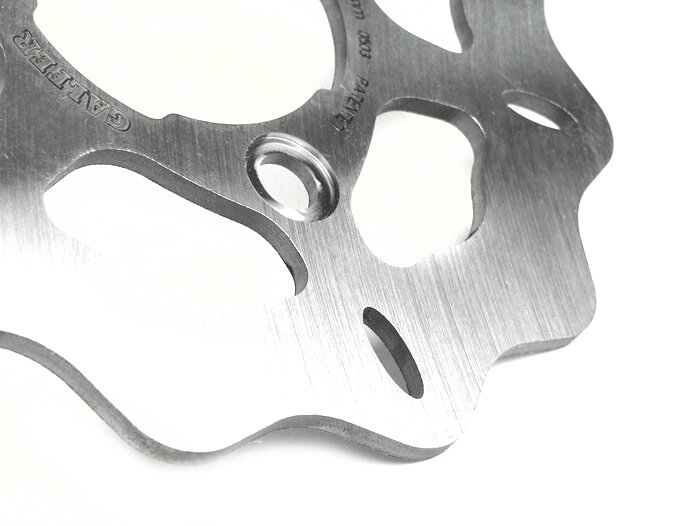

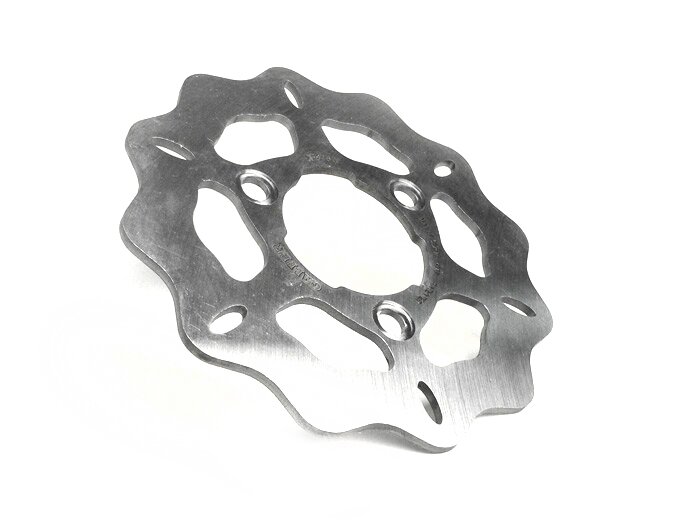

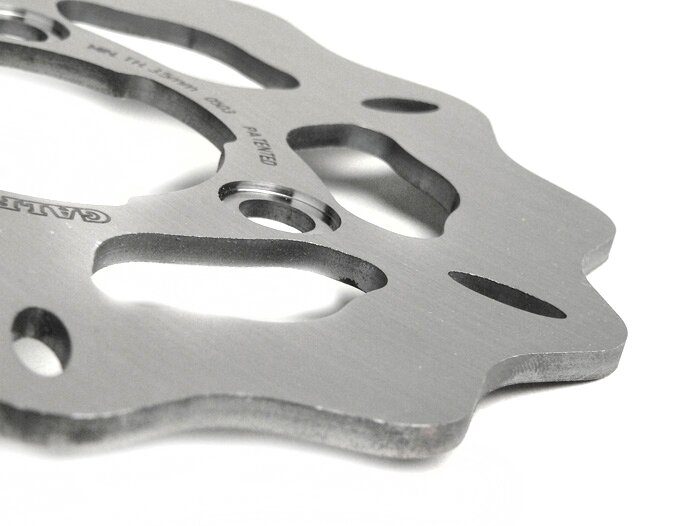

Brake disc -GALFER Extreme Wave.

With the WAVE Extreme you find a radical new interpretation of the brake disc. Besides the super aggressive look, the superior technical aspects are especially impressive. The wave-shaped outer rim offers a much better self-cleaning of pad and disc. Thus the brake abrasion is always optimally dissipated from the disc.

The wave form leads to substantially improved characteristics of the disc under the influence of heat. It expands completely without distortion and always offers the pads a flat contact surface and thus always top deceleration values.

This revolutionary design is copyrighted by Galfer.

The technological sophistication is also reflected in the extraordinarily perfect processing and the use of the best materials.

The WAVE is of course laser-cut and consists of a specially manufactured stainless steel with a high carbon content.

  • Strong initial braking effect with good modularity
  • The surfaces of the brake pads are rubbed off more evenly.
  • The upper edge of the disc can dissipate more heat.
  • The parts of the brake disc can expand around the middle circumference without the disc deforming conically.
  • The weight is less than a classic brake disc.
  • The continuous change of the contact surface between pads and disc prevents the pads from seizing.
  • Barely any fading!
    AI-translation

Rate this article now and let us know what you think.
General
Quantity included in delivery
1

Brake disks
Outside diameter
180 mm
Inner diameter
58 mm
Bolt circle diameter
80 mm
Strength
3.8 mm
Number of screws
3
Fixing hole diameter
10.5 mm
Screw heads
Zylinderkopf
Oversize
nein
Wave
ja
floating bearing
nein
corresponds to Braking
KM01FI
corresponds to Newfren
DF.4025 A
corresponds to HTF
BD 025 ST
corresponds to TRW Lucas
MST 256
corresponds to Ferodo
FMD0034
