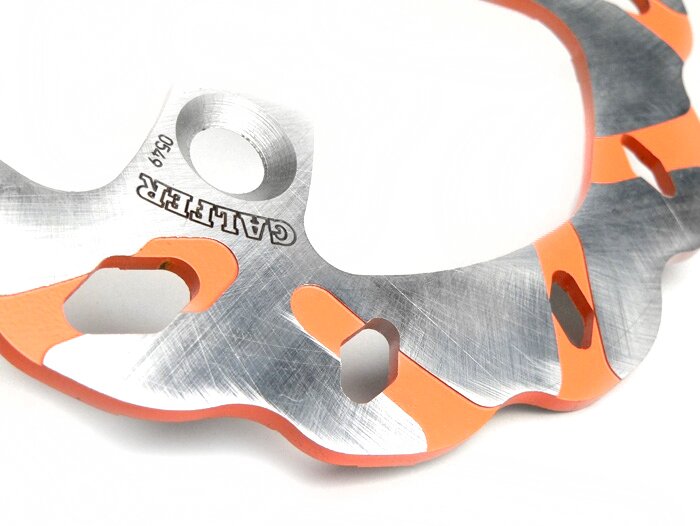

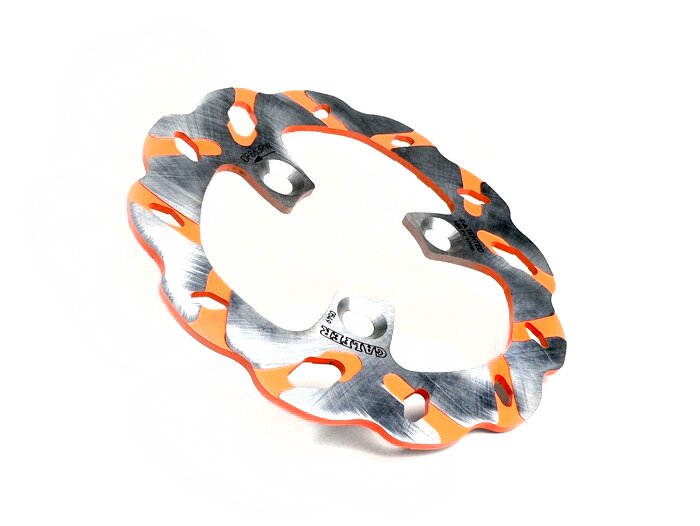

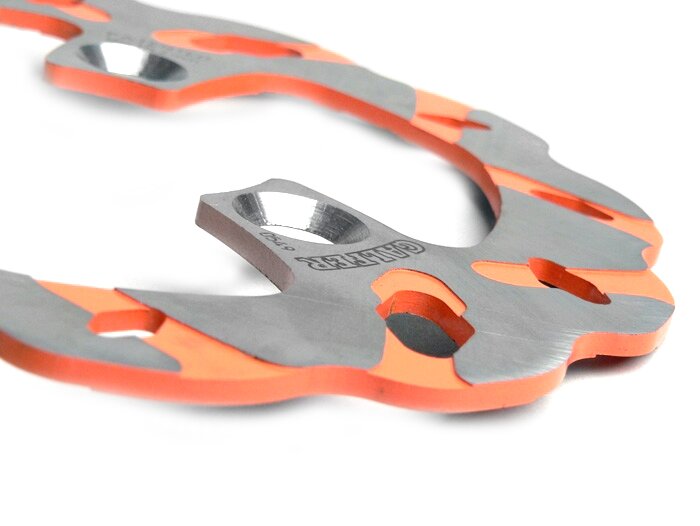

Brake disc -GALFER Extreme Wave.

With the WAVE Extreme you will find a radical new interpretation of the brake disc. In addition to the super aggressive look, especially the superior technical aspects impress. The wavy outer edge provides a much better self-cleaning of the pad and disc. This effect is supported by the Extreme depressions on the tread. Thus, the brake abrasion is always optimally diverted from the disc.

The wave shape results in significantly improved properties of the disc when exposed to heat. Thus, it expands completely without distortion and always offers the pads a flat contact surface and thus always top deceleration values.

This revolutionary design is copyrighted by Galfer.

The technological sophistication is also reflected in the extraordinarily perfect processing and the use of the best materials.

So, of course, the WAVE Extreme is laser cut and is made of a specially fabricated stainless steel with a high carbon content.

  • Strong initial braking effect with good modularityThe
  • surfaces of the brake pads are worn more evenly.
  • The upper edge of the disc can dissipate more heat.
  • The parts of the brake disc can expand around the central circumference without conical deformation of the disc.
  • The weight is less than that of a classic brake disc.
  • The continuous change in contact area between pads and disc prevents pad seizure.
  • Hardly any fading!AI-translation

Rate this article now and let us know what you think.
General
Quantity included in delivery
1

Brake disks
Outside diameter
180 mm
Inner diameter
58 mm
Bolt circle diameter
80 mm
Strength
3.5 mm
Number of screws
3
Fixing hole diameter
10.5 mm
Screw heads
Senkkopf
Oversize
nein
Wave
ja
floating bearing
nein
corresponds to Braking
PE02FI
corresponds to EBC
MD925D
corresponds to Newfren
DF.4043 A
corresponds to HTF
BD 043 ST
corresponds to TRW Lucas
MST261
corresponds to Galfer
DF863RW

OEM numbers (for comparison purposes only)
Peugeot:
734902, 744573
