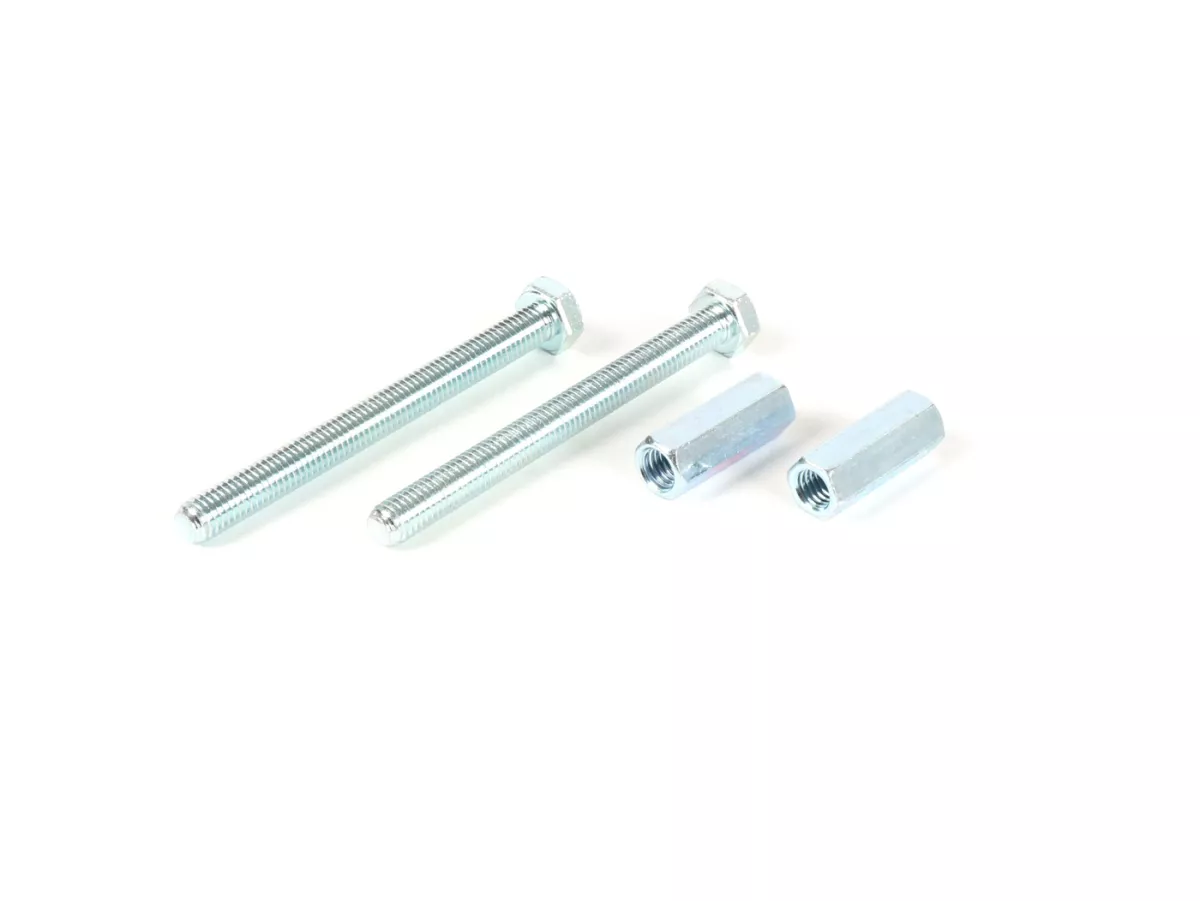

The following components are included in this set:
Spacer nut -M8x24mm-

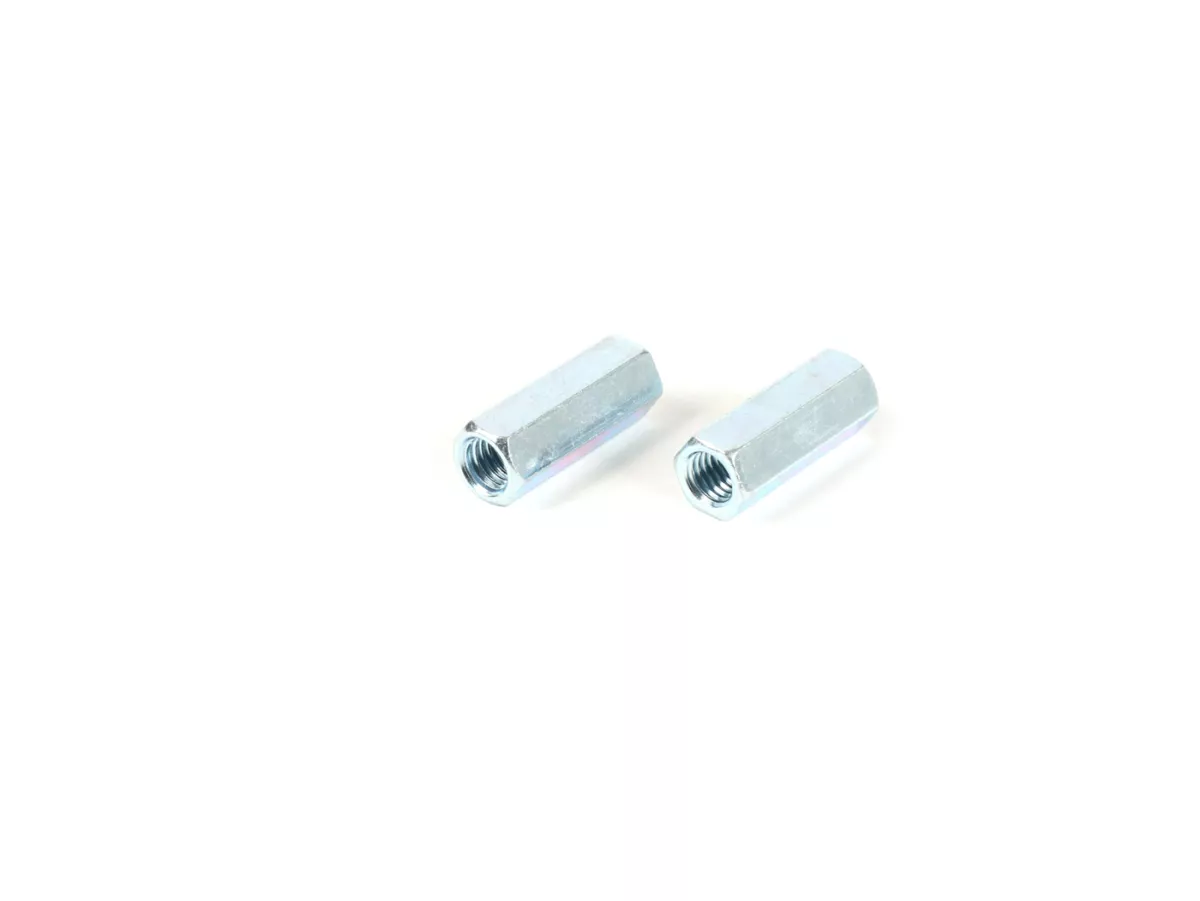

2xSpacer nut -M8x24mm-

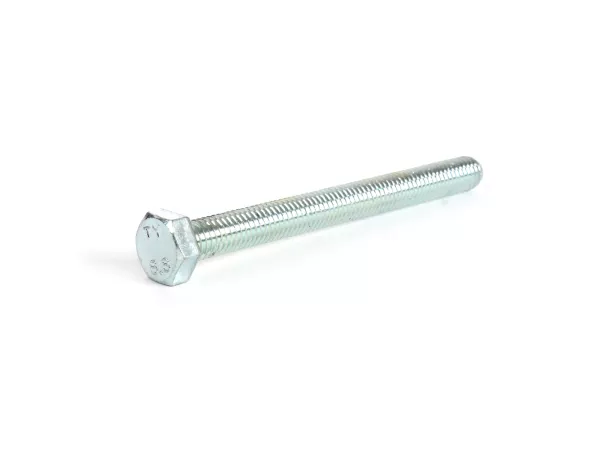

Hex screw -ISO 4017- M8 x 85 (stiffness 8.8) - used for clutch compressor set BGM Superstrong Lambretta

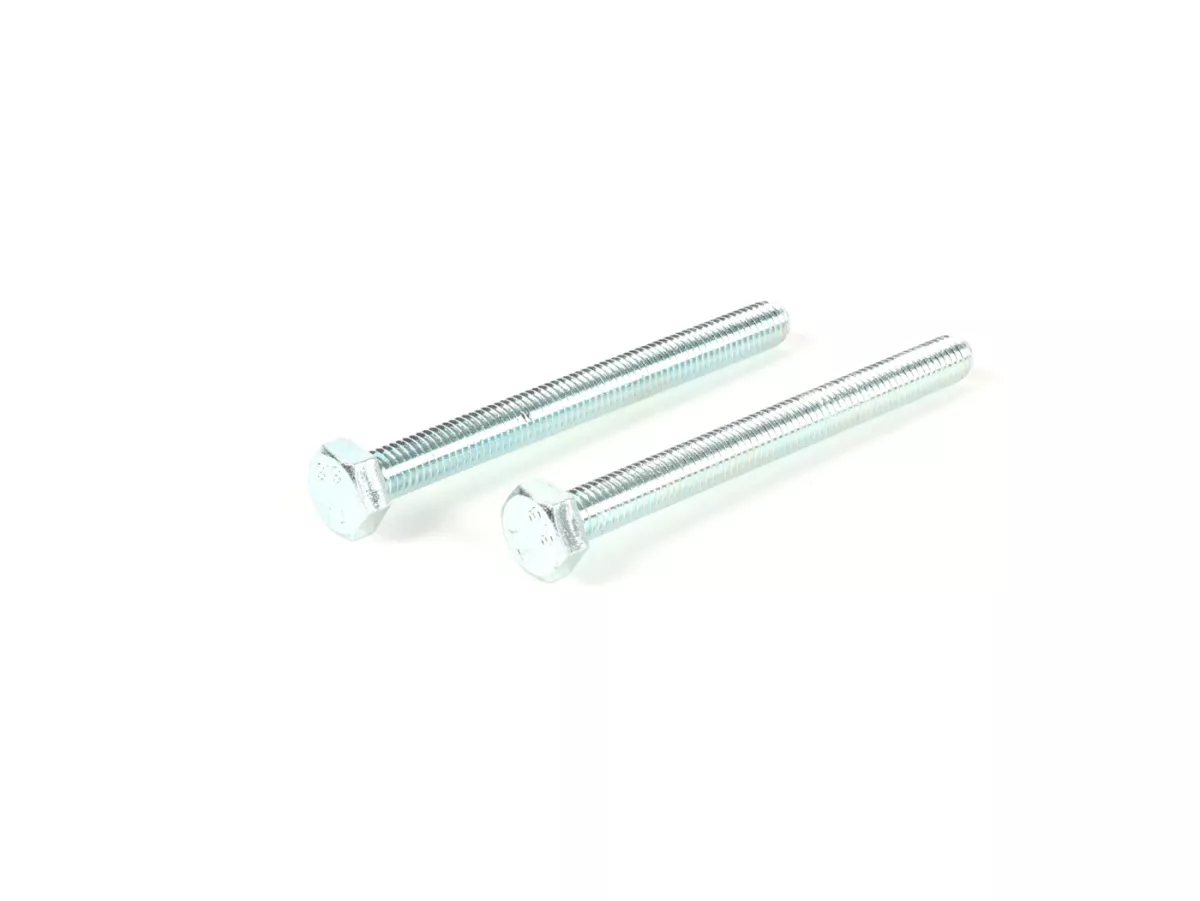

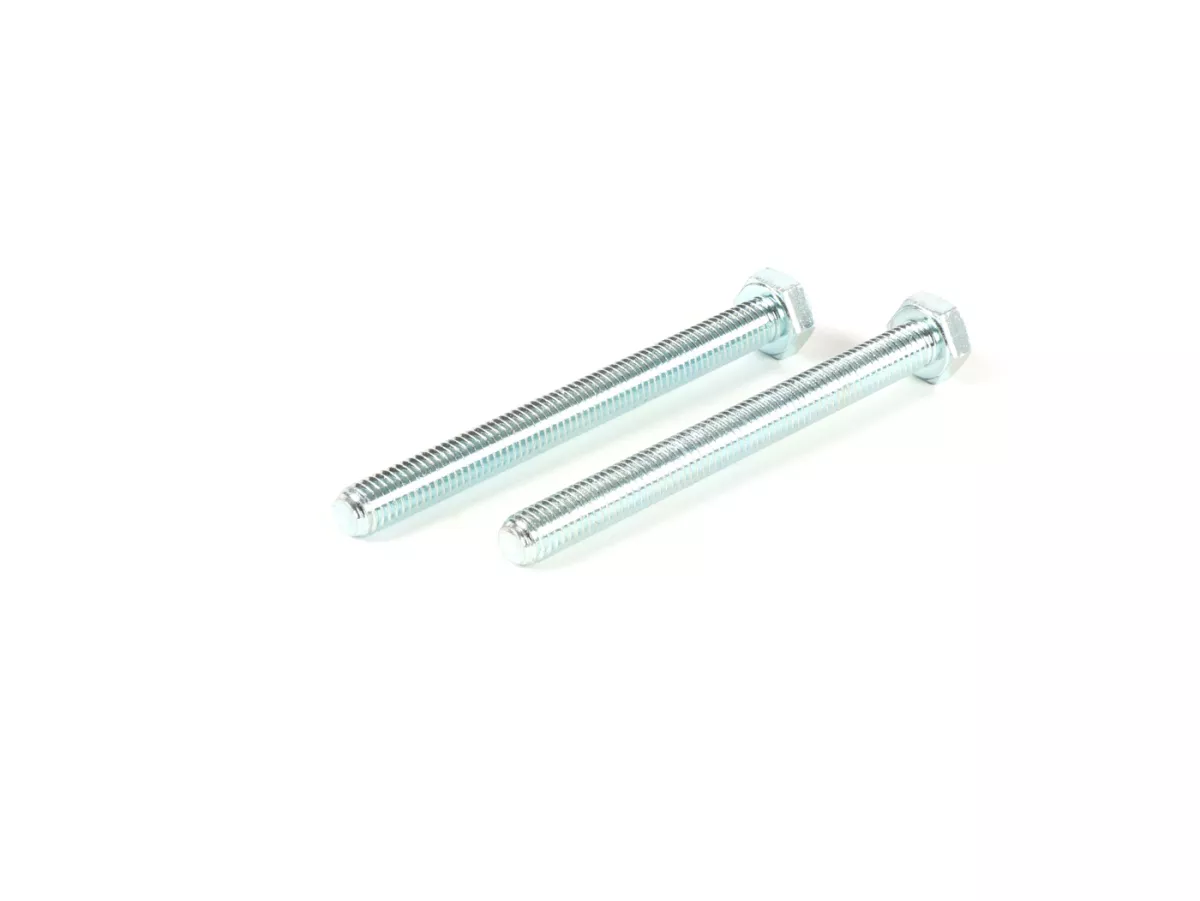

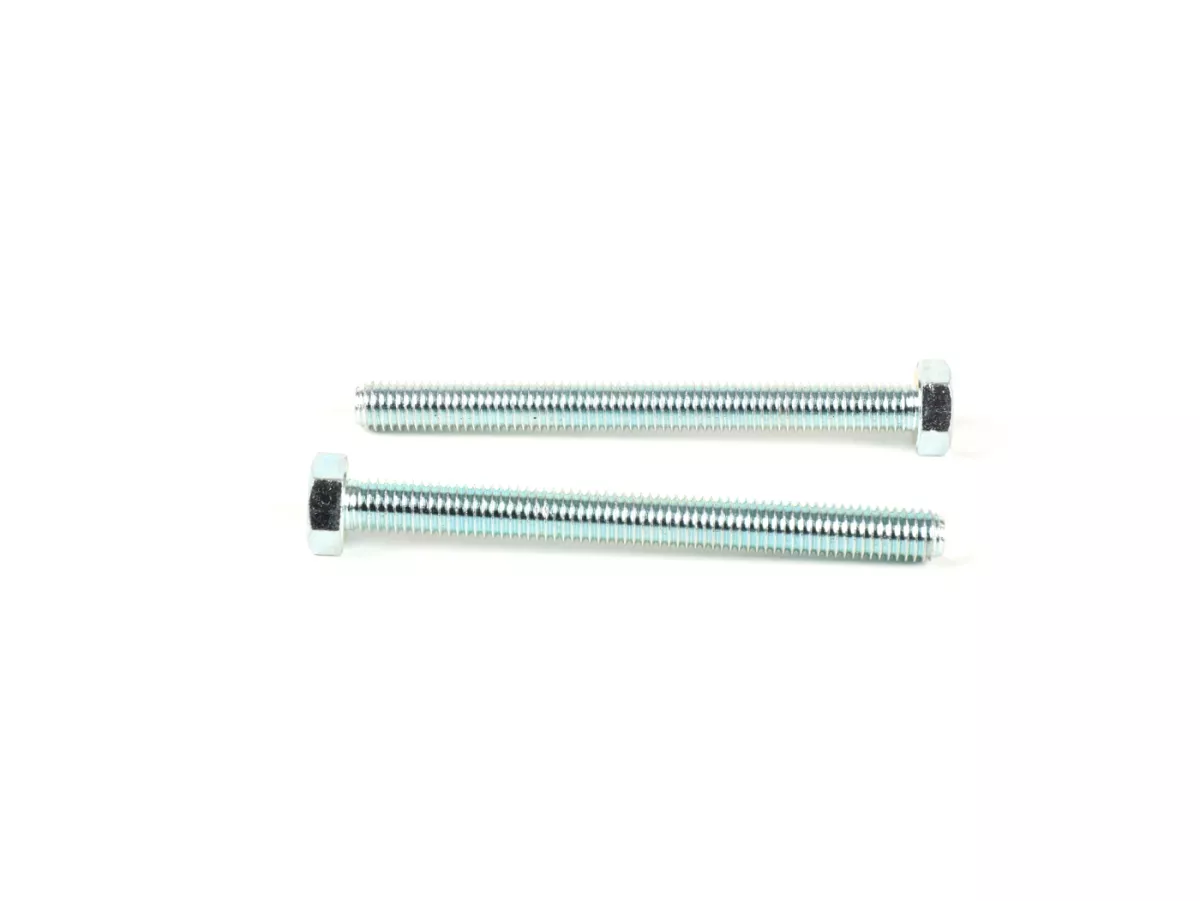

2xHex screw -ISO 4017- M8 x 85 (stiffness 8.8) - used for clutch compressor set BGM Superstrong Lambretta
4,90 € *
The BGM Superstrong for Lambretta already has a built-in clutch compressor system.

With only two screws and long nuts, the Superstrong clutch can be easily compressed. On the front side of the coupling spider, two of the legs are marked with a dot at the bottom of which is the threaded hole for the screw.

This is where the screws for pretensioning the base plate are threaded in.

The cut-out in the centering aid provides space for the high nuts, which are used to pretension the coupling for assembly.

Once the coupling is pretensioned, the centering aid can simply be pulled out.

See also assembly aid ('downloads')

(2018101US)


AI-translation

Rate this article now and let us know what you think.
General
EAN
4251389106593
