Newfren Item number: 9021007ST
Newfren
185,00 €*
available immediately
Shipping weight 1,41 kg

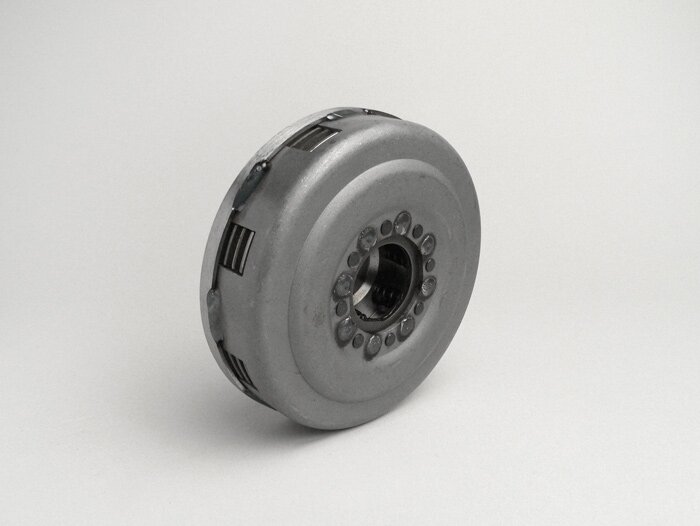

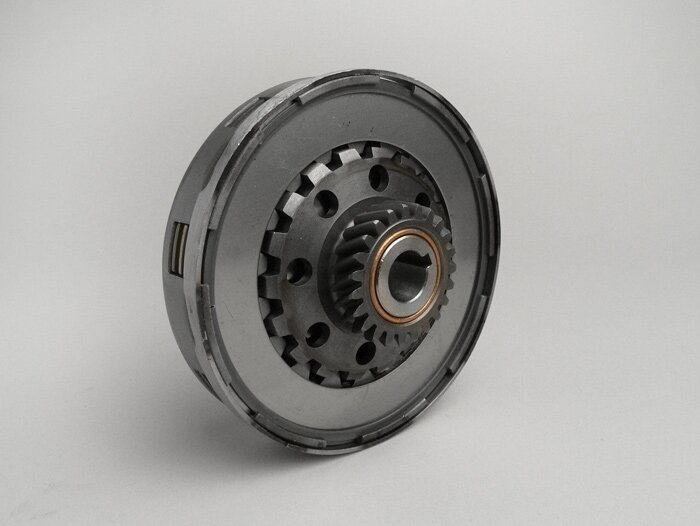

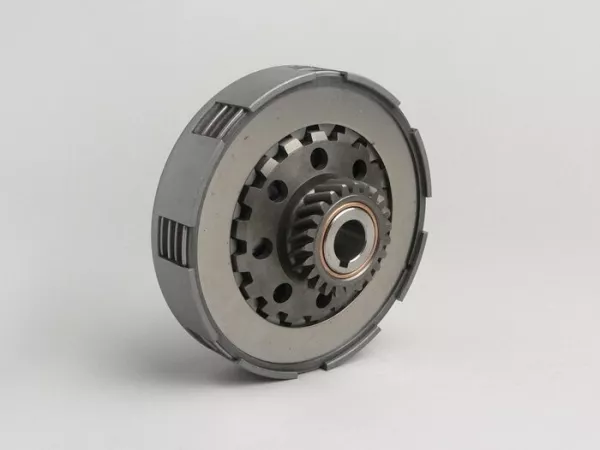

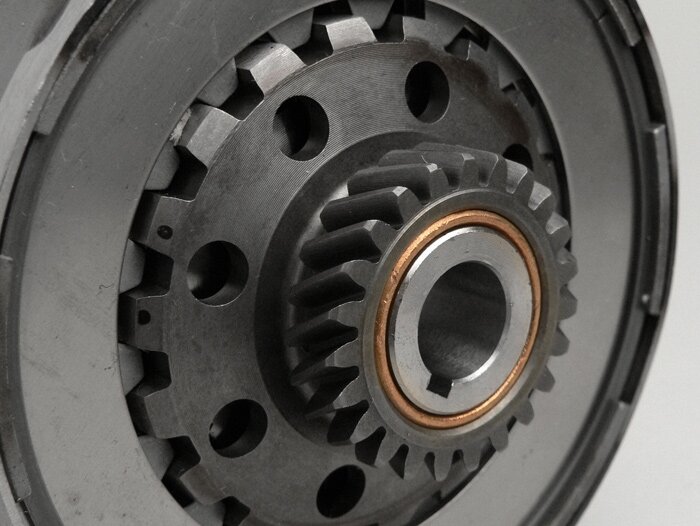

Clutch -NEWFREN Vespa Cosa2 (RF) - 4-disc
Original reproduction clutch from NEWFREN for the Vespa Cosa models. The clutch
can also be installed in PX engines depending on the number of clutch pinion teeth.
There is this clutch with different pinions to translate if necessary an engine with it
longer or shorter. It is a 4 disc clutch and a new nut/spring washer should be used
instead of the castle nut variant.
This type is reinforced with a metal ring around the basket to accommodate higher torques
. The Cosa clutch served as the basis of the BGM Superstrong clutches.


(TW100123)


AI-translation

Rate this article now and let us know what you think.
Clutch (Largeframe, Wideframe)
Clutch pinion height
9.5 mm
Inner diameter
108 mm
Covering material
Kork
Friction disk thickness
3.5 mm
Reinforced clutch basket
ja
Manufacturing process Basket
tiefgezogen
Basket diameter (inside)
108.8 mm
Basket diameter (outside)
115 mm
Number of steel disks
3
Number of friction disks
4
Number of springs
8
Teeth Clutch pinion
23

Gearbox shift scooter
Number of teeth small primary gear
23
Combinable primary wheels
64 Zähne schrägverzahnt (BGM PRO), 65 Zähne schrägverzahnt (BGM PRO, Piaggio), 64 Zähne schrägverzahnt (Bollag Motos, Stoffi's), 65 Zähne schrägverzahnt (Bollag Motos, Stoffi's)
