Condenser -SC- Piaggio Bravo, Ciao, Si, Boxer, EC1, Citta, SuperBravo - External

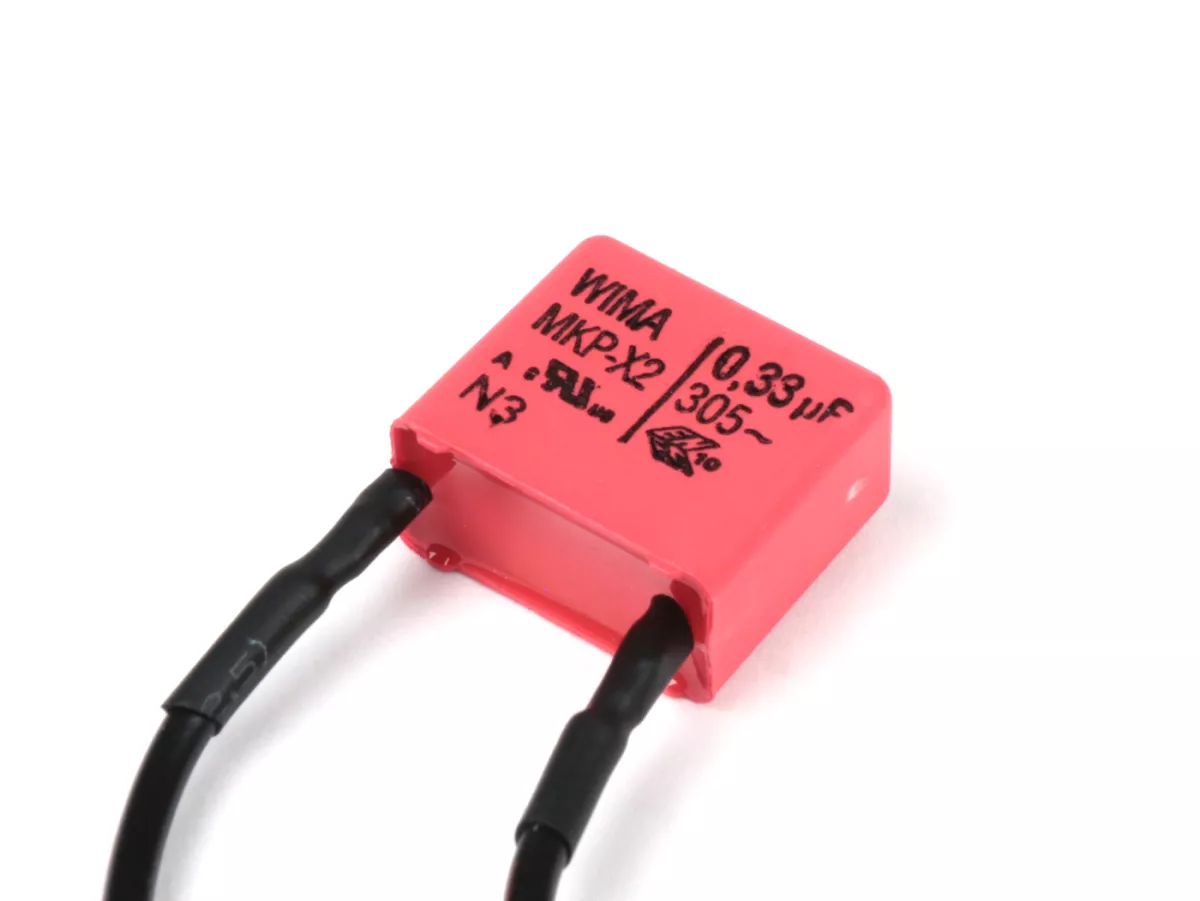

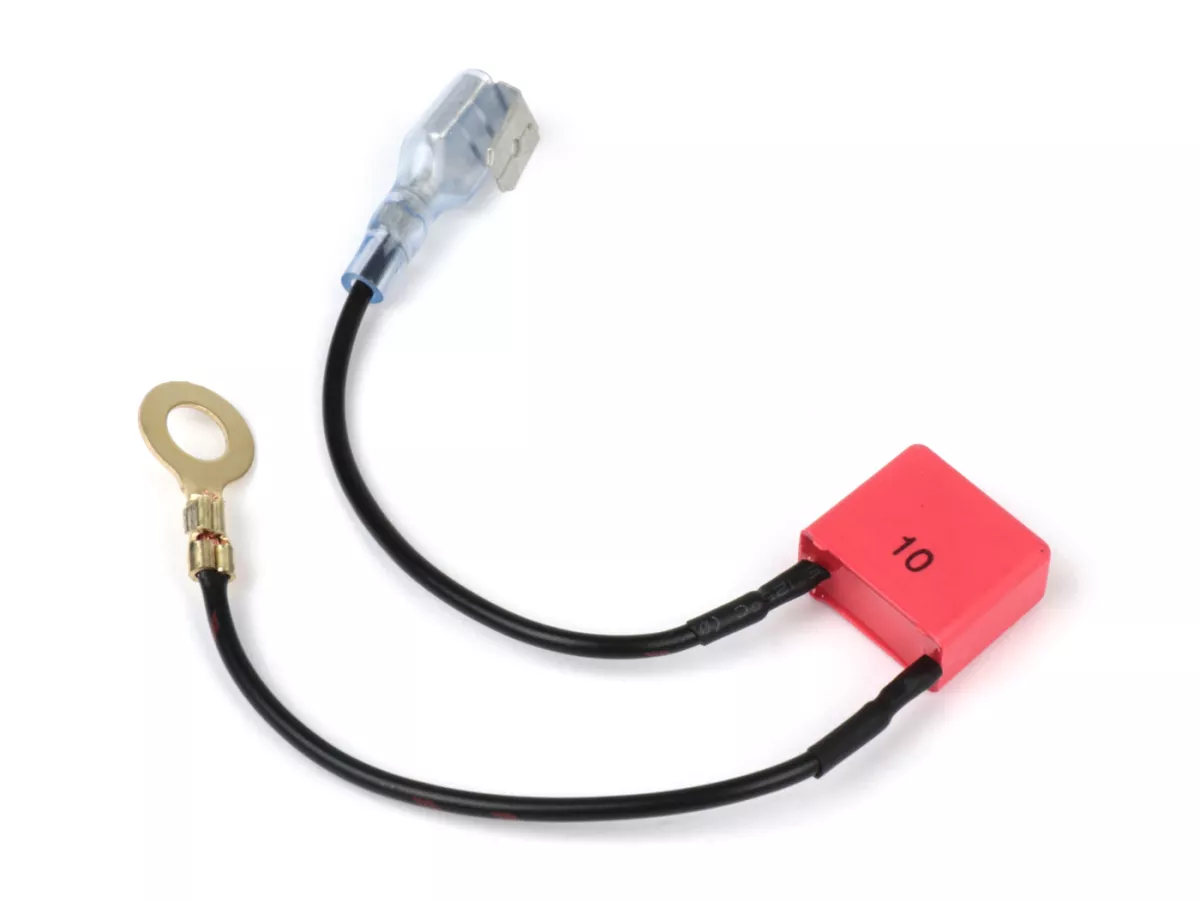

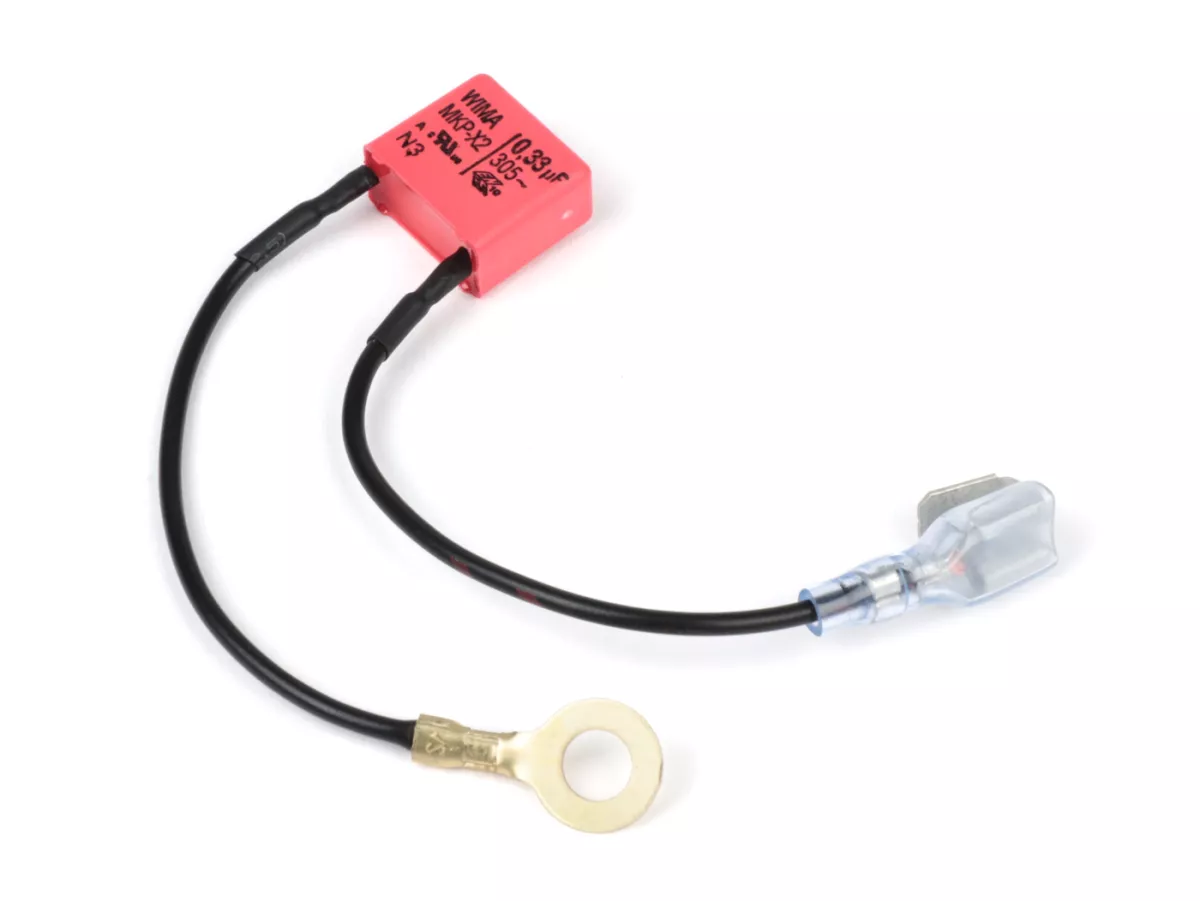

External capacitor for Piaggio Bravo, Boxer, Ciao and Si.

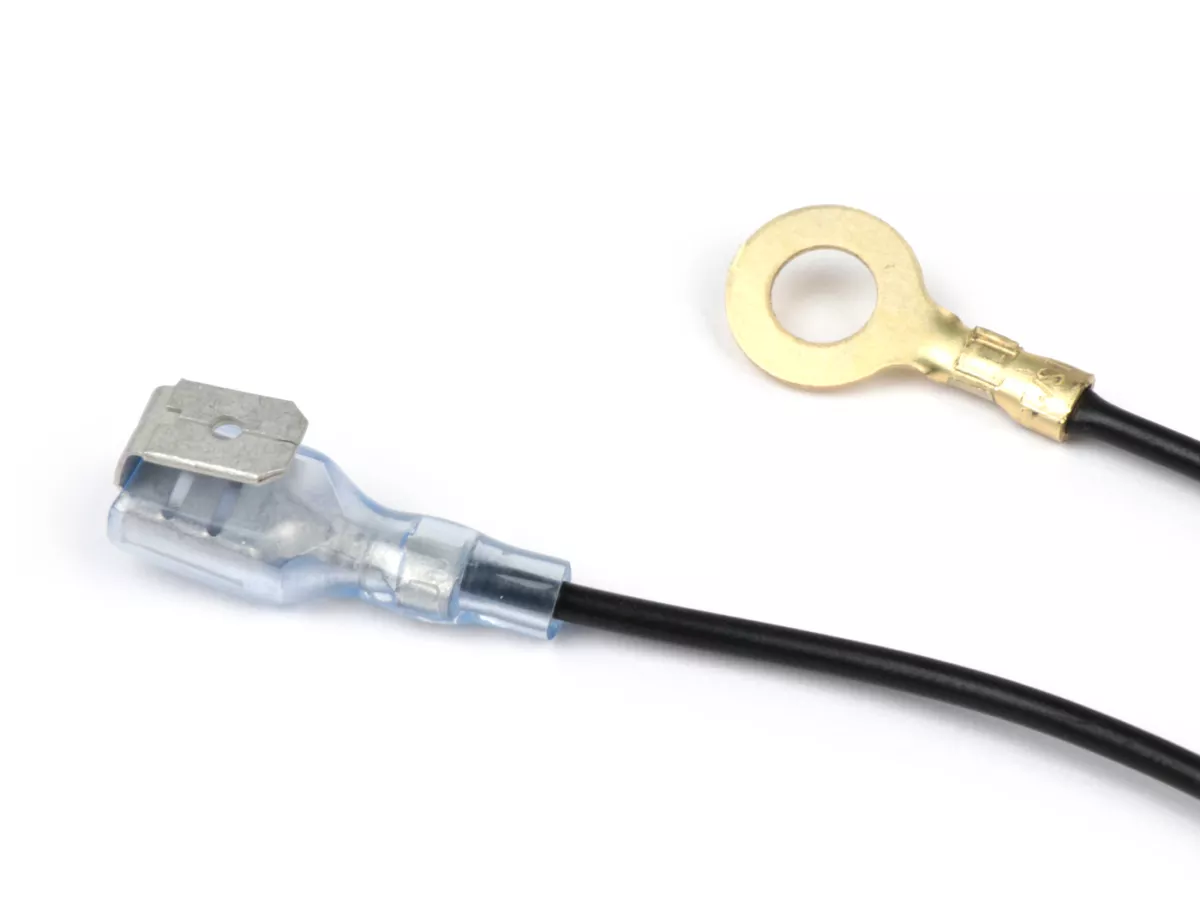

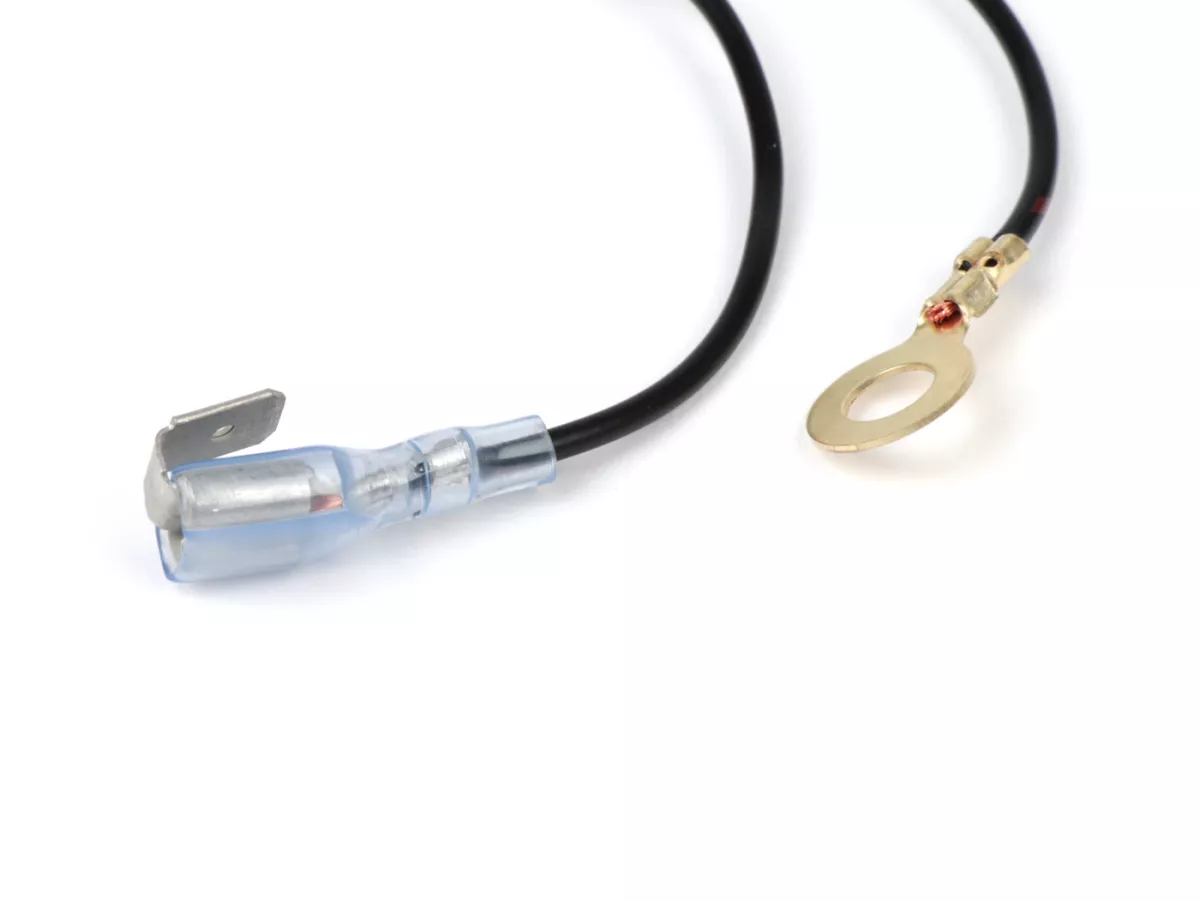

The old cup capacitor is only needed as a holder for the lubrication felt. The external capacitor is screwed by means of the eyelet to the holder of the ignition coil and clamped with the cable lug directly between the ignition contact and ignition coil.
The capacitor can be fixed by means of double-sided adhesive tape on the frame.
The capacitors are soldered for us at a recognized workshop for people with disabilities._{AI-translation}
