Tameni Item number: 3331874

Crankshaft -TAMENI Standard (rotary valve) 57mm stroke- Motovespa 200 DS (Femsa)

199,00 €*

available immediately

Shipping weight 1,95 kg

Information on product safety

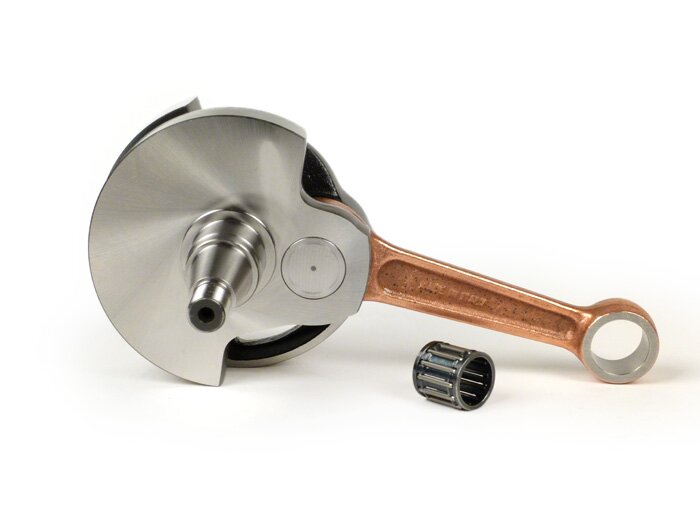

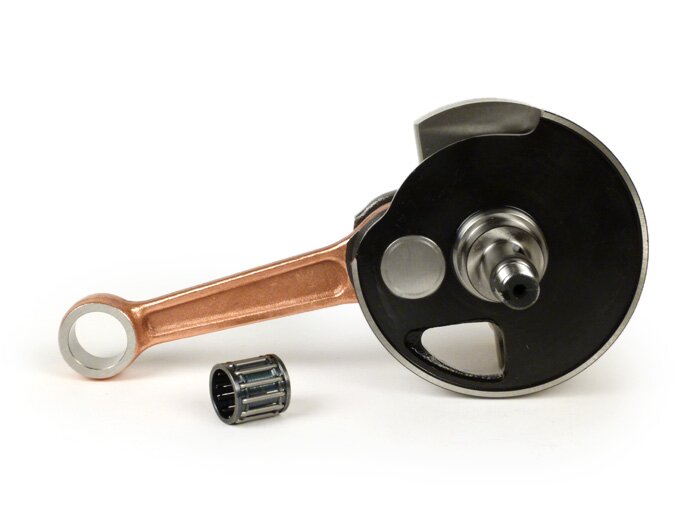

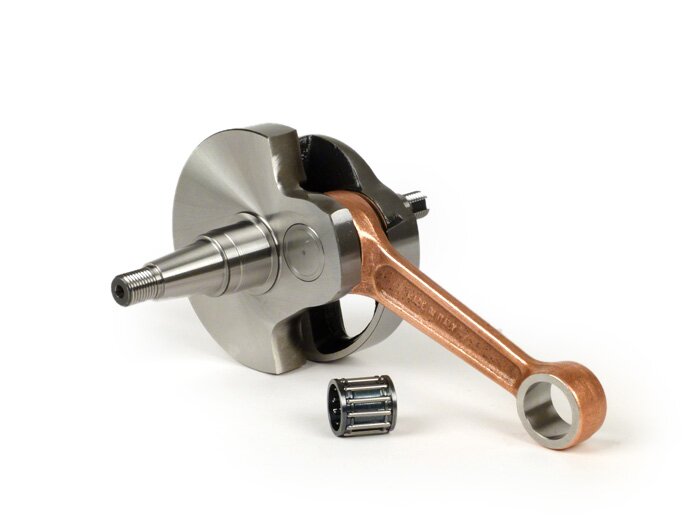

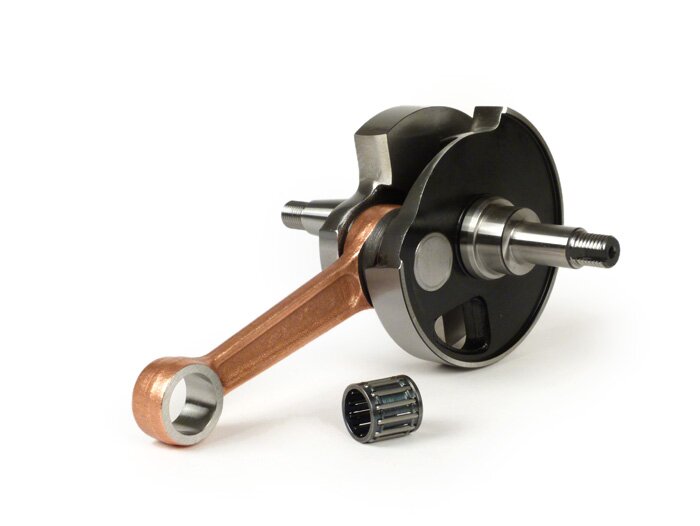

Crankshaft -TAMENI Standard (rotary valve) 57mm stroke- Motovespa 200 DS (Femsa)

Since more and more Motovespas (license construction from Spain) are also restored, we offer you here for the engines with Femsatronik ignition a replacement crankshaft.

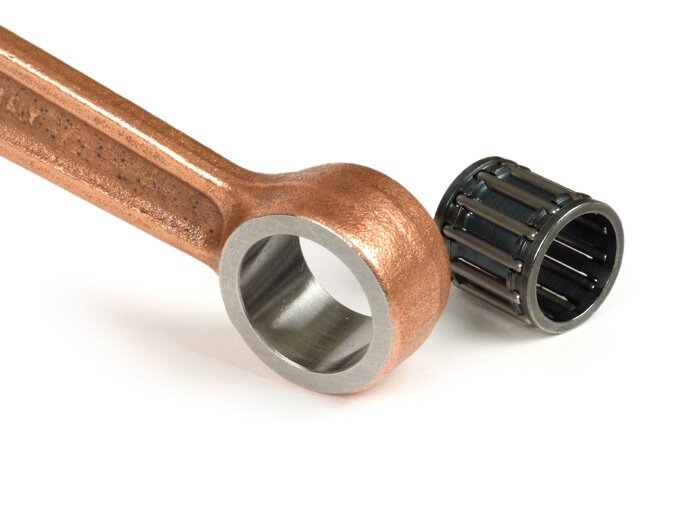

Delivered from Tameni (Italy) with connecting rod bearing

(TW060123)

_{AI-translation}

Rate this article now and let us know what you think.

Rate this product now

Ball bearing

Dimensions

16x20x20mm

Piston pin

Diameter

16 mm

Crankshafts

Stroke

57 mm

Crankcase must be spindled

nein

Motor housing must be modified

nein

Full cheek crankshaft

nein

Diameter of sealing ring seat on alternator side

24 mm

Diameter of sealing ring seat on drive side

31 mm

Connecting rod

Connecting rod length

110 mm

Connecting rod eye top diameter

20 mm

OEM numbers (for comparison purposes only)

Scooter Center:

3331874

Motovespa:

E.4337, E4337

Motovespa (ES) 200 DS (Engine 9DS)
