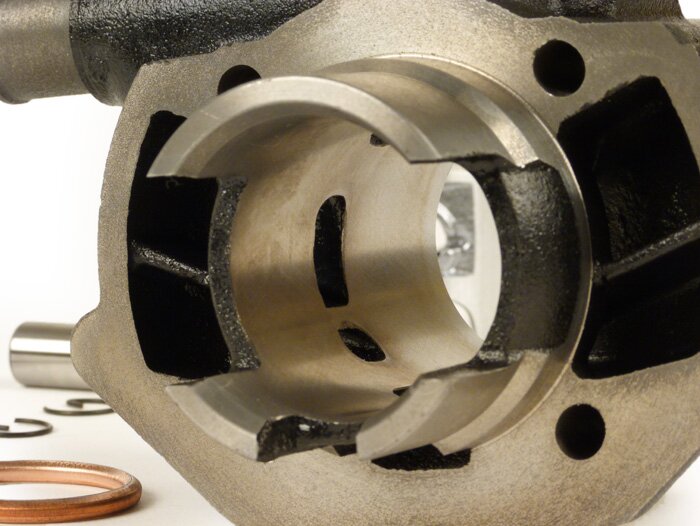

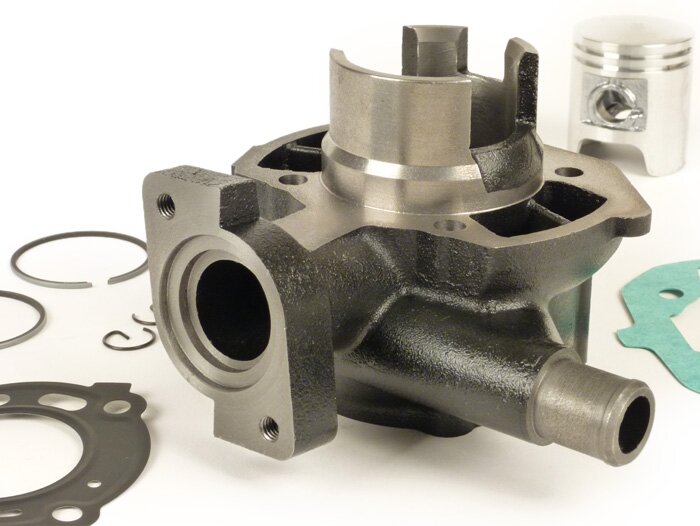

BGM 50ccm spare cylinder. Replacement for all water-cooled Peugeot Jet Force from 2013 and Speedfight 3 and Speedfight 4 scooters.

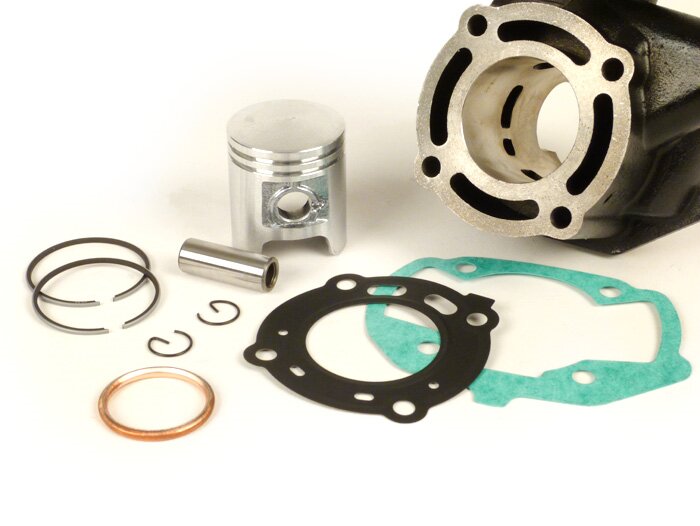

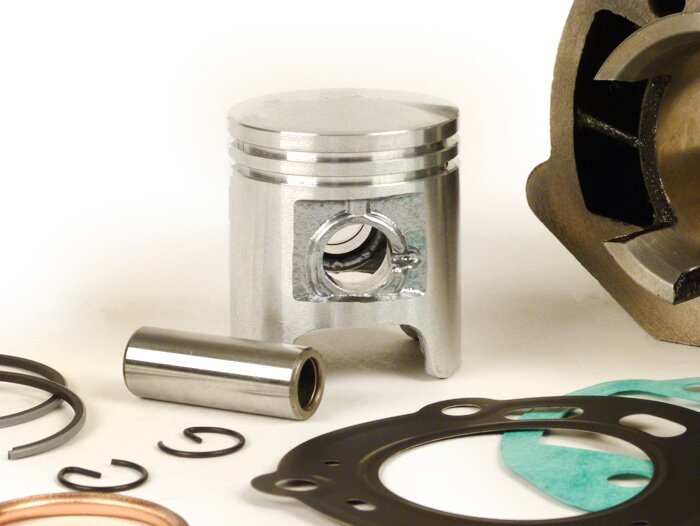

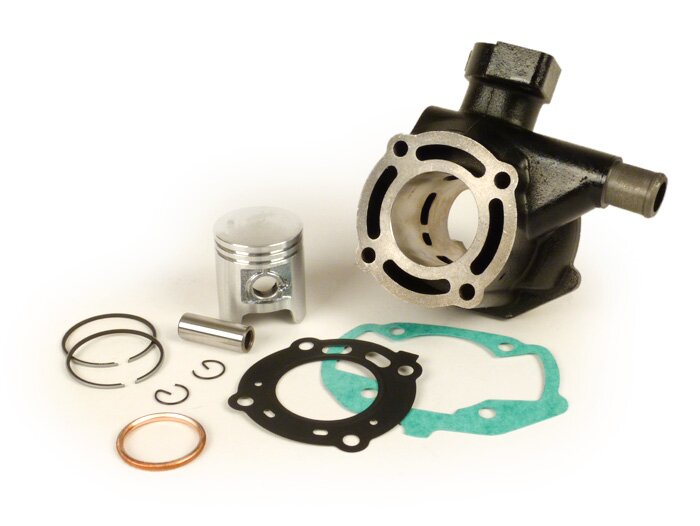

The BGM cylinder is delivered in a kit with piston, piston rings and gasket set. The original cylinder head of the Peugeot Speedfight 3 & 4 LC and Jetforce C-Tech can be used further on.

Replaces the Peugeot OEM number T 777327 00.
AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  07/26/2017

Teile ok, rasch geliefert

Piston pin
Diameter
12 mm

General
Performance class
Standard
EAN
4251389101765

Cylinder
Drill hole
40 mm
Type of cooling
flüssigkeitsgekühlt
Displacement
49.13 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß
Cylinder gasket set included
ja
Cylinder head included
nein
Outlet shape
1-teilig (oval)
Exhaust assembly
Flansch
Flange type
2-Schrauben
Distance between exhaust studs
54 mm
Threaded exhaust studs
M6
Number of boost ports
1
Number of transfers (incl. boost ports)
5

Crankshafts
Stroke
39.1 mm

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,5mm

Piston clips
Piston clip type
G-Typ
Wire gauge Piston clip
1,0mm

OEM numbers (for comparison purposes only)
Peugeot:
777327
