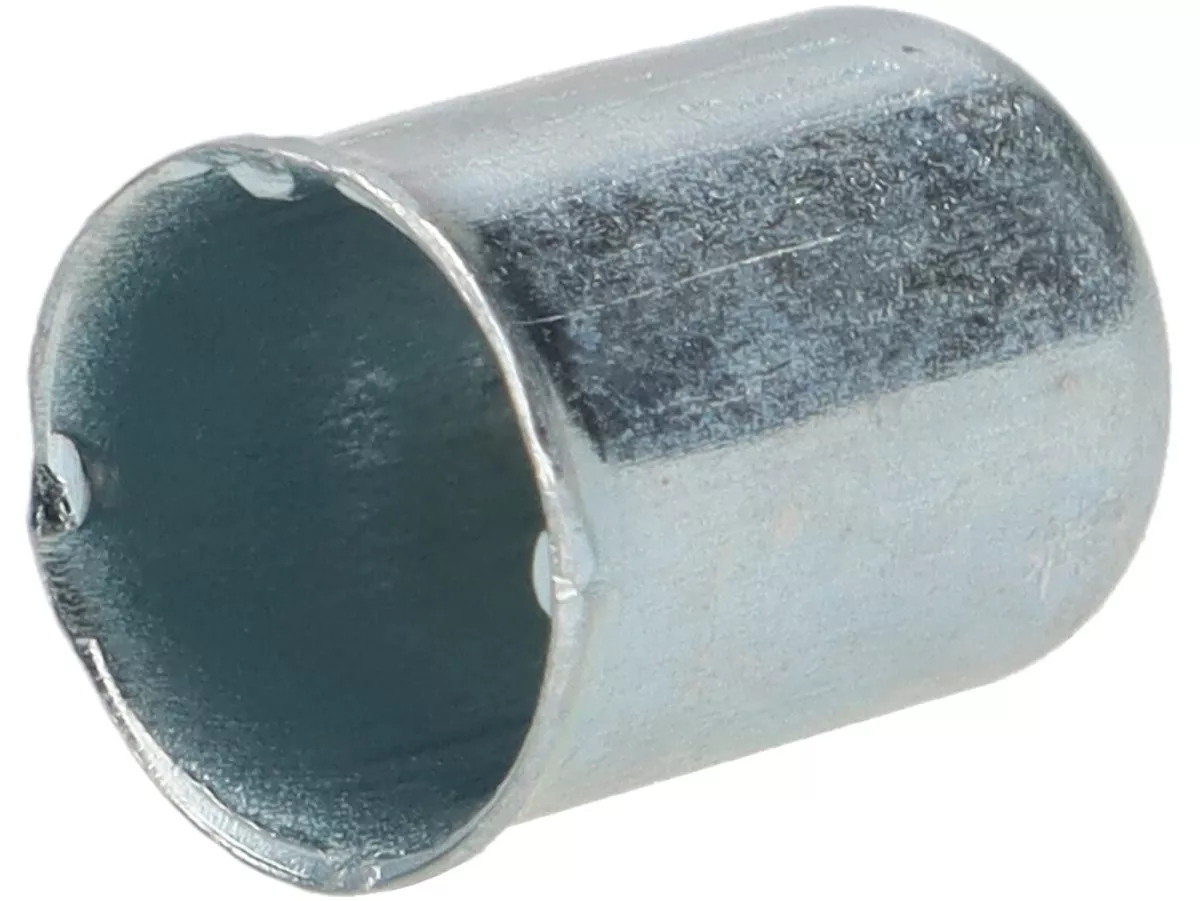

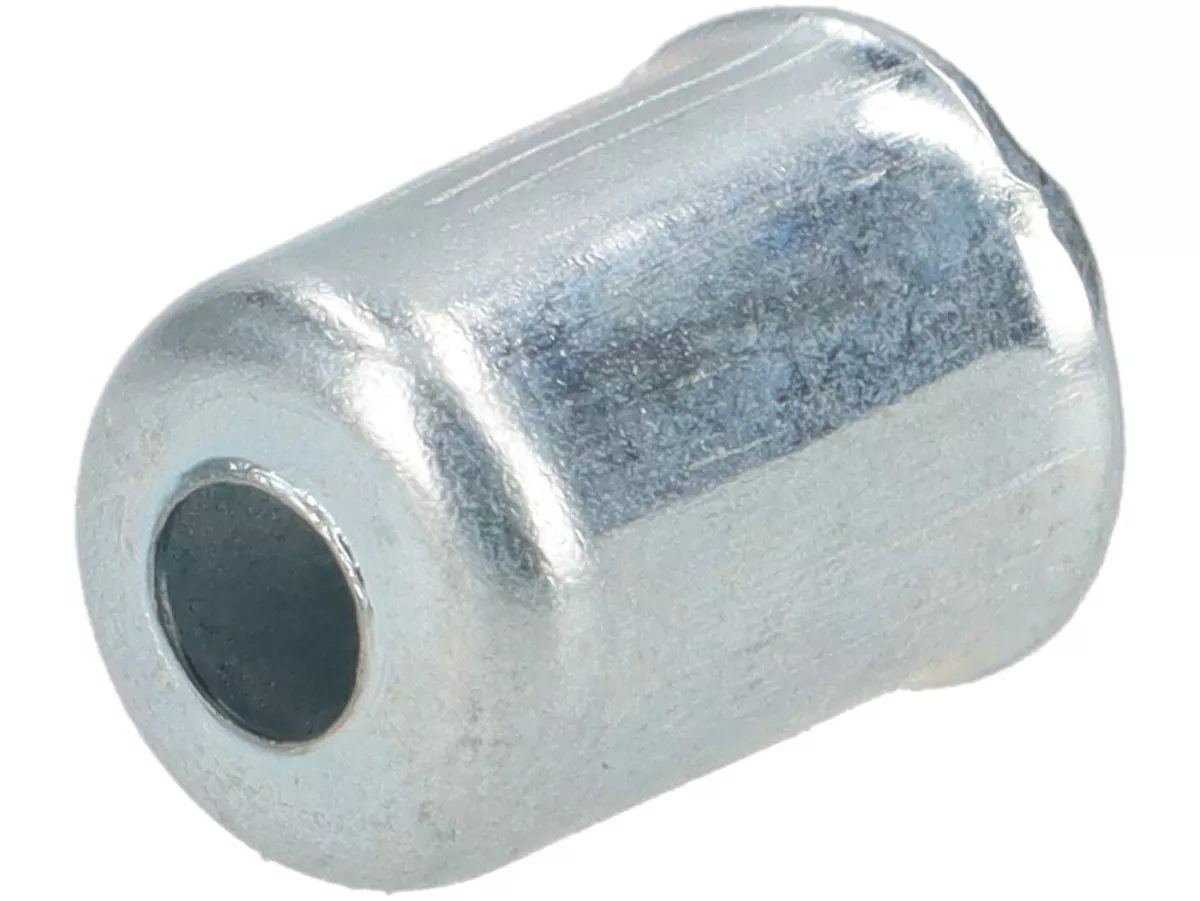

We specify the inside diameter of the end caps.
This means that the right end cap can be selected quickly by measuring the outer Bowden cable sheath.
The outer diameters are between 0.6 and 1.0 mm larger
:Øinner | Øoutside |
4mm | 4,6mm |
5 mm | 5,7mm |
6mm | 6,6mm |
7mm | 8,0mm |
The outer diameter is important for the correct choice of adjusting screw or end sleeve.
