Athena Item number: 3820024
Athena
1 Rating
11,90 €*
available immediately
Shipping weight 0,06 kg
All engine gaskets should always be replaced during an overhaul. The easiest way to do this is to lubricate the gaskets with a little grease to make them stick to the housing and prevent them from being bent or damaged during installation. Sealing compound is only necessary if the housing is defective (scores in the sealing surface or similar). If a healthy motor housing drips nevertheless, it is usually strained or crooked. A strained housing is caused by unevenly tightened housing screws. Ideally the housing halves should be tightened evenly (crosswise!) with a torque wrench. The maximum value here is 6-8NM according to Piaggio - specification.
AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  11/07/2014

Alles ok

Seals
Number of seals
10

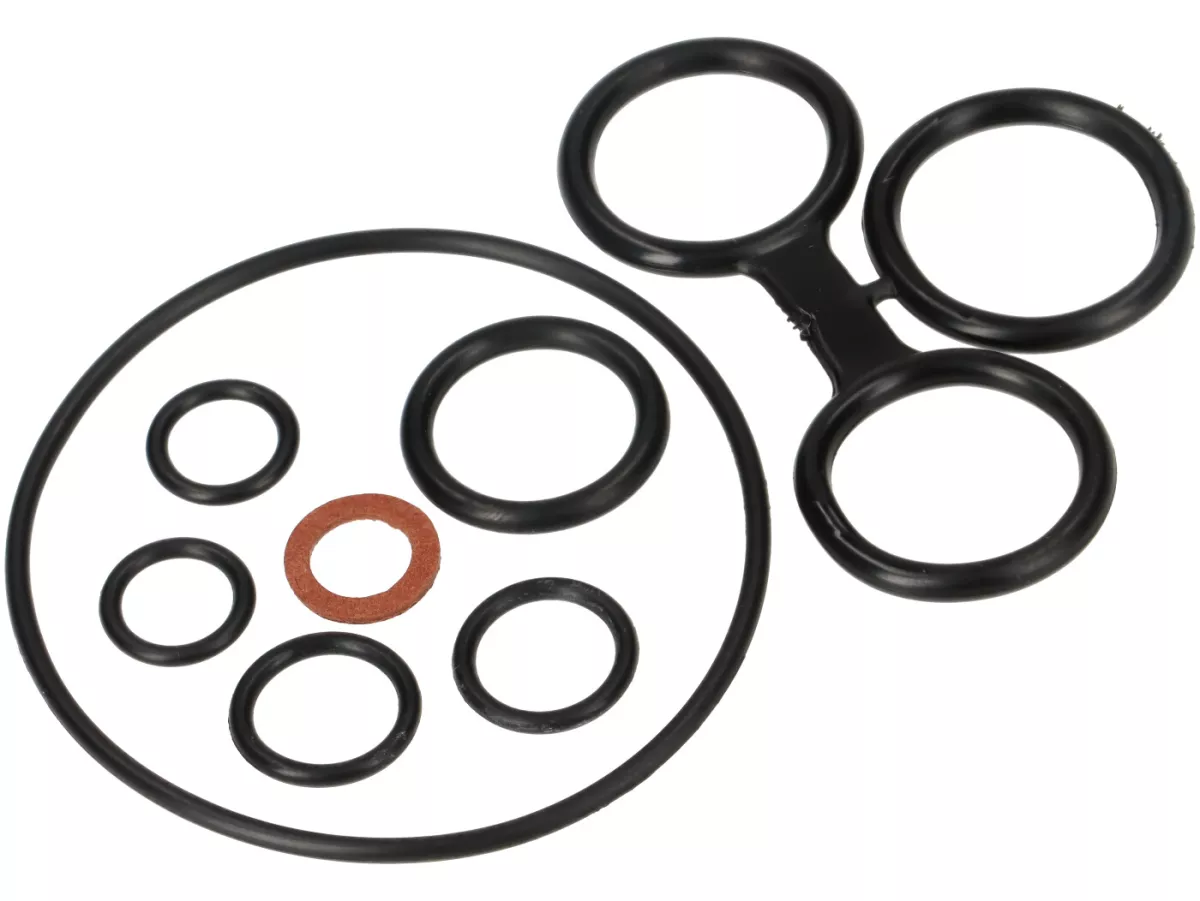

O-ring included in the scope of delivery
ja
Number of O-rings
5
Shaft seals included in the scope of delivery
nein
Number of shaft seals
0
Head gasket included in scope of delivery
nein
Foot gasket included in the scope of delivery
ja
Diaphragm seal included in the scope of delivery
nein
Valve stem seals included in the scope of delivery
nein
Squeeze ring included in the scope of delivery
nein

OEM numbers (for comparison purposes only)
Piaggio:
154546
Scooter Center:
3820024
