Fork braces with mudguard bracket -STAGE6 R / T- Yamaha Aerox, MBK Nitro

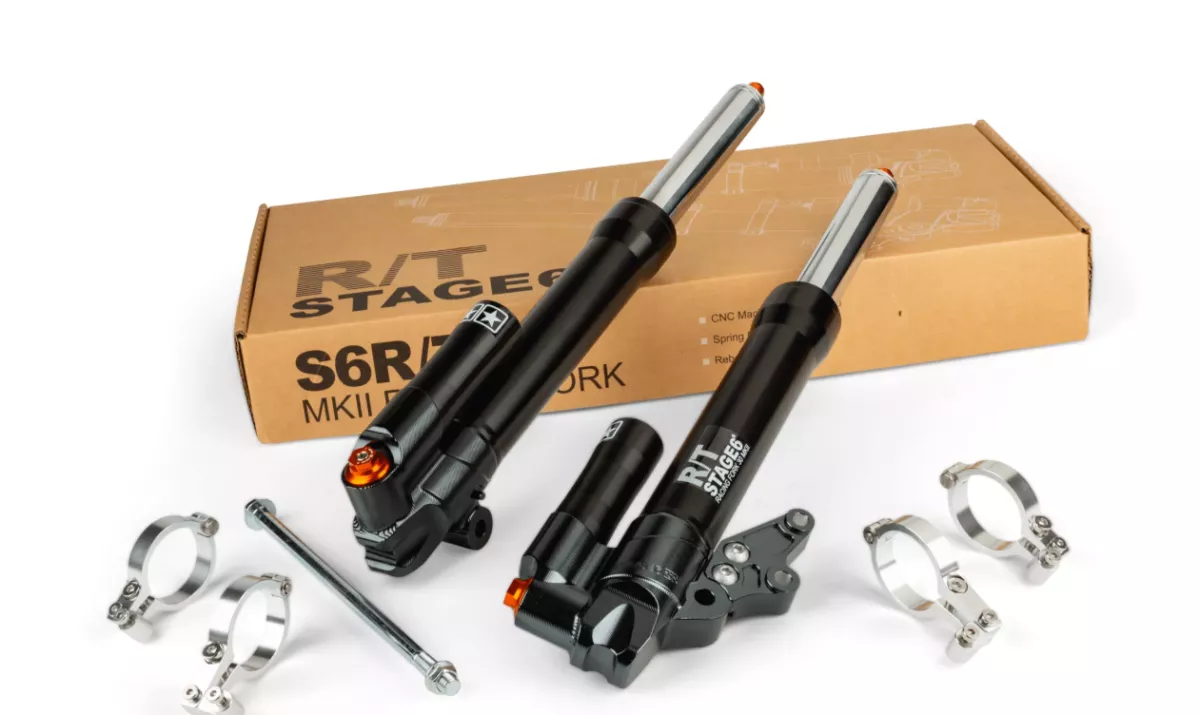

Stage6 R/T Racing fork MK 2 with mudguard clamps
Stage6 R/T proudly presents the MK2 version of its racing fork for the Yamaha Aerox scooter. With the Stage6 R/T Racing Fork MK 2, Stage6 once again sets new standards in terms of performance, looks and customization options for Yamaha Aerox / MBK Nitro riders.

Building on the success of the MK1 version, further work has been done on performance and design to bring an even more powerful fork to the market for demanding riders.

Stage6 R/T fork MK 2 with numerous adjustment options
The MK 2 fork offers a wide range of adjustment options to enable perfect tuning to the individual weight, the track and the intended use. Both the spring preload and the rebound can be precisely adjusted to ensure optimum fork and suspension performance.

Spring preload via an adjustment wheel at the top of the fork legs
Rebound via an adjustment wheel at the front of the fork legs
Design Stage6 R/T Fork MK 2
The two fork legs impress with an elaborate CNC-milled body, are anodized in black / grey and feature orange anodized accents in the rebound adjustment and spring preload area.

The high-quality racing fork from Stage6 R/T is also equipped with external reservoirs, which ensure improved performance and consistency under the most demanding conditions.

The Stage6 logo is discreetly attached and ensures a simple yet sporty look.

Stage6 R/T fork MK 2 - Plug & Play installation
The simple Plug & Play installation on Yamaha Aerox allows easy installation without adapters or complex modifications. Original parts such as brake caliper and brake disc can still be used, but for maximum performance the combination with the oversize brake disc (either 250mm or 280mm) and the 4-piston brake caliper including adapter is recommended.

The bars have a diameter of 30mm and can also be fitted to other scooters with little effort (Malaguti F12, Yamaha Jog, BW's...).
In most cases, the adaptation work involves spacer sleeves (to center the rim correctly between the bars) and adapter sleeves for the fork bridge.
If your scooter does not have an original Brembo brake calliper, the brake calliper must be replaced with a radial 4-piston brake calliper with adapter. For optimum installation, we recommend checking that the triple clamp is in perfect condition before installing the Stage6 R/T fork.

The Stage6 fork legs are fitted here with brackets for the front mudguard so that you can continue to use the existing original part. Please note that the fit of the mudguard may vary depending on the scooter model. The mudguard clamps are freely adjustable and can therefore be used universally on all scooter models.

Technical details Stage6 R/T MK2 fork:

- 2x CNC fork legs
- Stanchions: 30mm diameter
- With external nitrogen-filled reservoirs
- 400 mm free length (distance from wheel axle to upper mounting point)
- Approx. 80 mm usable stroke
- 20 PSI nitrogen
- 115 ml oil per leg
- Fork oil 5W
- Spring preload adjustment on the top
- Rebound adjustment on the bottom
- Including wheel axle
- Including mudguard bracket
