Siem Item number: COD109LED
Siem
Technology Modern LED with classic glass lens
On-board power supply 12 V AC via enclosed AC/DC voltage converter
Light output up to 7,000 lumens, 25 W, 2.4 A
Color temperature 6000 K (cool white)
Format Ø 146 mm, glass with DGM approval mark
Installation Plug and play, no original lamp holder required
Manufacturer: SIEM SIEM Italy - long-standing Piaggio partner
Compatibility PX old, PX Lusso, PX Disc, PX '98, PX MY 2011-2016
129,00 €*
available immediately
Shipping weight 0,7 kg
Unfortunately, this product cannot be delivered to your country!

SIEM LED headlight Ø 146 mm - Vespa PX old/Lusso/Disc/'98/MY (1977-2016), 12 V AC with converter, glass lens with DGM approval mark

12 V AC vehicle electrical system AC/DC voltage converter included up to 7,000 lumen / 25 W 6000 K cool white Glass lens DGM32530PMXLA Ø 146 mm Plug and Play SIEM Italy / Piaggio partner

Concept

The SIEM LED headlight combines modern LED light with the classic Vespa look. It runs on the 12-volt AC vehicle electrical system and is supplied with a stable power supply via the AC/DC voltage converter supplied - for a bright, homogeneous light image with low power consumption.

Design and quality

Manufactured by the traditional company SIEM in Italy, a partner of Piaggio for decades, the glass lens bears a DGM approval mark and has the usual clean finish - a harmonious LED replacement in the original style.

Installation

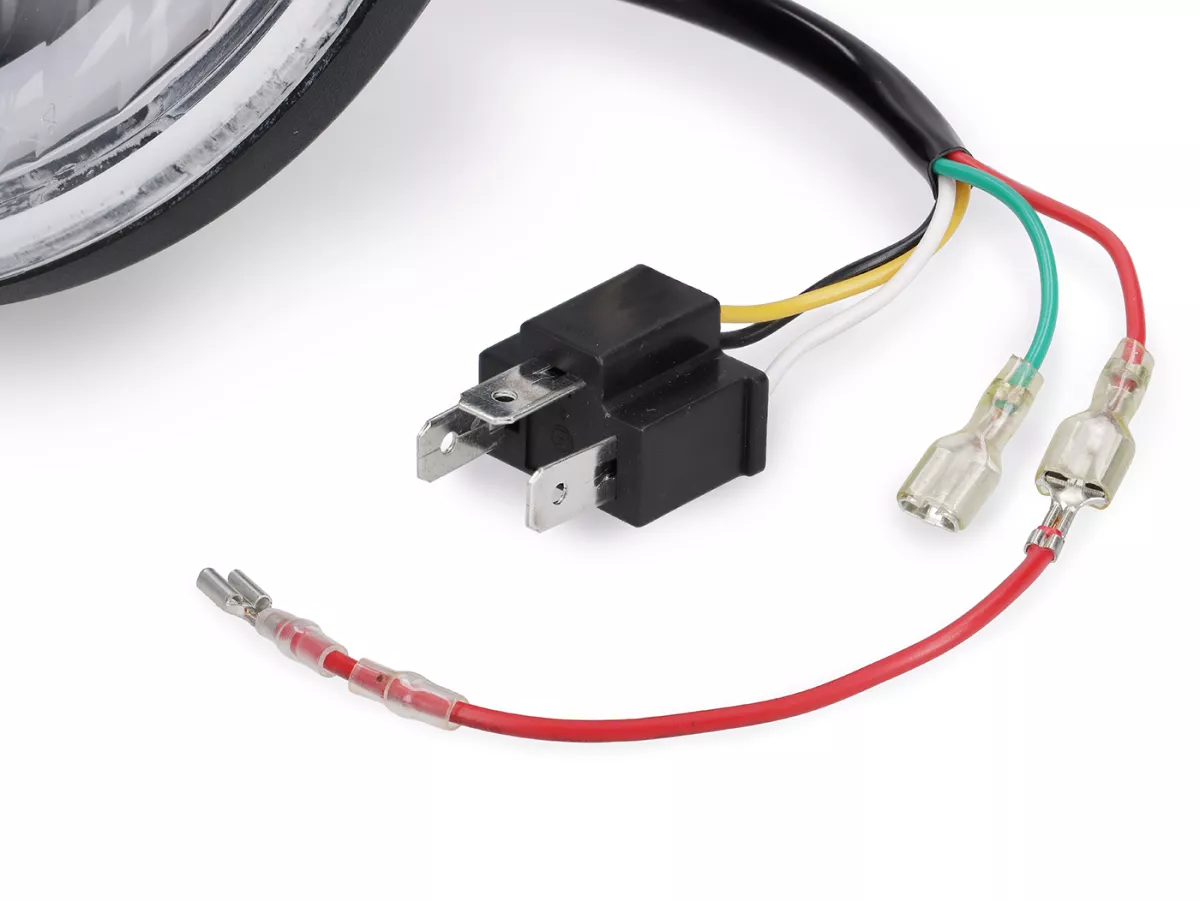

Quick plug-and-play retrofit: no original lamp holder required. All connections are made via the enclosed converter between the PX on-board power supply and the headlight. Observe the polarity on the converter, establish corrosion-free earth connections.

Operation on the AC vehicle electrical system

The converter supplies the LED with direct current and supports the low beam withparking light and low beam plus high beam and parking light modes. Check plug connections regularly to ensure long-lasting operation.

Model Please note
Vespa PX oldSeries from 1977
Vespa PX Lusso / EFL / ArcobalenoWith or without Elestart
Vespa PX Discwith front disc brake
Vespa PX '98 / MY / MilleniumFacelift models
Vespa PX MY 2011-2016last series

Key technical data

On-board power supply12 V AC (supply via AC/DC converter)
Power consumption25 W
Current consumption2,4 A
Luminous fluxup to 7,000 lumens
Color temperature6000 K (cool white)

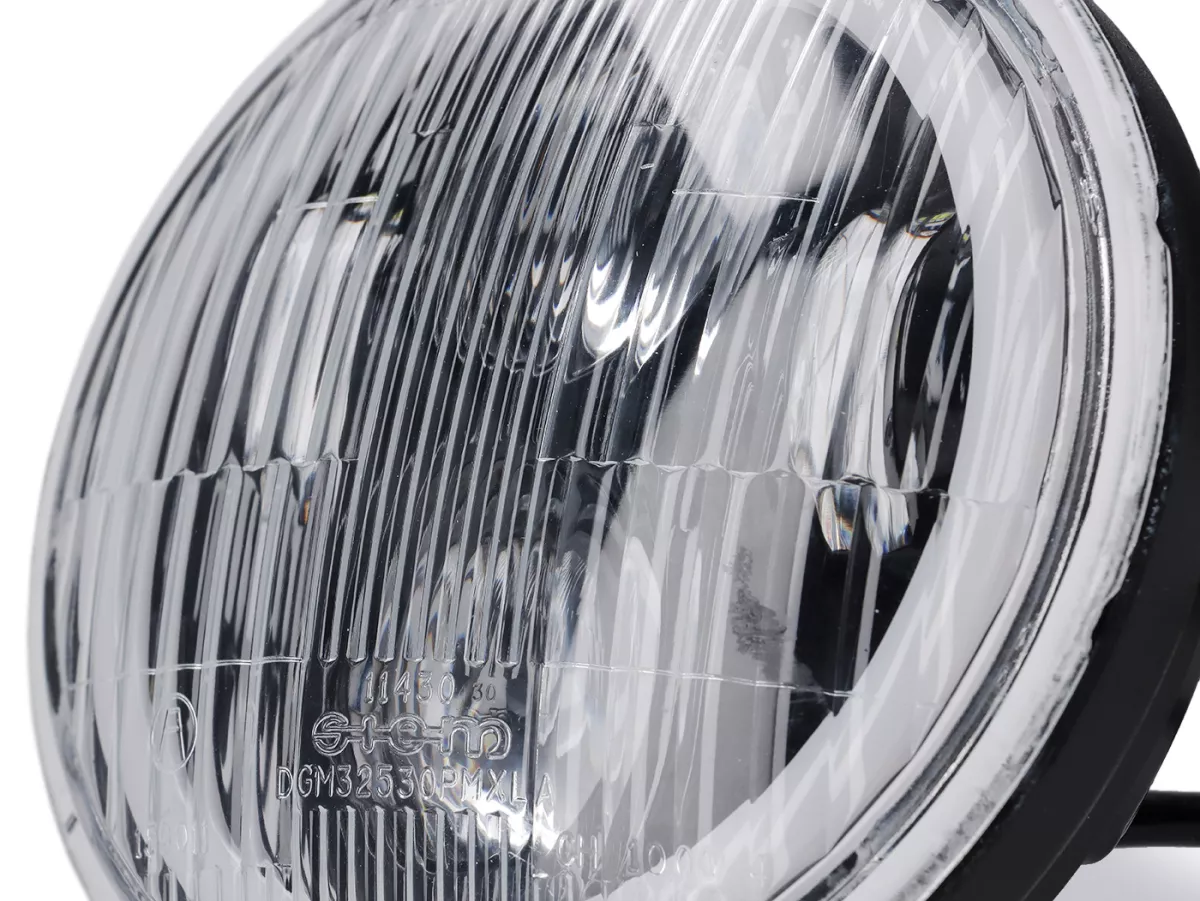

LensGlass, identification DGM32530PMXLA
diameterØ 146 mm

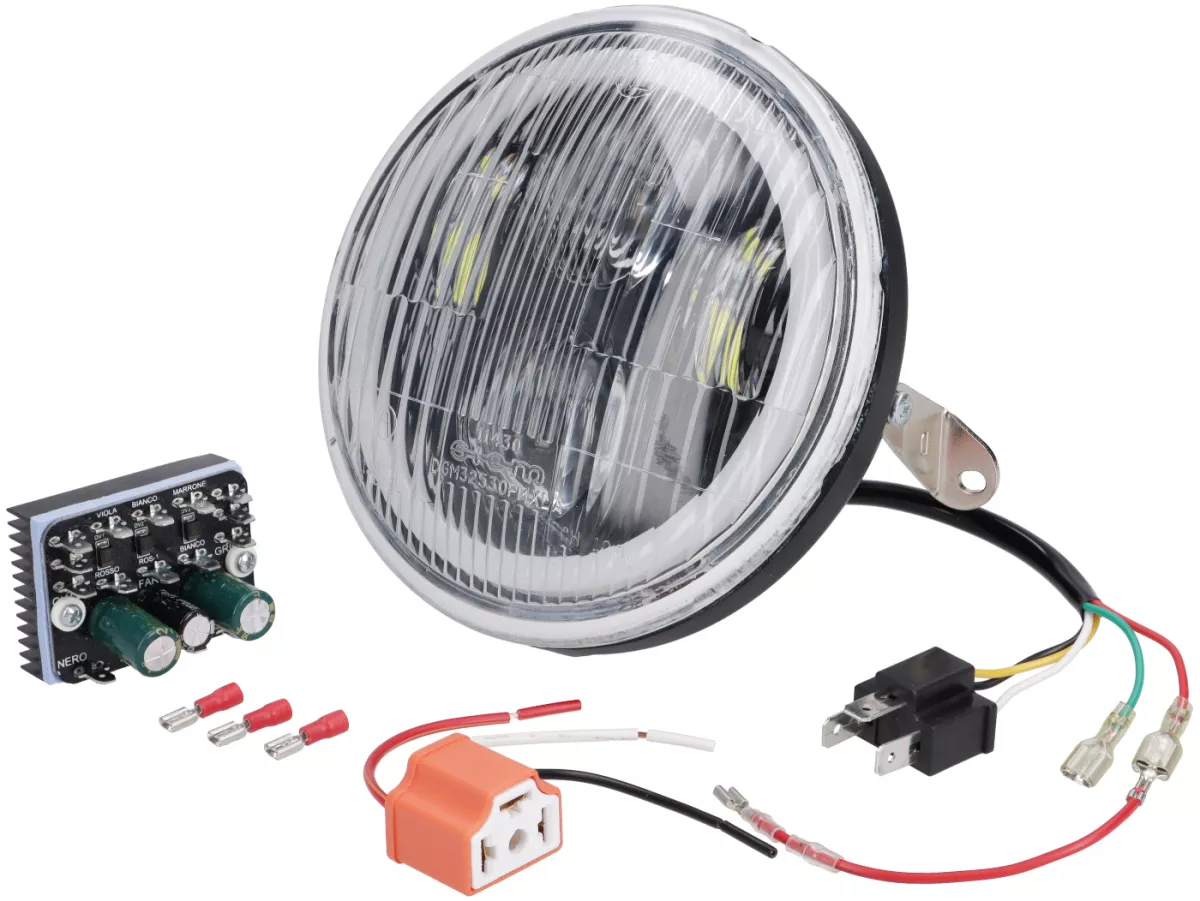

Scope of delivery

SpotlightSIEM LED insert Ø 146 mm, glass lens (DGM)

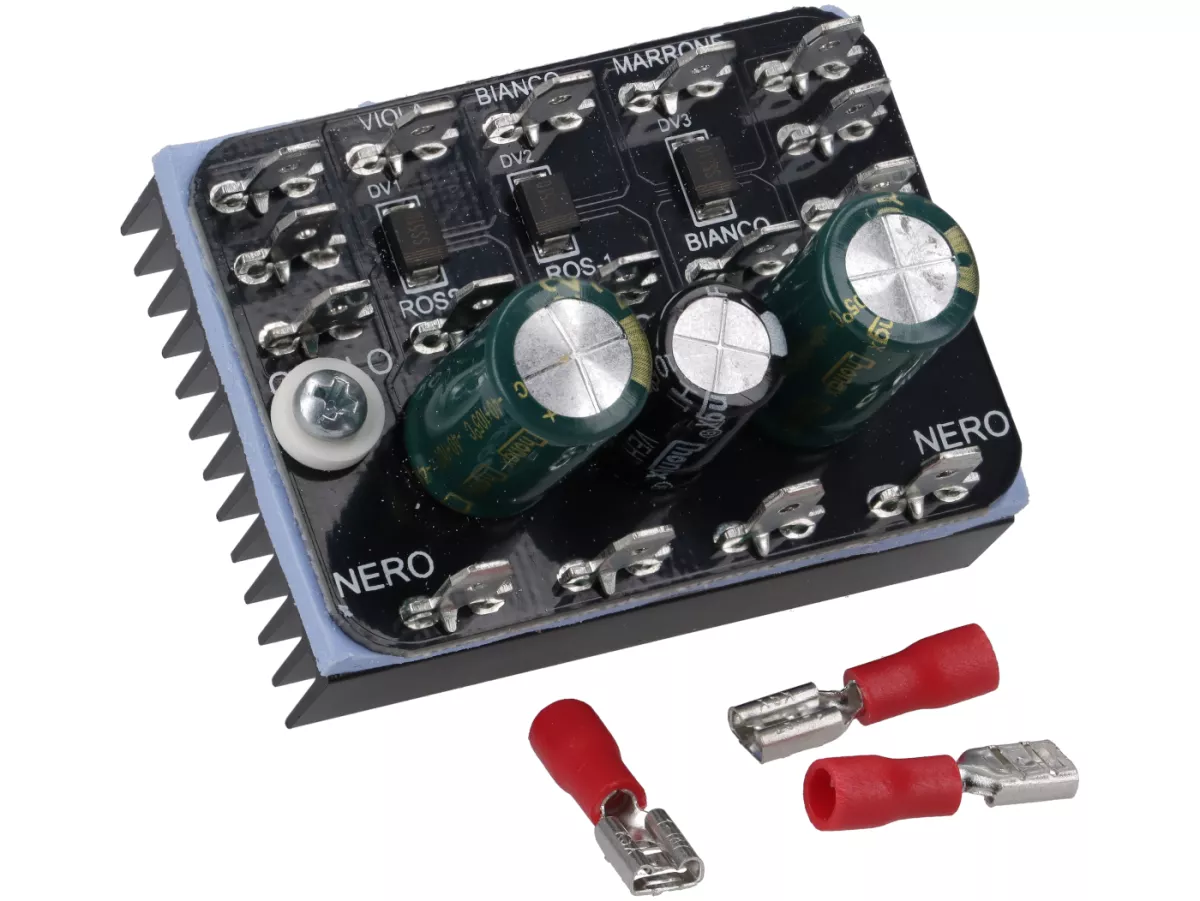

Voltage converterDedicated AC/DC converter for 12 V AC vehicle electrical systems

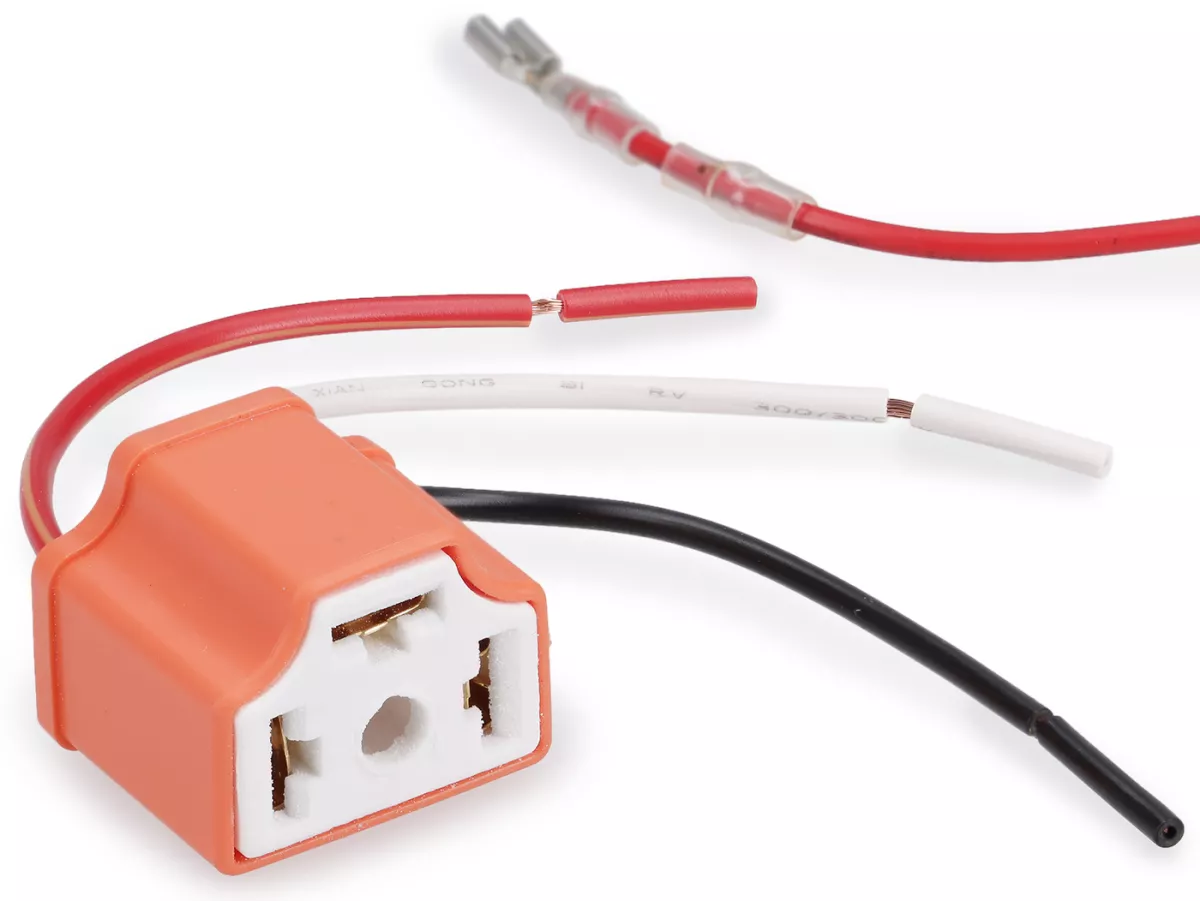

Small partsSockets for the electrical connection
Yes. It is operated via the enclosed AC/DC voltage converter on the PX's 12 V AC vehicle electrical system.
No. The retrofit is plug and play; an original lamp holder is not required.
Low beam with parking light and low beam plus high beam and parking light.
Glass lens with DGM marking. Approval issues must be checked on a vehicle- and country-specific basis; no general statement on use in public road traffic.
Rate this article now and let us know what you think.
OEM numbers (for comparison purposes only)
Piaggio:
139616
