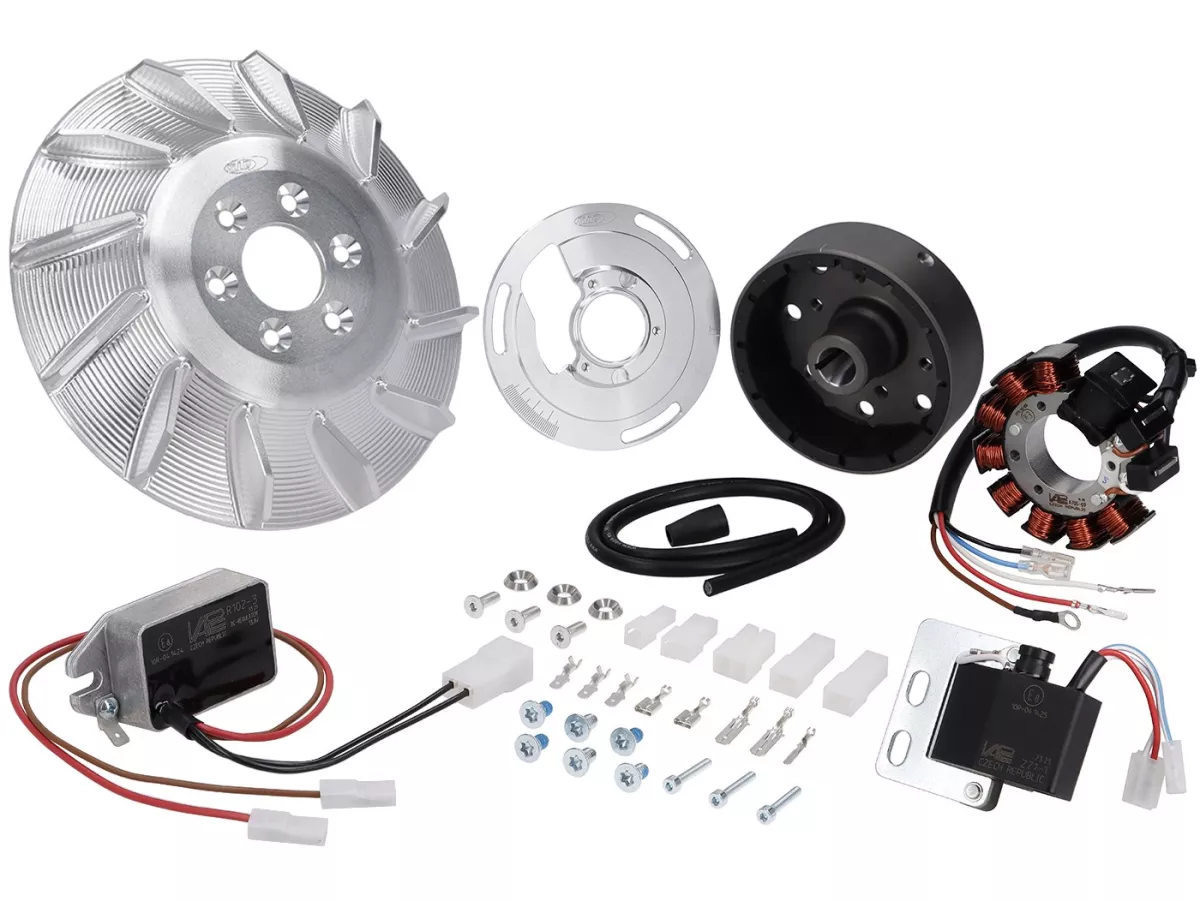

- Ignition -SIP VAPE Road, DC- Vespa PX80, PX125, PX150, PX200, Cosa, LML125/150 (2-stroke), Motovespa DN200, TX200, PX125-200 Iris
| Light output | Bright light in idle mode; up to ~110 W at speed |
|---|---|
| Mounting | Ignition setting without flash bulb, clear markings |
| Cooling | CNC aluminum fan wheel with optimized geometry |
| Balance | Pole wheel/fan wheel precisely balanced (~1,600 g) |
| On-board power supply | DC ex works, AC possible by replacing the regulator |
| Compatibility | Large largeframe cover incl. PX, Sprint/TS/GTR/Super, Rally, Cosa, LML 2T |
12 V to 110 W (DC) Bright light even when idling Ignition setting without strobe DC ex works, battery-ready Pole wheel incl. fan ~1,600 g CNC aluminum fan wheel, balanced Made in Europe
The VAPE 12 V DC system modernizes classic large-frame Vespas with contactless ignition and a fully-fledged DC on-board electrical system. Bright light even when idling, reliable LED/USB power supply and clean starting characteristics - ideal for engines with increased performance.
Laser-marked components for clear identification. Pole wheel/fan wheel precisely balanced; the CNC-milled fan wheel delivers high cooling performance with a practical flywheel mass.
VAPE completely replaces the contact ignition and includes a powerful 12 V alternator. Permanent magnets provide ample energy for ignition and DC on-board power supply - contact and capacitor service are no longer required.

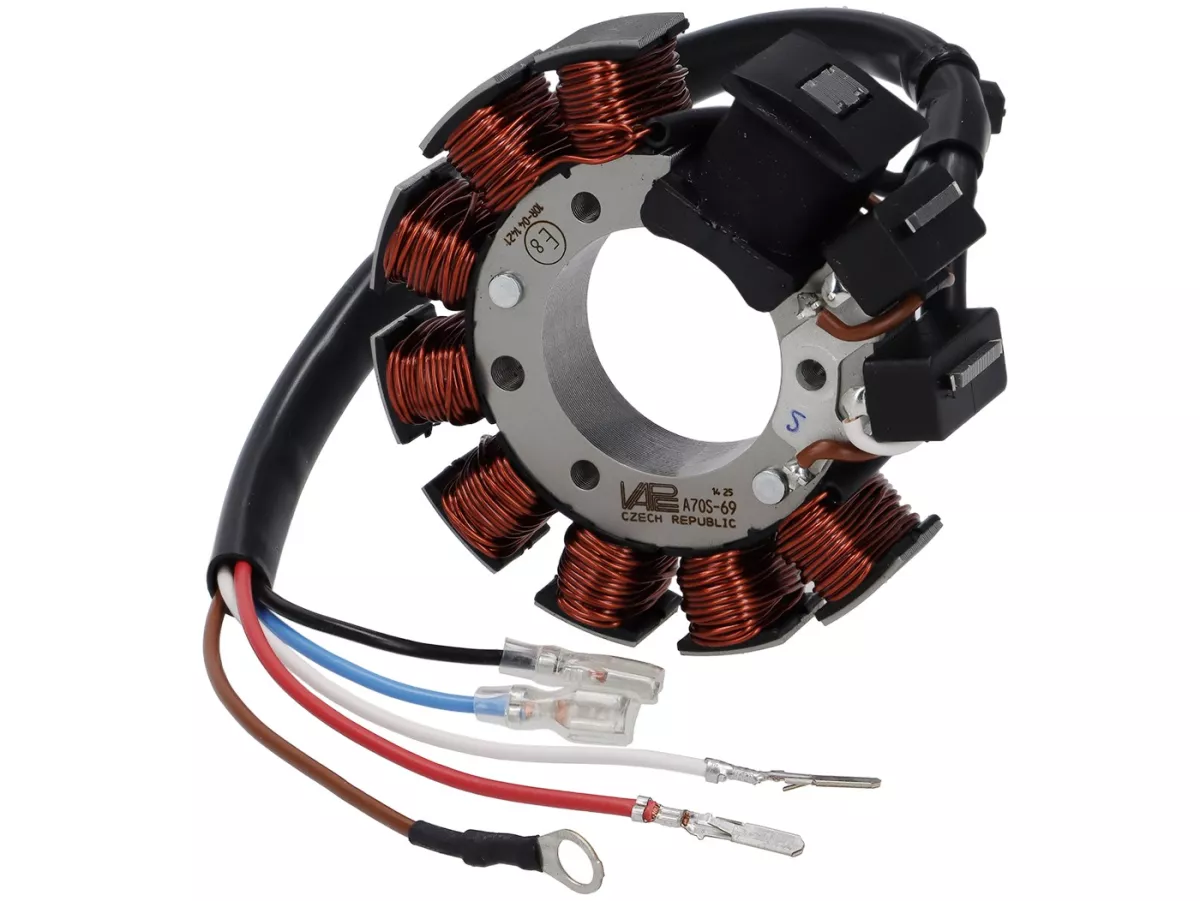

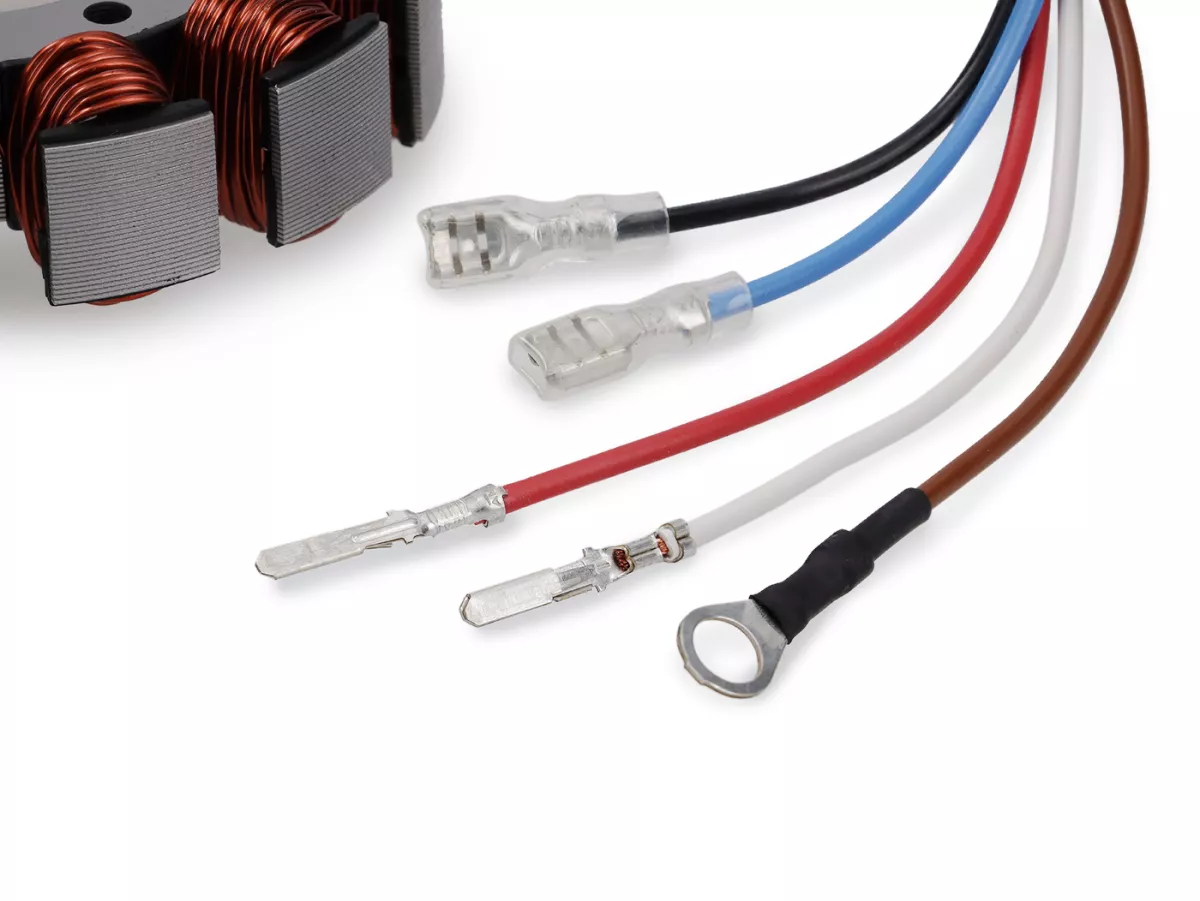

The ground-free stator feeds the rectifier/regulator (DC) - all consumers run on 12 V DC. The battery buffers the mains, supplies light/USB even when the engine is not running and stabilizes idling voltage. Ideal for powerful headlights, navigation/USB, LED indicators (use DC flasher unit).
Supplied with CDI for static timing - suitable for most 2-stroke street concepts. A dynamically adjustable CDI is available as an option.
Simple installation at original points - without "flashing" thanks to reference marks (testing with flash lamp possible). Ground points must be bare/tight; retighten screw connections after 50-100 km.
Single-slot mounting prevents incorrect assembly. The centrifugal mass is defined by the fan wheel; the mass inertia can be adjusted by changing the fan wheel. Optimized blade geometry for high cooling capacity.
Many older large frames work with decentralized self-regulating AC coils. VAPE DC feeds all coils centrally to the DC controller and requires a battery, main fuse and DC distribution.
Recommended: Suitable DC conversion wiring harness (Sprint, GTR, TS) or modify existing wiring harness (PX LUsso, Disc, Cosa, LML), DC horn/DC flasher unit (if previously AC), low-corrosion plug connections.
| Model | Type/Note |
|---|---|
| LML Star 125/150 2T (DLX/Via Toscana/Star/Stella) | Compatible - replaces standard AC with DC system |
| Vespa 125 GTR (VNL2T) | '68-'78 (from 145901) - DC electrical system after conversion |
| Vespa 125 TS (VNL3T) | '75-'78 (from 18139) |
| Vespa 150 Sprint Veloce (VLB1T) | '69-'79 (from 294260) |
| Vespa 150 Super (VBC1T) | '65-'79 (from 412374) |
| Vespa 200 Rally (VSE1T) | '72-'79 (from 33997) |
| Vespa COSA 1/2 (125/150/200) | VNR/VLR/VSR - DC electrical system |
| Vespa P125X (VNX1T) / P150X (VLX1T) / P150S (VBX1T) | PX series - DC electrical system |
| P/XE/Arcobaleno/Lusso/MY/Disc/2011 | All 2-stroke PX large frames - DC electrical system |
Note: This DC variant replaces the factory AC electrical system - battery & DC peripherals required.
| Model | Type/Note |
|---|---|
| Motovespa DN 200 / DS | PX derivatives - DC conversion |
| Motovespa PX 125/150 Iris/EFL | Contactless - DC electrical system after conversion |
| Motovespa TX200 | PX-200 (T5 optics) - DC electrical system |
| Not suitable for: CL 125/150 / early DS200 | Femsa special parts/crankshafts - check separately |
| On-board power supply | 12 V DC (battery recommended/required) |
|---|---|
| Power output | up to ~110 W (@ ~6,000 rpm), ~80 W (@ ~2,000 rpm) |
| Pole wheel / fan | approx. 1,600 g, balanced |
| CDI | static ZZP (dynamic CDI optional) |
| Regulator | DC regulator included (AC only possible with separate regulator) |

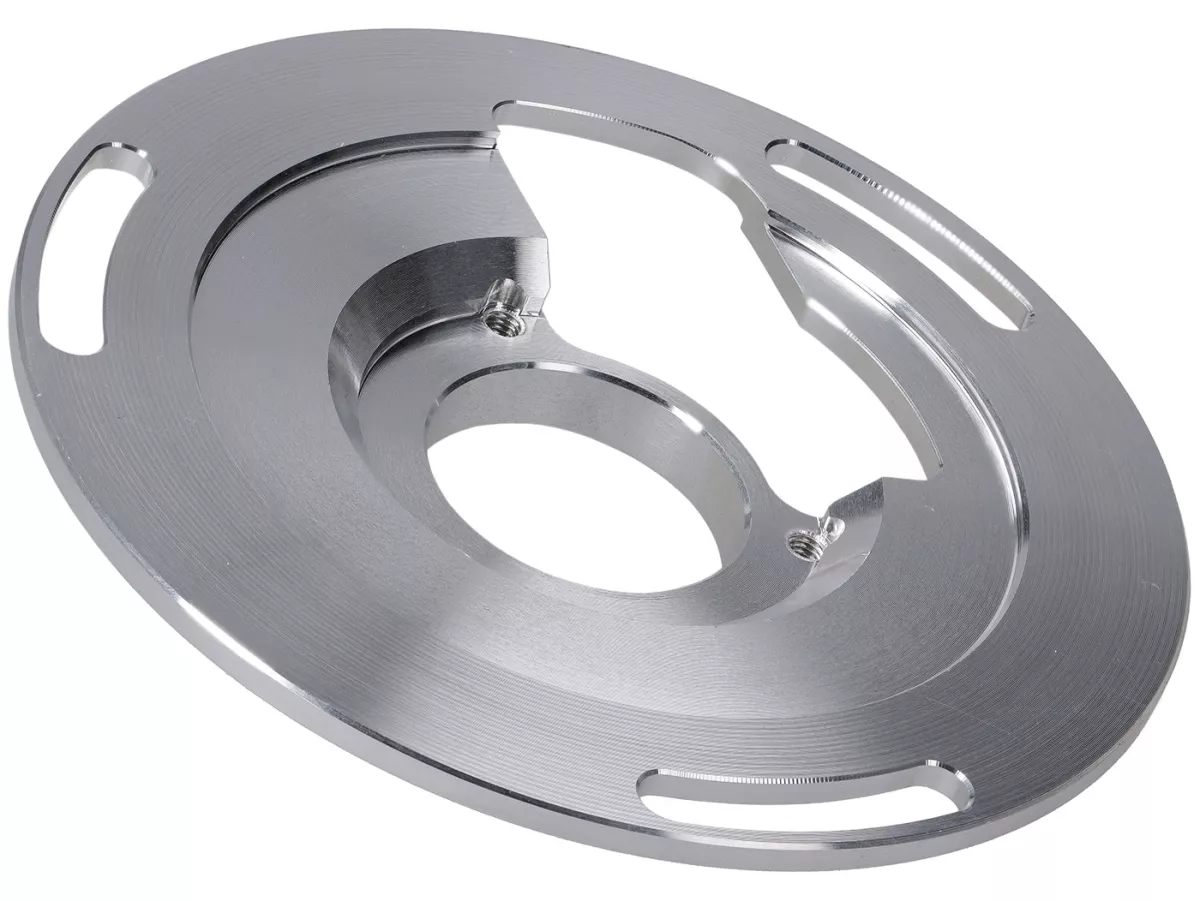

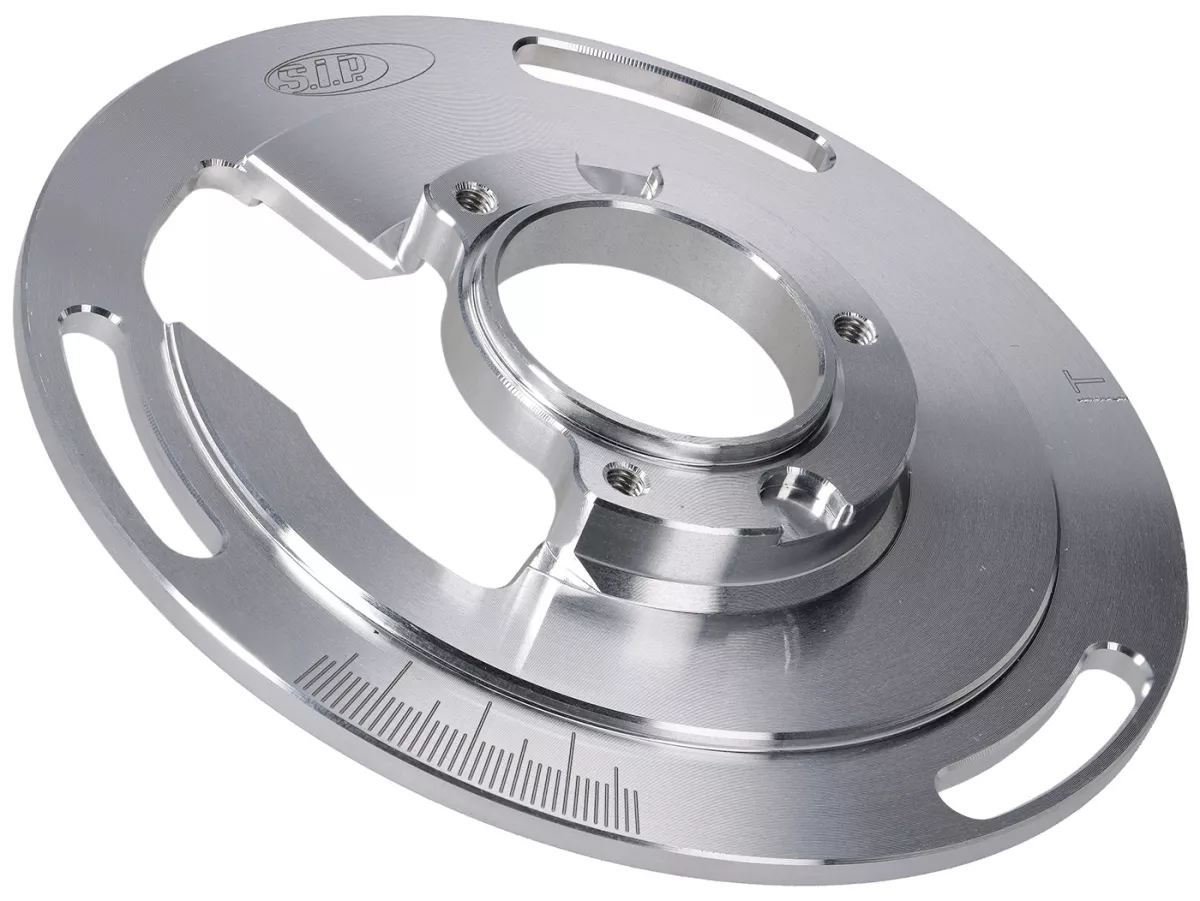

| Ignition base plate | Pre-assembled (ungrounded) |
|---|---|

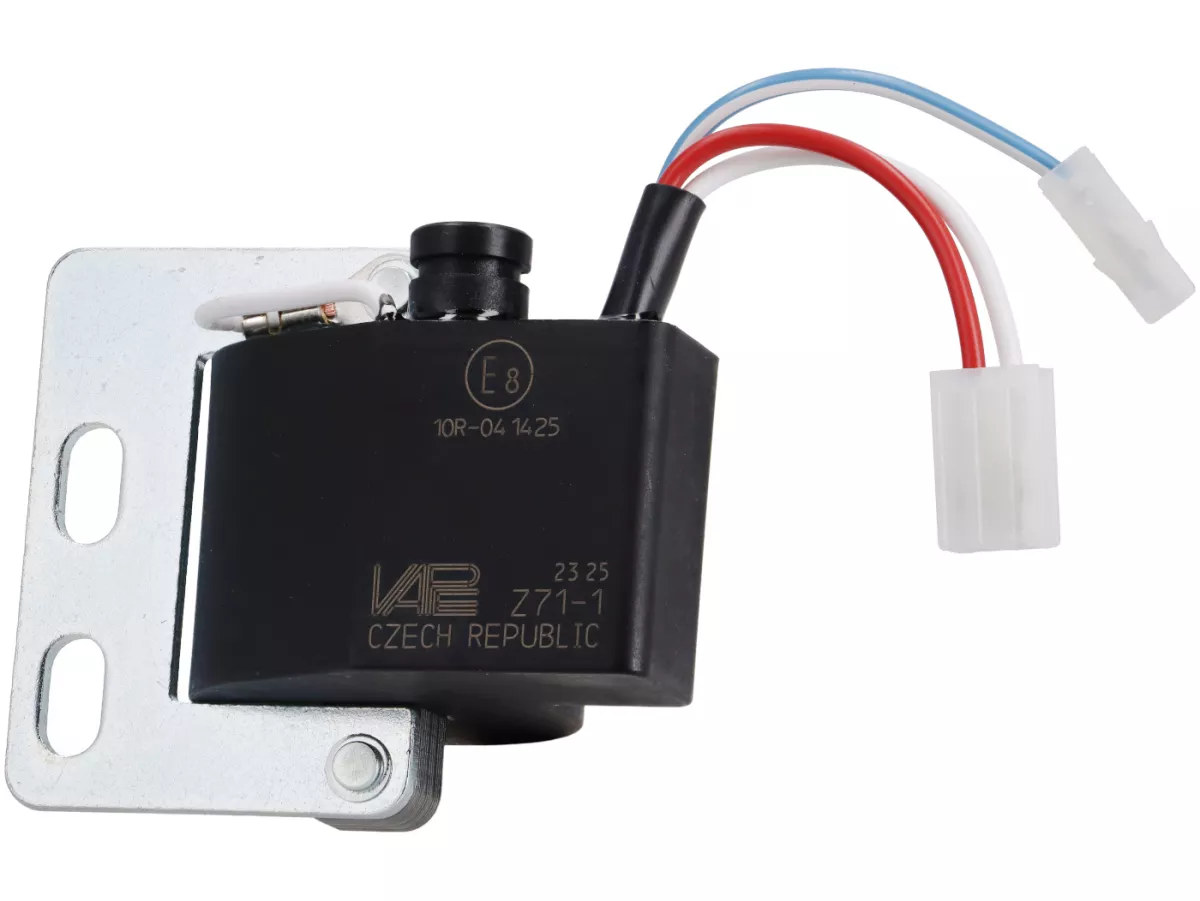

| CDI | for static ignition timing |

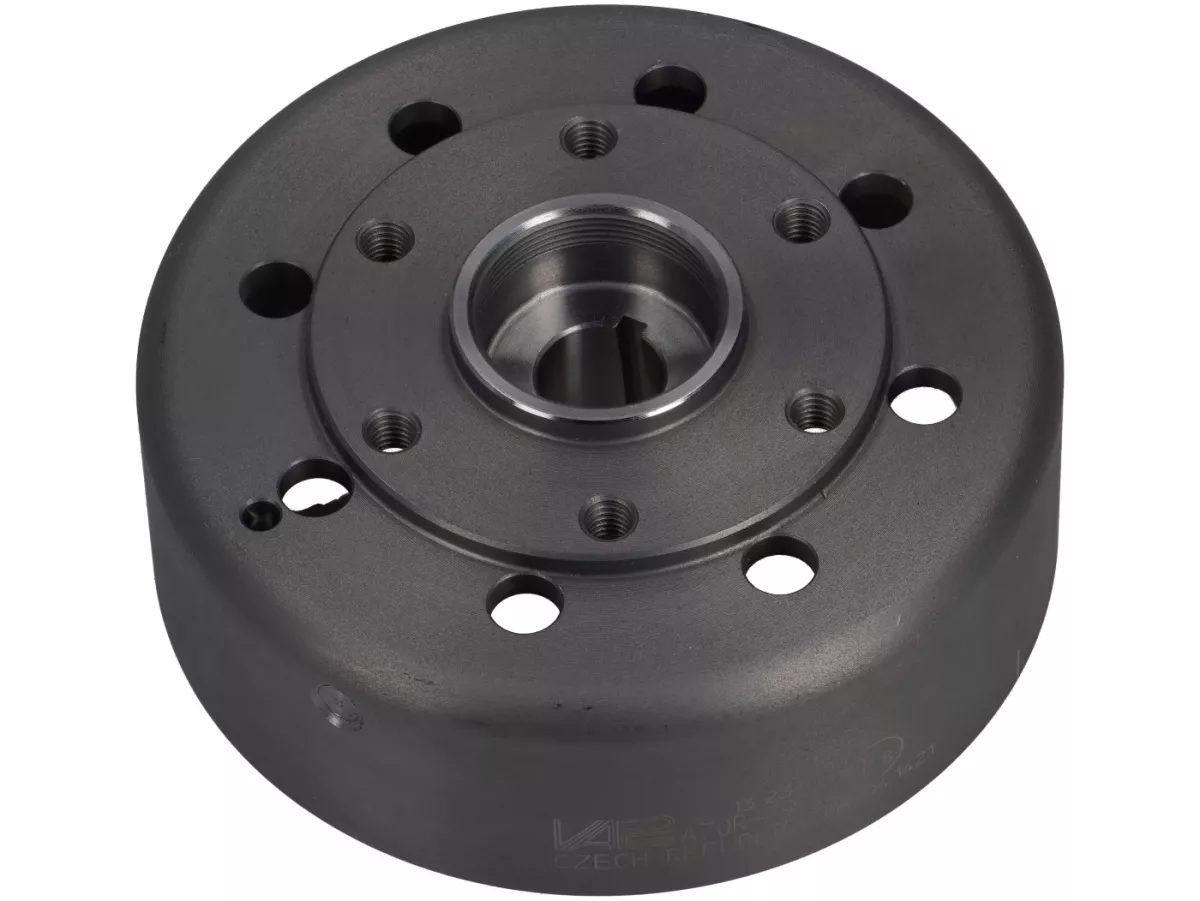

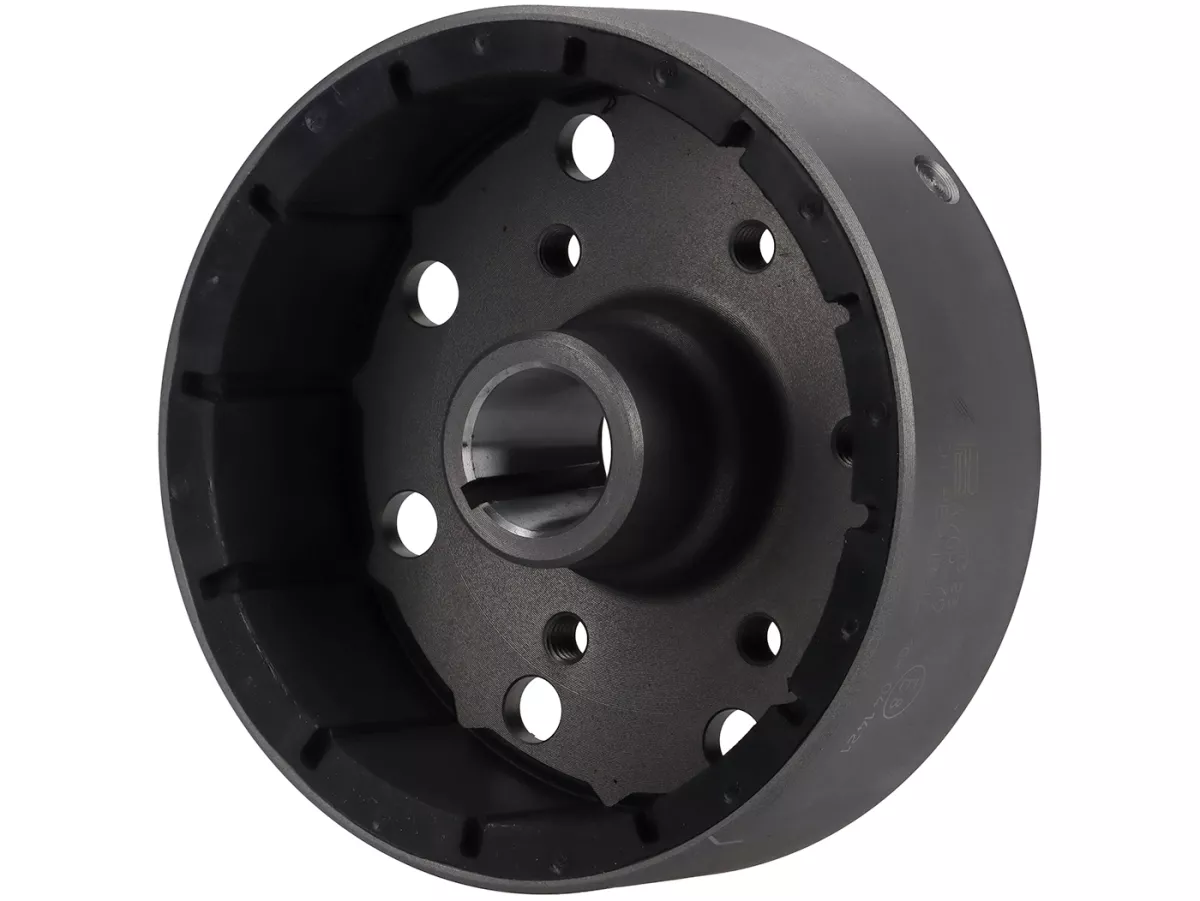

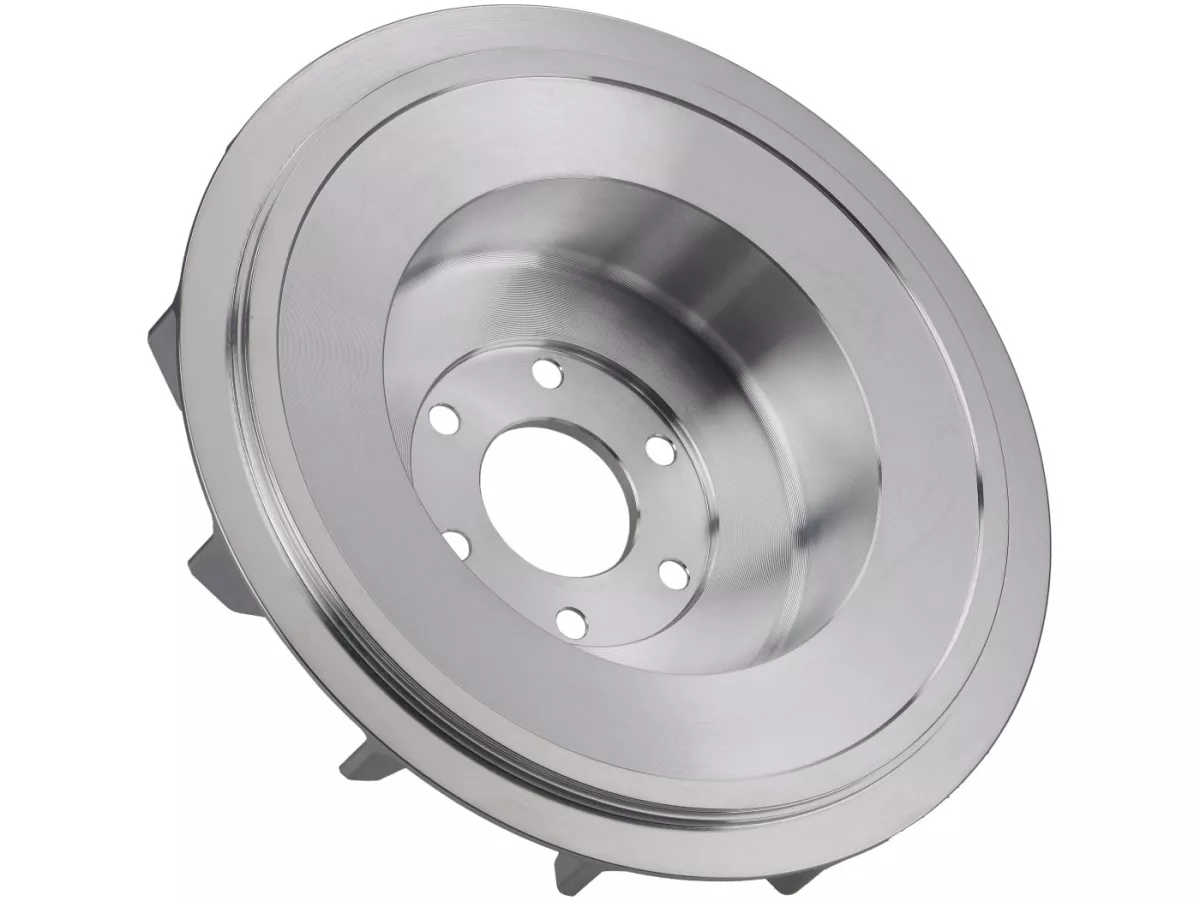

| pole wheel | Matching cone, single groove to prevent incorrect installation |

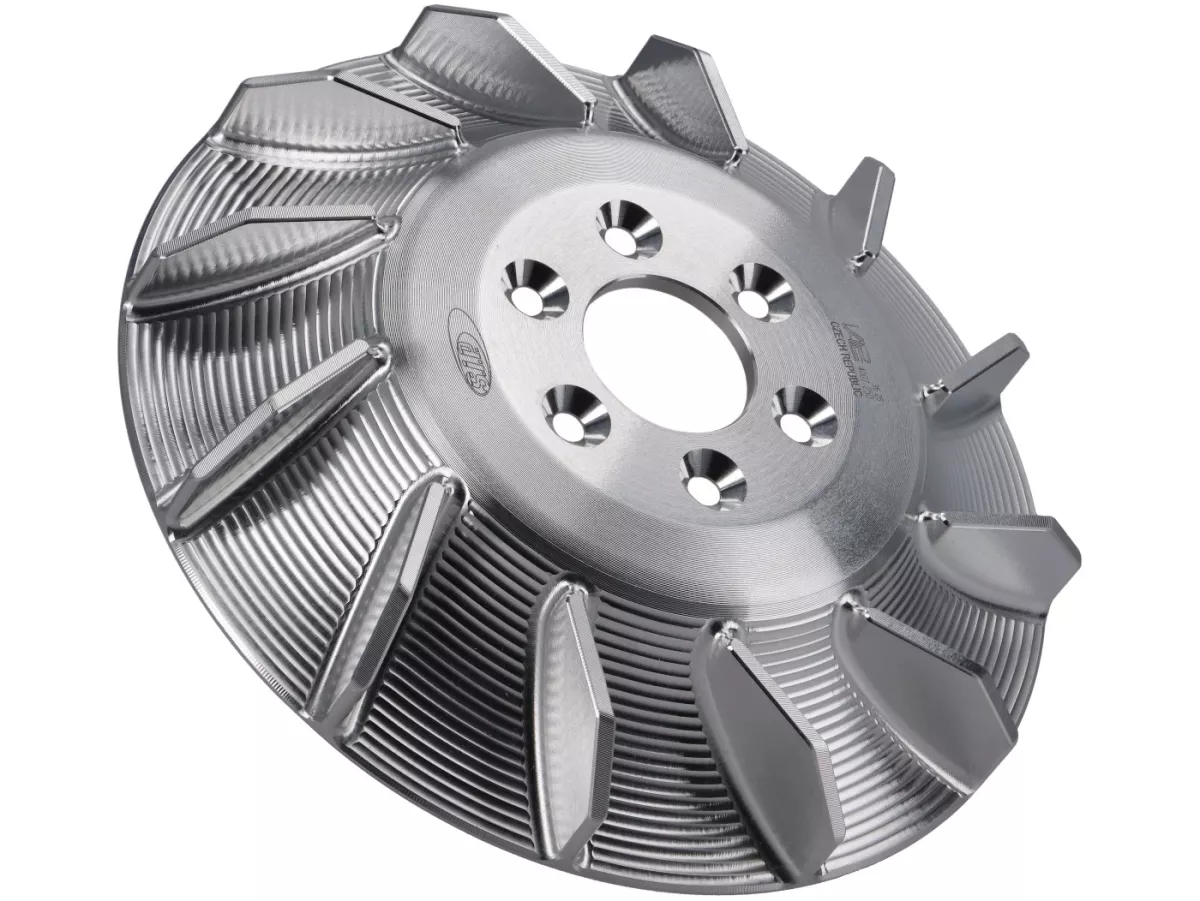

| Fan wheel | CNC aluminium, optimized blades |

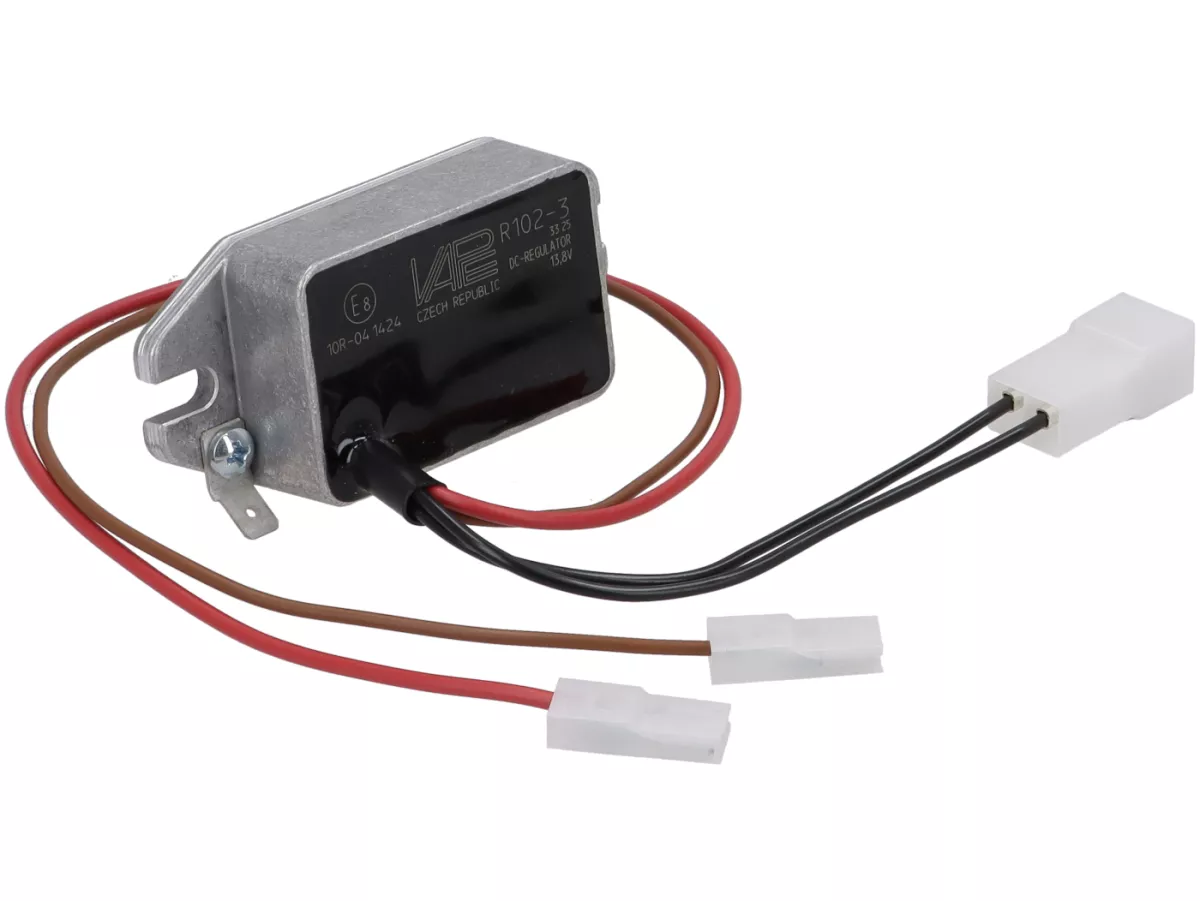

| Voltage regulator | DC regulator |

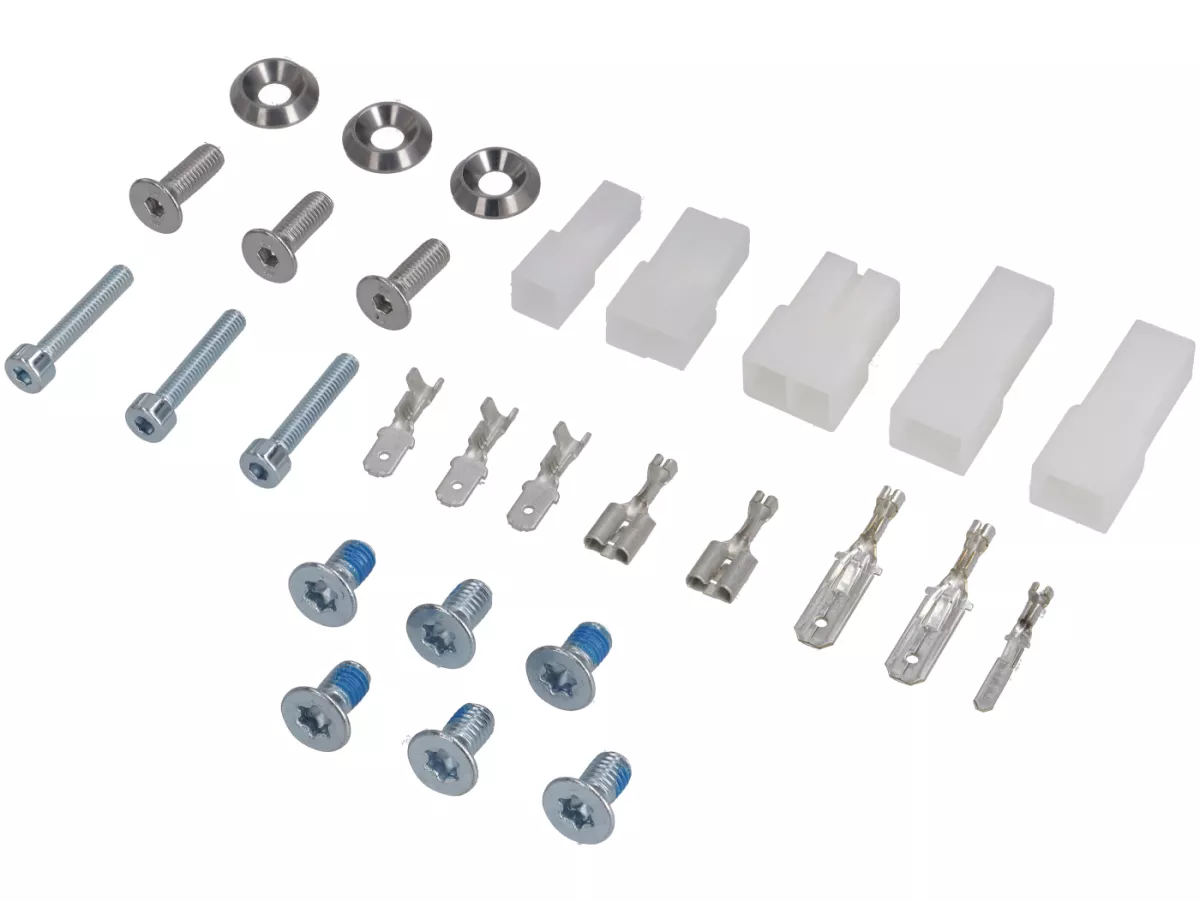

| Screw set | incl. mounting material |
Note: Engine-specific CDI holder not included (see accessories). Battery/holder/fuse separate.
Note: Proper ground connections and cleanly laid cables are essential for long-term trouble-free operation.
