BGM PRO Item number: BGM2550A
BGM PRO

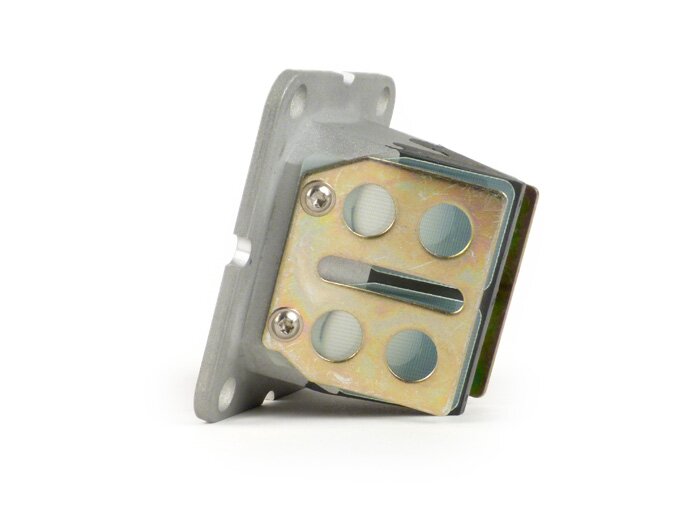

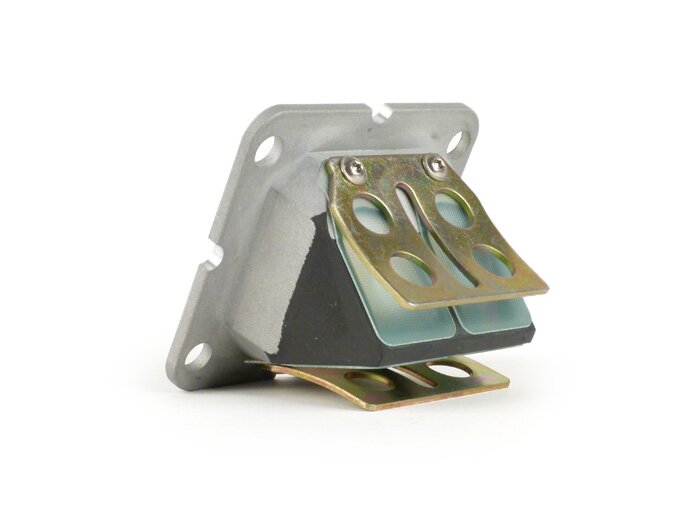

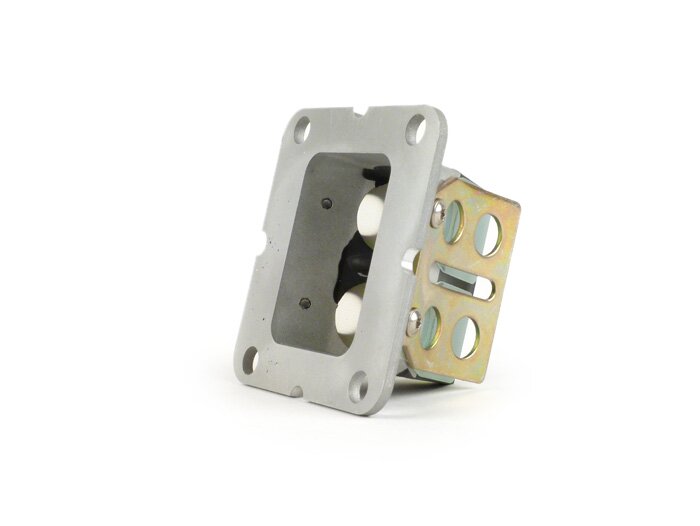

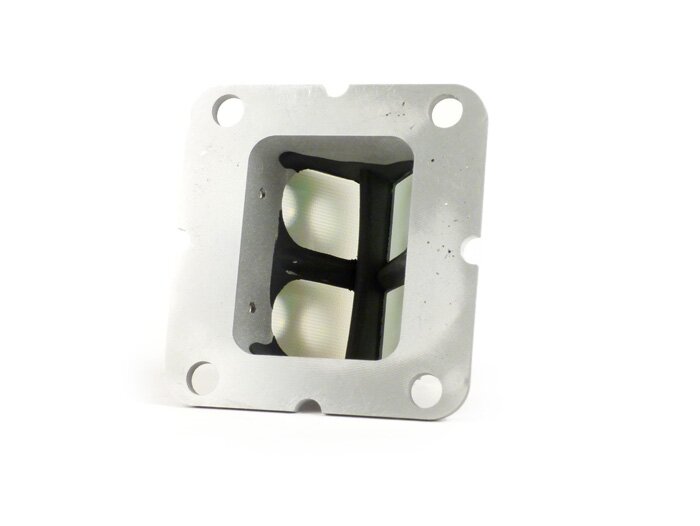

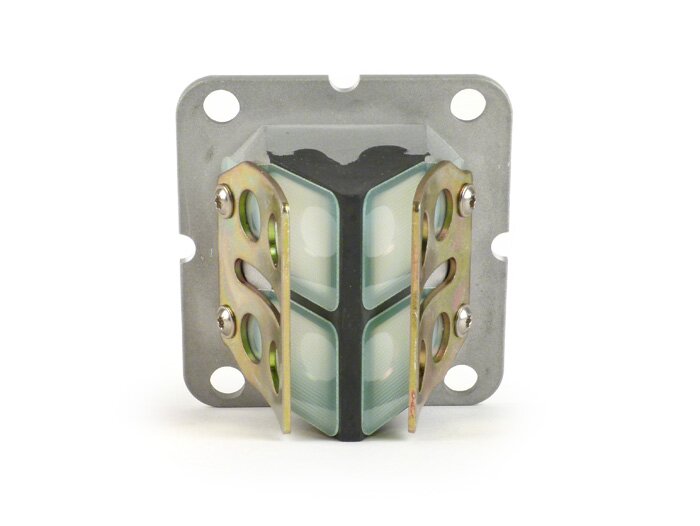

Reed valve -BGM PRO- RD350-type (modified for Lambretta TS1) - GRP petals

1 Rating
68,00 €*
available immediately
Shipping weight 0,148 kg
Information on product safety
Report error
Matching bgm RD diaphragm, for all Lambrettas with TS1 cylinders.
Perfect combination of excellent durability and high performance!
When using a Packing Plate with the bgm PRO reedblock no milling of the TS1 inlet is necessary.
em>AI-translation/sub>

This is how we ensure, that reviews come from real consumers.
Anonym  08/17/2015

Funktioniert tadellos

Rate this product now
Membrane platelets
Strength tile 1
0.5 mm
Material
GFK
Number of screws per plate
2

Membrane blocks
Design
V-Form
Membrane body material
Aluminium
Rubberized membrane body
Ja
Number of fixing holes
4
Hole stitch
58 x 49mm
Outer dimension flange plate
66 x 60mm
Internal dimension flange plate
56 x 35,5mm
Flange plate thickness
3,0mm
Insertion depth
40,5mm
Stops for membrane plates
ja
Number of membranes
4
Stuffer included in the scope of delivery
nein
Seal included in the scope of delivery
nein
Spacer included in the scope of delivery
nein
Replacement plates included in the scope of delivery
nein

General
EAN
4250366612355

OEM numbers (for comparison purposes only)
Scooter Center:
BGM2550A
