OEM-Qualität Item number: 58785
OEM-Qualität

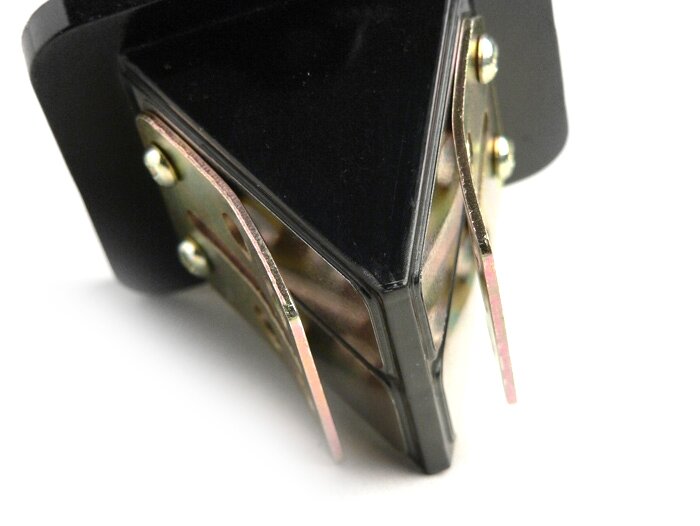

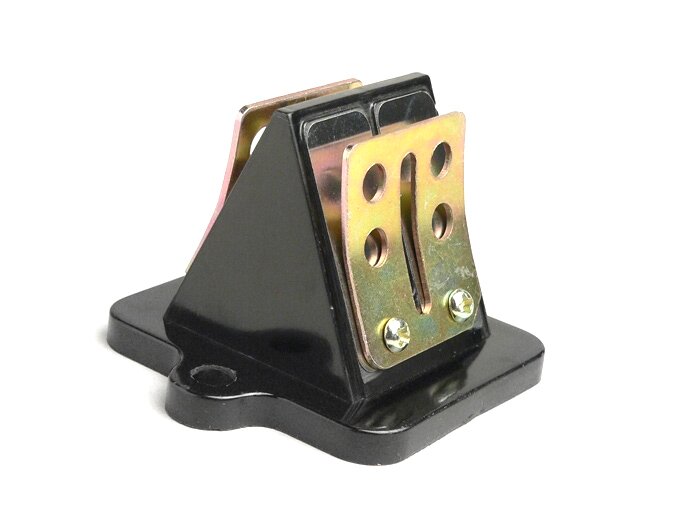

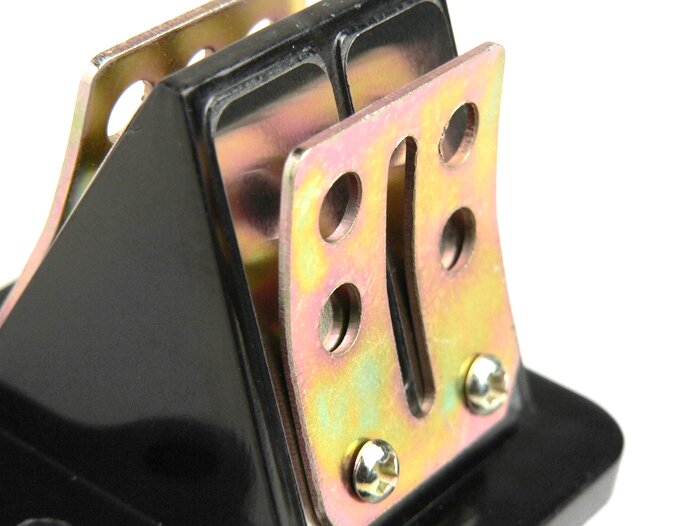

Reed valve -OEM QUALITY- Peugeot 50cc (horizontal cylinder) - CS=23mm - JETFORCE50 C-TECH, SPEEDFIGHT3 50 LC, LUDIX 50 LC BLASTER, SPEEDFIGHT3 50cc AC (2-stroke), LUDIX AC, VIVACITY 50 NEW (2-stroke)

3 Ratings
11,90 €*
not available
Shipping weight 0,04 kg
Send me an e-mail as soon as the item is back in stock.
Information on product safety
Report error
Diaphragm plates are subject to natural wear, similar to piston rings and clutch shoes. The diaphragm plates should therefore be replaced at regular intervals.
With the bgm ORIGINAL diaphragm blocks we offer you a cheap replacement in original equipment quality. Since everything is already pre-assembled, the replacement is quick and easy, even for inexperienced screwdrivers.
AI-translation/sub>

This is how we ensure, that reviews come from real consumers.
Anonym 07/05/2015

Gutes Teil!

Anonym 07/05/2015

Gutes Teil !

Anonym 07/05/2015

Gutes Teil!

Membrane platelets
Strength tile 1
0.2 mm
Material
GFK
Number of screws per plate
2

Membrane blocks
Design
V-Form
Membrane body material
Kunststoff
Rubberized membrane body
Nein
Number of fixing holes
2
Hole stitch
53mm
Outer dimension flange plate
48 x 55mm
Internal dimension flange plate
34,5 x 24,5mm
Flange plate thickness
5,0mm
Insertion depth
37,5mm
Stops for membrane plates
ja
Number of membranes
4
Stuffer included in the scope of delivery
nein
Seal included in the scope of delivery
nein
Spacer included in the scope of delivery
nein
Replacement plates included in the scope of delivery
nein

OEM numbers (for comparison purposes only)
Scooter Center:
58785
Peugeot:
740584
