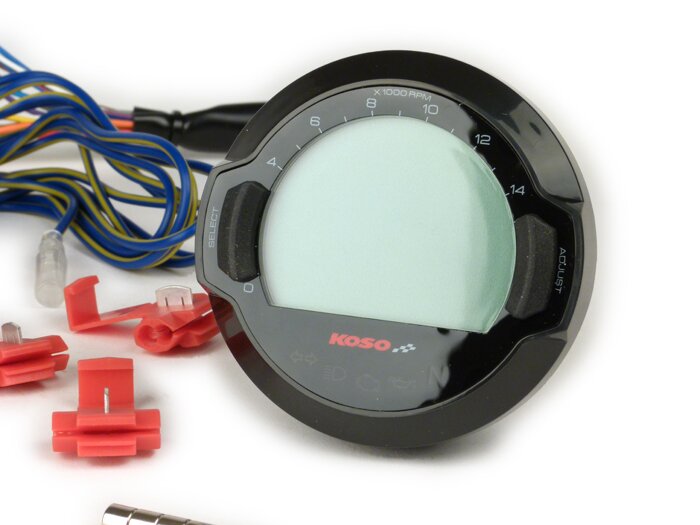

The DL-03SR is not a pure speedometer but a multifunctional cockpit and therefore the first KOSO instrument which combines tachometer and speedometer as well as many other functions in one device. Under the display there are 5 signal lights (indicator, high beam, EOBD, oil, neutral). However, these are only visible when the corresponding signals are triggered. Instead of the rev counter, you can also have a volt and fuel gauge displayed. If you are in the rev mode and the fuel level reaches a critical level, a flashing symbol is shown. If your fuel gauge does not have one of the adjustable basic resistances of 100/250/510 or 1200 ohms, you can also learn the fuel gauge in learn mode for correct display. Due to a KBA number the DB-03S is not registered in Germany.
tachometer: | display range:0-360 km/h (0-223 MPH) |
total odometer: | display range: 0-99999.9km (mile) Reset automatically after 99999.9km (mile) |
Trip A/B: | display range: 0 - 999.9 km (mile) |
wheel circumference: | adjustment range: 300- 2500mm unit 1mm / pulses 1-60 |
rotational tachometer: | display range: 0 - 15 000 rpm Unit: 1 segment = 1000 rpm |
Tank display: | Display range: 4 levels |
clock: | 24h |
Digital Voltmeter: | display range: DC5 -DC28V |
size: | 70 mm x 35 mm x 50 mm (outside x depth x mounting diameter) |
signal lamps: | blinker, neutral, oil, high beam, EOBD |
