Peugeot Vivacity 50 (ND) | Suspension and centre stand

Peugeot Vivacity 50 (ND)

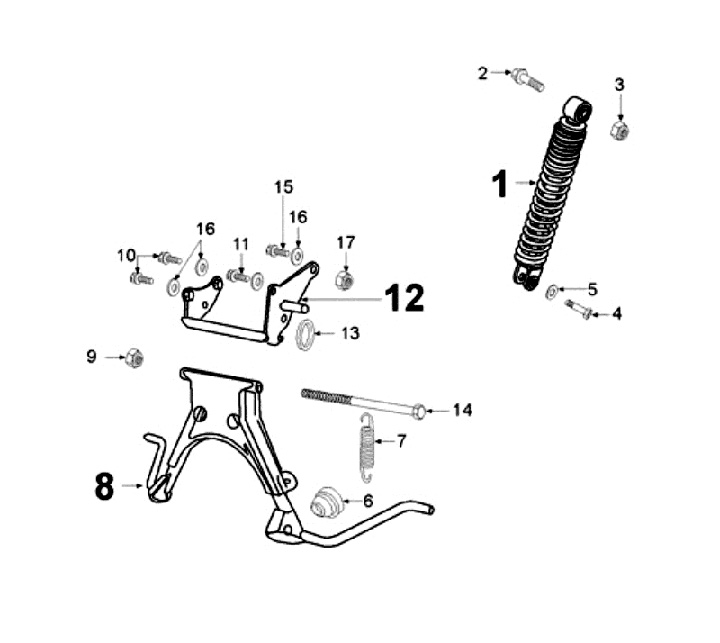

Exploded views

Suspension and centre stand

Peugeot Vivacity 50 (ND)

Sort

Clutch nut hardened -BGM PRO M10 x1.50 (standard) SW=16 half-high- used as clutch nut Vespa for standard auxiliary shaft V50, PV125, ET3, PK S, PK XL - hardness 10

BGM PRO

BGM PRO
7672107

Clutch nut hardened -BGM PRO M10 x1.50 (standard) SW=16 half-high- used as clutch nut Vespa for standard auxiliary shaft V50, PV125, ET3, PK S, PK XL - hardness 10

Screw -DIN 933- M8 x 25mm (8.8 tensile strength)

Normfest

Normfest
9901121

Screw -DIN 933- M8 x 25mm (8.8 tensile strength)

Screw -DIN 933- M8 x 30mm (8.8 tensile strength)

Normfest

Normfest
9901108

Screw -DIN 933- M8 x 30mm (8.8 tensile strength)

Washer -DIN 125- M8- black zinc plated

Normfest

Normfest
9901082B

Washer -DIN 125- M8- black zinc plated

Screw -DIN 933- M8 x 35mm (10.9 tensile strength)

Normfest

Normfest
9901091

Screw -DIN 933- M8 x 35mm (10.9 tensile strength)

Screw -DIN 933- M8 x 40mm (8.8 tensile strength)

Normfest

Normfest
9901094

Screw -DIN 933- M8 x 40mm (8.8 tensile strength)
