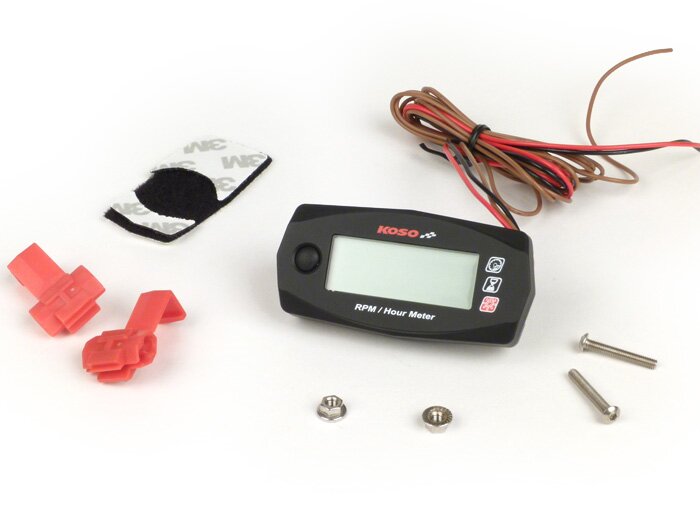

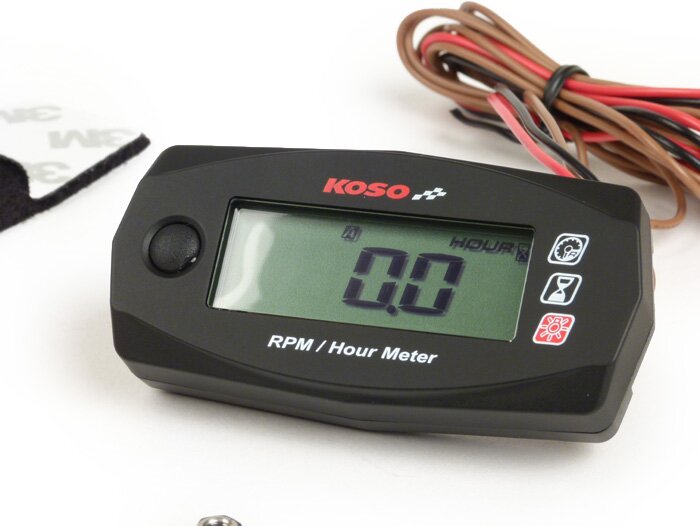

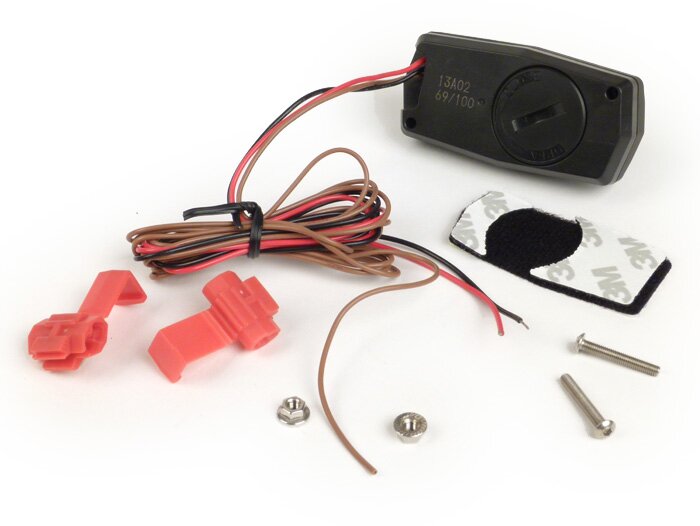

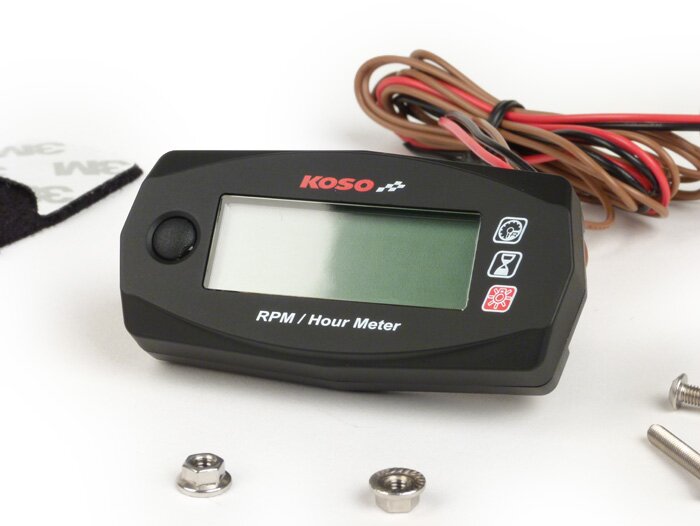

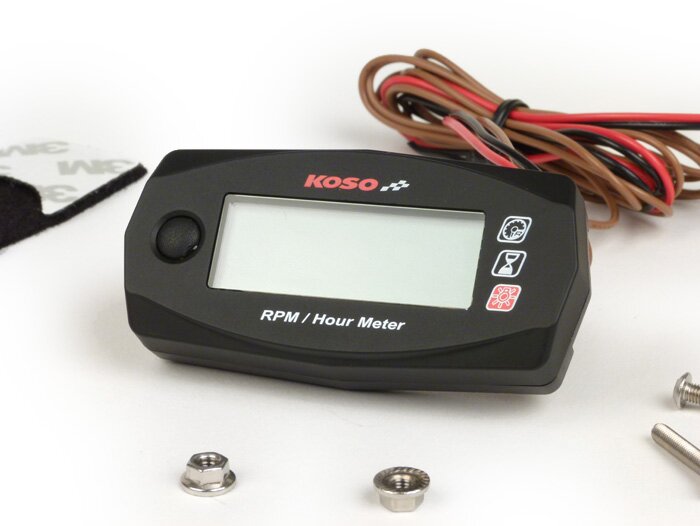

Tachometer & hour meter -KOSO Mini Style- universal (69.8mmx34.4mmx17.2mm)

hour counter (total)

rotational tachometer

display range: 0-99.999 h
display unit: 1 h
memory unit 1 s

display range 0-15000 rpm, pitch 100 rpm

hour counter A/B (resettable)

display range: 0-999.9 h
display unit: 0.1 h (6 min)
memory unit 1 s

The instrument starts working automatically after ignition and stores the operating time after 1 second.

battery life time

24 h/day approx. 180 days, approx. 1000 hours, battery type CR2032
+ 12 Volt board voltage

Automatic sleep mode

The instrument goes into sleep mode if no new signal is received for more than 30 seconds.

length of the sensor cable

approx. 120 cm

operating temperature range

-10 to +60°C

width x length x height

69.8 x 34.4 x 17.2 mm
