Grabor Item number: 1102472
Grabor
55,00 €*
available immediately
Shipping weight 0,23 kg

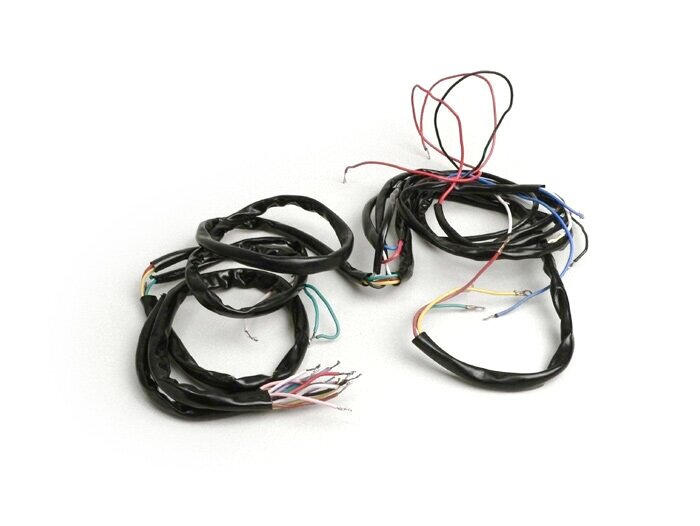

A wiring harness is a wearing part. After many years in heat, cold, petrol fumes, vibrations and humidity, even the best copper cable becomes dilapidated. While the outside is usually still well camouflaged by an apparently intact insulation, the so-called inner strand is already corroded and brittle. A weak light, misfiring, all this is past with one of our new high quality wire harnesses.


So that the vehicle can be restored true to the original, we are supplied by the manufacturer who also then already produced the original wire harnesses for Piaggio. You can see, feel and notice that!

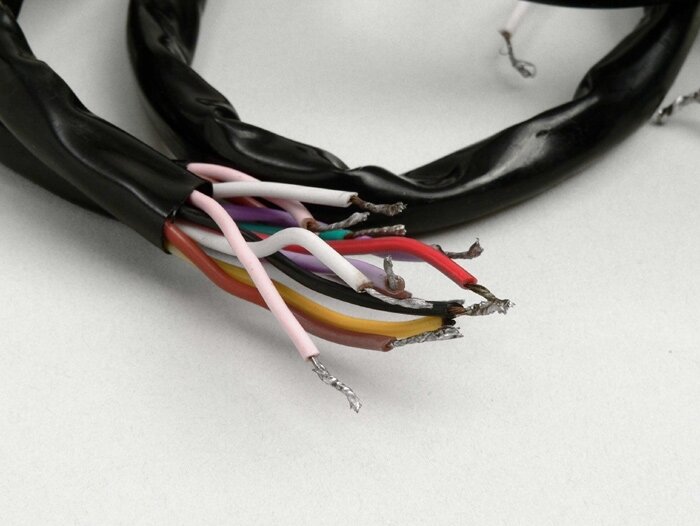

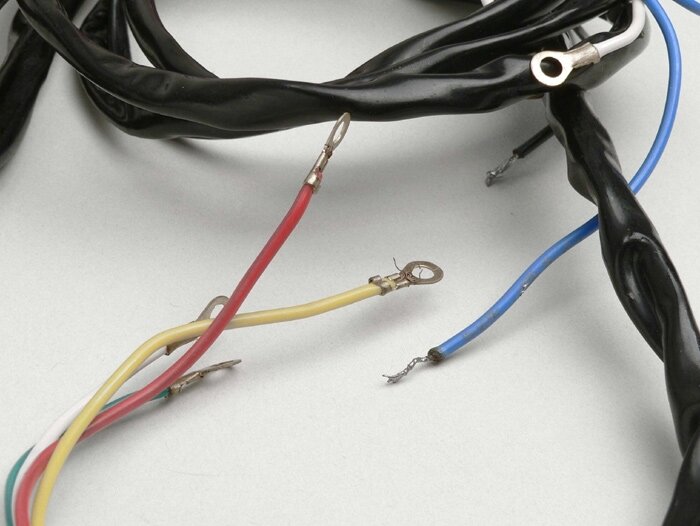

Many small affectionate details like the original cable lugs, shrinking tube, hand tinned cable ends etc. let the anticipation for the first ride rise strongly. The certainty that you can rely 100% on the electrical system again is also a safe resting place on the first long drive.

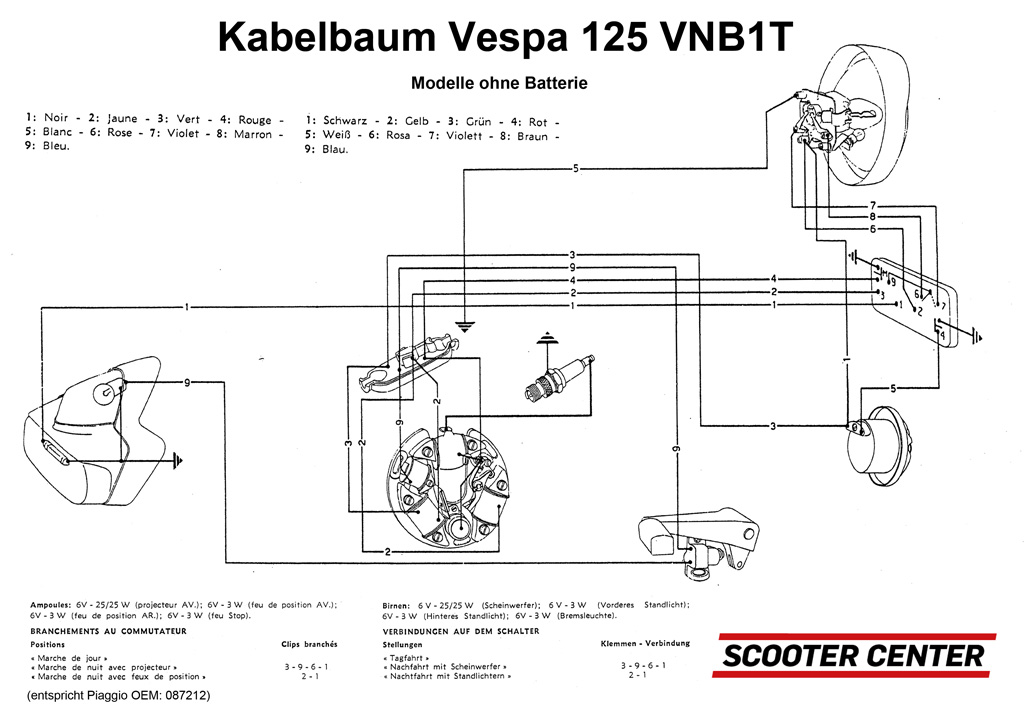

  • wiring diagram: See Downloads
  • (US)


    AI-translation

    Rate this article now and let us know what you think.
    Cable harnesses
    Rear light cable colors
    schwarz, rot
    Number of rear light cables
    2
    Brake light switch cable colors
    blau, rot
    Number of brake light switch cables
    2
    Cable colors Cable box (motor)
    gelb, grün, rot, weiß
    Number of cables Cable box (motor)
    4
    Cable colors Horn
    2x grün, weiß
    Number of cables Horn
    3
    Cable colors headlights
    braun, grün, rosa, violett, weiß
    Number of spotlight cables
    5
    Cable colors light switch
    braun, gelb, rosa, rot, schwarz, violett, weiß
    Number of light switch cables
    7
    Cable colors Voltage regulator
    blau, weiß
    Number of cables Voltage regulator
    2
    Cable colors Battery
    weiß
    Number of cables Battery
    1

    OEM numbers (for comparison purposes only)
    Piaggio:
    087212, 87212
    Scooter Center:
    1102472
