Scooter Center Item number: 3730003
Scooter Center
not available
Shipping weight 0,31 kg
Scooter Center ball bearing sets for the fast and high-quality engine revision.
The bearing sets contain high-quality standard bearings from renowned companies such as SKF, FAG, INA or similar. Exceptions are the drawing bearings which are not available as standard bearings. These are manufactured in small series by specialized companies. Due to the small quantities involved, these are naturally expensive, but are of a very high quality.

The bearing sets always contain the ball or roller bearings fitted in the motor housing and the individual bearing needles used on the auxiliary shaft. The connecting rod bearing is not included in the set.

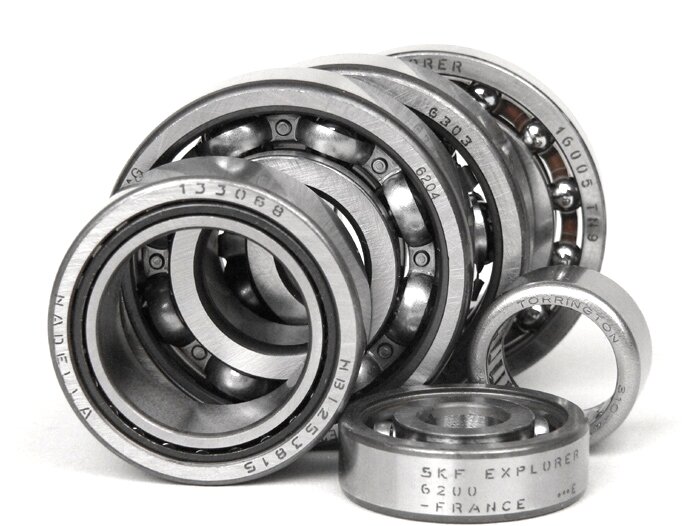

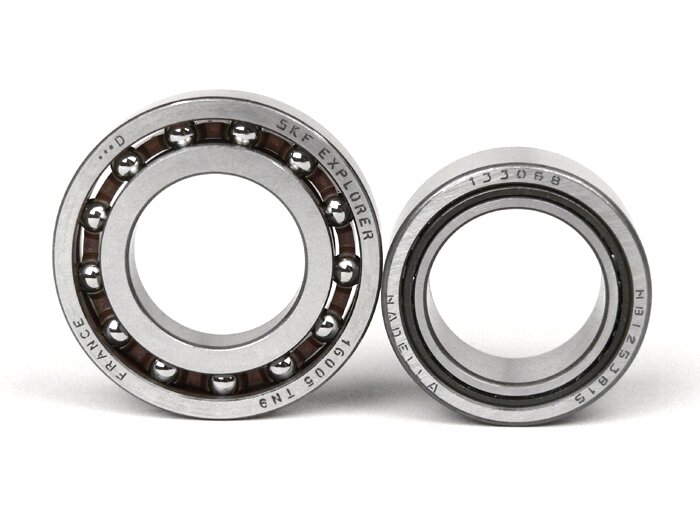

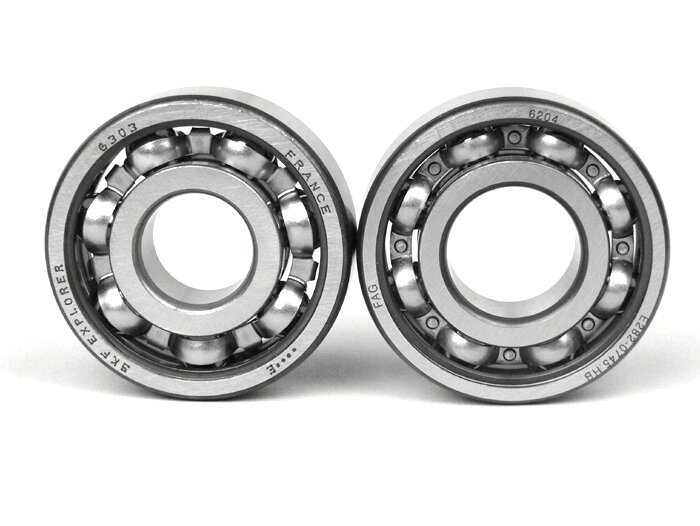

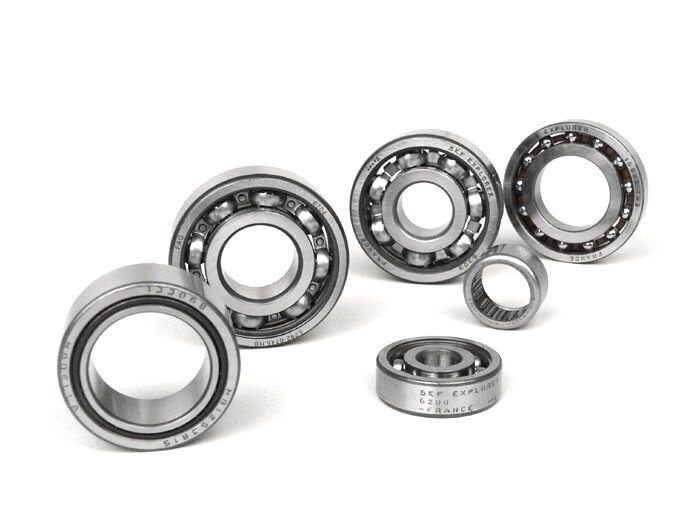

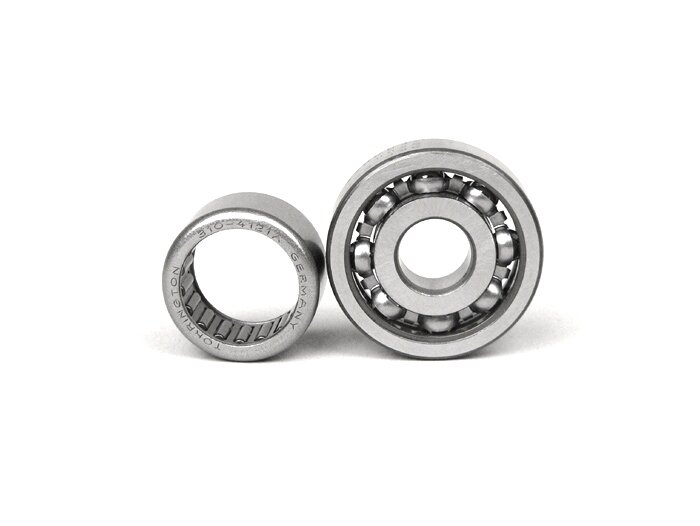

The set contains:

  • 1x crankshaft clutch side: 17x47x14mm
  • 1x crankshaft limo side (needle bearing): 25x38x15mm
  • 1x auxiliary shaft: 10x30x9mm
  • 1x auxiliary shaft 25x47x8mm
  • 1X main shaft wheel side: 20x47x14mm
  • 1x main shaft limo side (needle bearing): 16x22x12mm

AI-translation

Rate this article now and let us know what you think.
General
Quantity included in delivery
6
EAN
4250366611754

Ball bearing sets
Size bearing 1
25x38x15mm
Size bearing 2
17x47x14mm
Size bearing 3
10x30x09mm
Size bearing 4
25x47x8mm
Size bearing 5
20x47x14mm
Size bearing 6
16x22x12mm
Designation Bearing 1
NBI 253815
Designation bearing 2
6303
Designation Bearing 3
6200
Designation Bearing 4
16005
Designation Bearing 5
6204
Designation Bearing 6
HK 1612
