We have tried with the help of all available manufacturer information and our years of experience to address the issue of brake components as error-free as possible,
however, this is unfortunately not 100% possible.
Depending on the availability at the time of vehicle production, the vehicle manufacturers may use different combinations of the installed components.
Therefore, we must ask you in case of doubt before ordering to check the compatibility based on the product photos and the specified dimensions.
Of course a return of wrongly ordered articles is sufficiently stamped and in the as good as new / saleable condition within the legal periods possible.
Thank you for your understanding.

The internationally renowned brake disc specialist NG Brake Disc is a Spanish family business that has been producing brake discs for motorcycles, scooters, quads and ATVs for more than 20 years. More than 30 well-known European and Japanese vehicle manufacturers trust in the top quality of NG and equip their vehicles ex works with NG manufactured brake discs.

As one of the few manufacturers, all NG brake discs have TÜV Rheinland certification and may be driven in public road traffic. The general type approval of the German Federal Motor Transport Authority (KBA) is supplied with every brake disc.

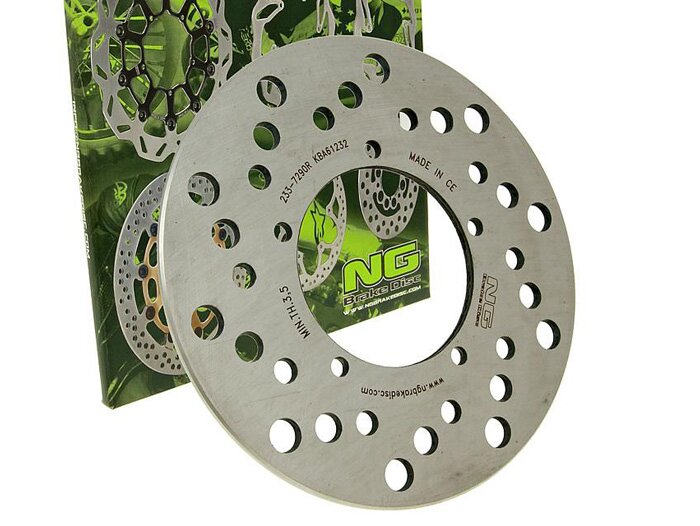

The dimensions of the brake disc supplied correspond completely to the original brake disc. However, the design may differ for some models.

  • Road approval of the Kraftfahrtbundesamt: yes
  • outer diameter: 175mm
  • Inner diameter (mounting): 73mm
  • thickness: 4,0mm
  • holes: 5
  • Hole diameter: 6,5mm
  • Type: Standard

    Vehicle allocation for brake disc NG233

    DERBI

    GP 1 50 REPLICA - 2001-2004 (rear)
    GP 1 OPEN/ GP 1 MALOSSI - 2008-2009 (rear)
    PREDATOR 125 - 2002 (rear)
    PREDATOR 180 - 2002 (rear)

    GILERA

    STALKER 50 - 1996-2003 (rear)

    PIAGGIO

    NGR 50 RSTMC2 - 1996-1998 (rear)
    NRG 50 DD - 2012 (rear)
    NRG 50 EXTREME DD/ DT - 1999-2003 (rear)
    NRG 50 JET - 2003 (rear)
    NRG 50 MC 3 DD - 2001-2003 (rear)
    NRG 50 POWER PUREJET - 2002-2003 (rear)
    NRG 50 POWER PUREJET - 2004 (rear)
    NRG EXTREME MC 2 DD/DT - 1996-1998 (rear)
    NRG MC 3 DT AIR - 2001-2002 (rear)
    ZIP 50 2T - 2000 (front)
    ZIP 50 4T - 2000-2008 (front)
    ZIP 50 CATALYZED - 2000-2002 (front)
    ZIP 50 ELECTRICO - 2000 (front)
  • AI-translation

    Rate this article now and let us know what you think.
    General
    Quantity included in delivery
    1
    EAN
    4250362494290

    Brake disks
    Outside diameter
    175 mm
    Inner diameter
    73 mm
    Bolt circle diameter
    86 mm
    Strength
    4 mm
    Number of screws
    5
    Fixing hole diameter
    6.5 mm
    Screw heads
    ULS-Halbrundkopf
    Oversize
    nein
    Wave
    nein
    floating bearing
    nein
    corresponds to Braking
    GL06RI
    corresponds to EBC
    MD932
    corresponds to Newfren
    DF.4013 A
    corresponds to HTF
    BD 013 ST
    corresponds to TRW Lucas
    MST255
    corresponds to Piaggio
    56396R
    corresponds to Galfer
    DF705W
    corresponds to Ferodo
    FMD0210
