Piaggio Item number: 7670177
Piaggio
54,00 €*
Ready for dispatch in 72h
Shipping weight 0,57 kg
Original PIAGGIO spare part in the usual good OEM quality!

We have tried with the help of all available manufacturer information and our years of experience to address the issue of brake components as error-free as possible,
but this is unfortunately not 100% possible.
Depending on the availability at the time of vehicle production, the vehicle manufacturers may use different combinations of the installed components.
Therefore, we must ask you in case of doubt before ordering to check the compatibility based on the product photos and the specified dimensions.
Of course a return of wrongly ordered articles is sufficiently stamped and in the as good as new / saleable condition within the legal periods possible.
Thank you for your understanding.

AI-translation

Rate this article now and let us know what you think.
General
Quantity included in delivery
1

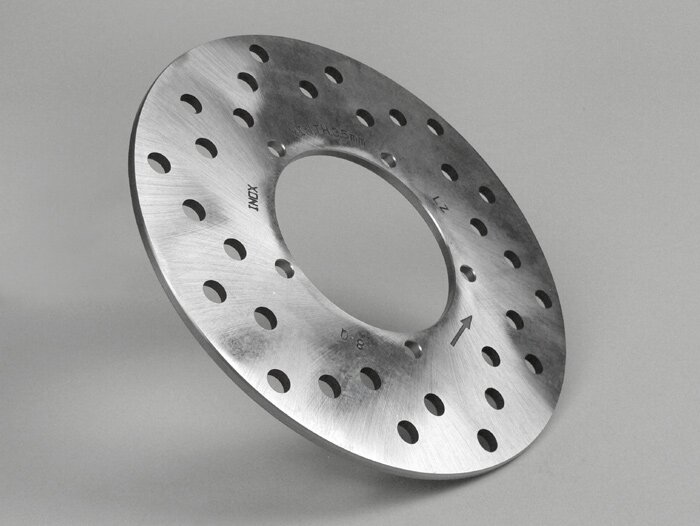

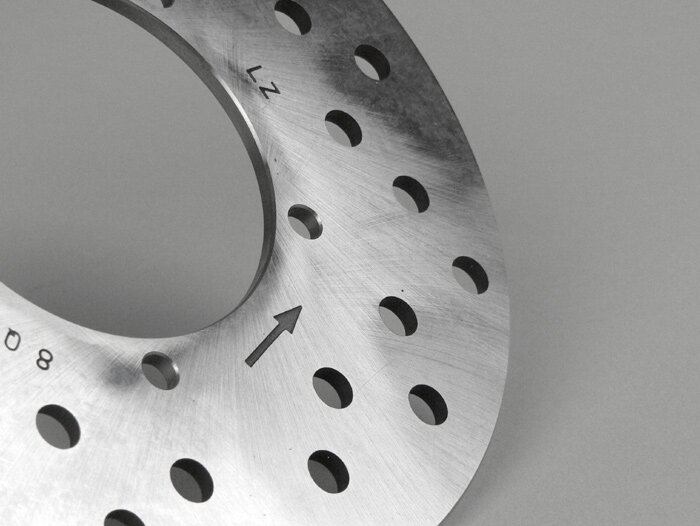

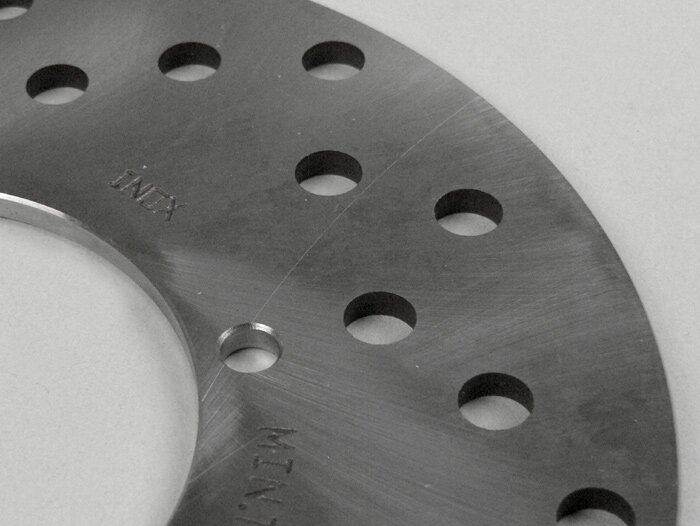

Brake disks
Outside diameter
175 mm
Inner diameter
73 mm
Bolt circle diameter
86 mm
Strength
4 mm
Number of screws
5
Fixing hole diameter
6.5 mm
Screw heads
ULS-Halbrundkopf
Oversize
nein
Wave
nein
floating bearing
nein
corresponds to Braking
GL06RI
corresponds to EBC
MD932
corresponds to Newfren
DF.4013 A
corresponds to HTF
BD 013 ST
corresponds to TRW Lucas
MST255
corresponds to Piaggio
56396R
corresponds to Galfer
DF705W
corresponds to Ferodo
FMD0210

OEM numbers (for comparison purposes only)
Piaggio:
56396R
