We have tried with the help of all available manufacturer information and our years of experience to address the issue of brake components as error-free as possible,
however, this is unfortunately not 100% possible.
Depending on the availability at the time of vehicle production, the vehicle manufacturers may use different combinations of the installed components.
Therefore, we must ask you in case of doubt before ordering to check the compatibility based on the product photos and the specified dimensions.
Of course a return of wrongly ordered articles is sufficiently stamped and in the as good as new / saleable condition within the legal periods possible.
Thank you for your understanding.

The internationally renowned brake disc specialist NG Brake Disc is a Spanish family business that has been producing brake discs for motorcycles, scooters, quads and ATVs for more than 20 years. More than 30 well-known European and Japanese vehicle manufacturers trust in the top quality of NG and equip their vehicles ex works with NG manufactured brake discs.

As one of the few manufacturers, all NG brake discs have TÜV Rheinland certification and may be driven in public road traffic. The general type approval of the German Federal Motor Transport Authority (KBA) is supplied with every brake disc.

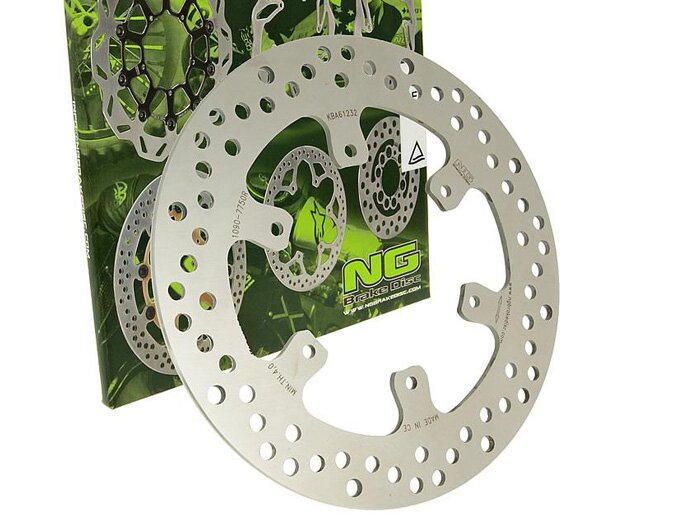

The dimensions of the brake disc supplied correspond completely to the original brake disc. However, the design may differ for some models.

  • Road approval of the Kraftfahrtbundesamt: yes
  • Outer diameter: 240mm
  • Inner diameter (mounting): 105mm
  • thickness: 4,0mm
  • holes: 6
  • Hole diameter: 6,5mm
  • Type: Standard

    Vehicle Allocation for Brake Disc NG1090

    BMW

    G 650 X CHALLENGE - 2007-2008 (rear)
    G 650 X COUNTRY - 2007-2009 (rear)
    G 650 X COUNTRY ABS - 2007-2009 (rear)
    G 650 X COUNTRY ABX - 2007-.2009 (rear)

    GILERA

    RUNNER 125 - 2008 (front)
    RUNNER ST 125 - 2012 (front)
    RUNNER VX 125 - 2006-2007 (front)
    RUNNER VXR 125 4T - 2005-2007 (front)
    RUNNER VXR 200 - 2006-2008 (front)
    FUOCO 500 I.E. - 2007-2009 (front)

    PIAGGIO

    LIBERTY 50 2T/ 4T - 2010-2012 (front)
    LIBERTY 4T/ LIBERTY RST 4T - 2010-2011 (front)
    MP3 125/ I.E. - 2006-2009 (front)
    MP3 125 HIBRIDO - 2009-2010 (front)
    MP3 125 RL - 2006-2007 (front)
    MP3 250/ MP3 250 RL - 2006-2007 (front)
    MP3 250 MIC - 2008-2009 (front)
    MP3 300 LT/ IE LT - 2010-2011 (front)
    MP3 300 MIC/ IE MIC - 2010 (front)
    MP3 LT - 2008-2011 (front)
    MP3 LT SPORT - 2008-2010 (front)
    MP3 MIC - 2008-2009 (front)
  • AI-translation

    This is how we ensure, that reviews come from real consumers.
    Anonym  03/16/2016

    Some scrats on the side were were writings. I haven´t open the other disk box yet.

    General
    Quantity included in delivery
    1
    EAN
    4250362494955

    Brake disks
    Outside diameter
    240 mm
    Inner diameter
    105 mm
    Bolt circle diameter
    120 mm
    Strength
    4.5 mm
    Number of screws
    6
    Fixing hole diameter
    6.5 mm
    Screw heads
    ULS-Halbrundkopf
    Oversize
    nein
    Wave
    nein
    floating bearing
    nein
    corresponds to TRW Lucas
    MST394
    corresponds to Piaggio
    649226

    OEM numbers (for comparison purposes only)
    Piaggio:
    601749 - 56394R - 649226
