We have tried with the help of all available manufacturer information and our years of experience to address the issue of brake components as error-free as possible,
however, this is unfortunately not 100% possible.
Depending on the availability at the time of vehicle production, the vehicle manufacturer can come to different combinations of the installed components.
Therefore, we must ask you in case of doubt before ordering to check the compatibility based on the product photos and the specified dimensions.
Of course, a return of incorrectly ordered items is sufficiently stamped and in mint / saleable condition within the statutory periods possible.
Thank you for your understanding.

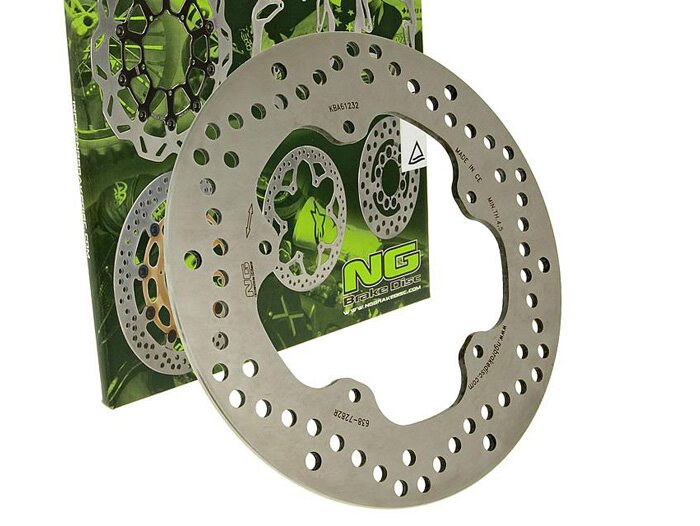

The internationally renowned brake disc specialist NG Brake Disc is a Spanish family business that has been producing brake discs for motorcycles, scooters, quads and ATVs for more than 20 years. More than 30 well-known European and Japanese vehicle manufacturers trust in the top quality of NG and equip their vehicles ex works with NG manufactured brake discs.

As one of the few manufacturers, all NG brake discs have TÜV Rheinland certification and may be driven on public roads. The general operating permit of the Federal Motor Transport Authority KBA is supplied with every brake disc.

The dimensions of the supplied brake disc correspond completely to the original brake disc. However, the design may differ for some models.

  • Road approval of the Kraftfahrtbundesamt: yes
  • Outer diameter: 240mm
  • Inner diameter (receptacle): 125mm
  • thickness: 5,0mm
  • holes: 5
  • Hole diameter: 6,5mm
  • Type: Standard

    Vehicle allocation Brake disc NG638

    GILERA

    DNA 50 - 2002-2007 (front)
    RUNNER FX 125 - 1997-2002 (rear)
    RUNNER FX 125 SP - 1999-2001 (rear)
    RUNNER FXR 180 - 1997-2003 (rear)
    RUNNER FXR 180 SP - 1999-2000 (rear)
    RUNNER SP 180 - 1999-2002 (rear)
    FUOCO 500 I.E. - 2007-2009 (rear)

    PIAGGIO

    MP3 125/ I.E. - 2006-2009 (rear)
    MP3 125 HIBRIDO - 2009-2010 (rear)
    MP3 125 RL - 2006-2007 (rear)
    X7 125/ X7 EVO 125 IE - 2008-2011 (rear)
    X8 125 - 2004-2009 (rear)
    X9 125 4T - 2001-2008 (rear)
    X9 125 4T - 2001-2008 (front)
    X-EVO 125 - 2007-2011 (rear)
    SUPER HEXAGON GTX-12 - 2001-2003 (front)
    X9 180 AMALFI 4T - 2000-2003 (front)
    X9 180 AMALFI 4T - 2000-2003 (rear)
    X8 200 - 2004 (rear)
    X9 200 - 2002-2003 (front)
    X9 200 - 2002-2003 (rear)
    MP3 250/ MP3 250 RL - 2006-2007 (rear)
    MP3 250 MIC - 2008-2009 (rear)
    X7 250 - 2008-2009 (rear)
    X8 250 PREMIUM I.E. - 2006-2009 (rear)
    X9 250 - 2000-2007 (front)
    X9 250 - 2000-2007 (rear)
    X9 250 EVOLUTION - 2000-2007 (front)
    X9 250 EVOLUTION - 2000-2007 (rear)
    X-EVO 250 I.E. - 2007-2010 (rear)
    MP3 300 LT/ IE LT - 2010-2011 (rear)
    MP3 300 MIC/ IE MIC - 2010 (rear)
    X7-EVO 300 I.E. - 2009-2011 (rear)
    BEVERLY 400 I.E. - 2006 (rear)
    BEVERLY TOURER 400 I.E. - 2007-2008 (rear)
    MP3 LT - 2008-2011 (rear)
    MP3 LT SPORT - 2008-2010 (rear)
    MP3 MIC - 2008-2009 (rear)
    X8 400 IE - 2006-2009 (rear)
    X-EVO 400 I.E. - 2007-2010 (front)
    X-EVO 400 I.E. - 2007-2010 (rear)
    BEVERLY 500 - 2002-2004 (rear)
    BEVERLY CRUISER 500 I.E. - 2007-2008 (rear)
    X9 500 4T - 2001-2002 (rear)
    X9 500 EVOLUTION - 2004 (rear)
  • AI-translation

    Rate this article now and let us know what you think.
    General
    Quantity included in delivery
    1
    EAN
    4250362493743

    Brake disks
    Outside diameter
    240 mm
    Inner diameter
    126 mm
    Bolt circle diameter
    140 mm
    Strength
    4.5 mm
    Number of screws
    5
    Fixing hole diameter
    6.5 mm
    Screw heads
    ULS-Halbrundkopf
    Oversize
    nein
    Wave
    nein
    floating bearing
    nein
    corresponds to Braking
    GL01RI
    corresponds to TRW Lucas
    MST395
    corresponds to Piaggio
    56498R

    OEM numbers (for comparison purposes only)
    Piaggio:
    56392R, 564371
    Derbi:
    00G01304531
    Gilera:
    56498R, 597520, 649163
