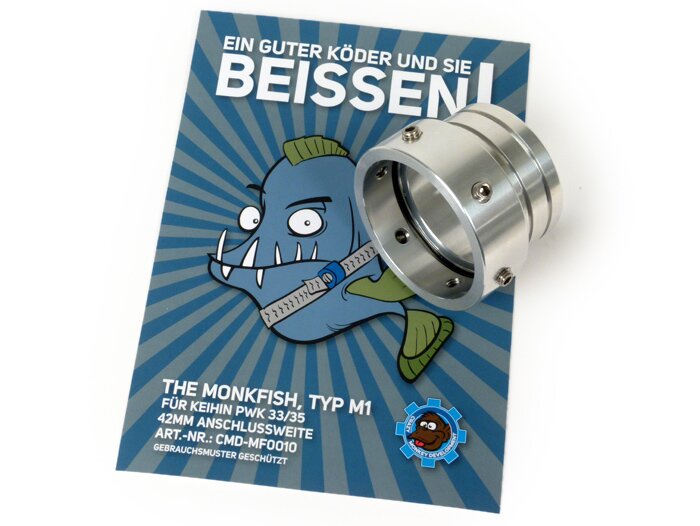

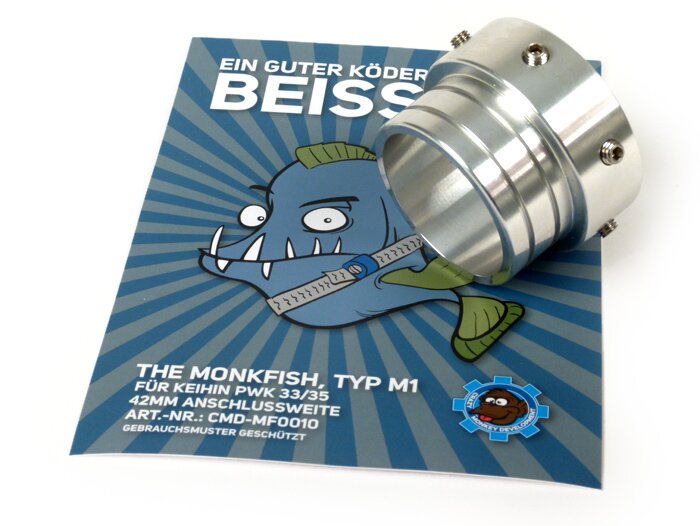

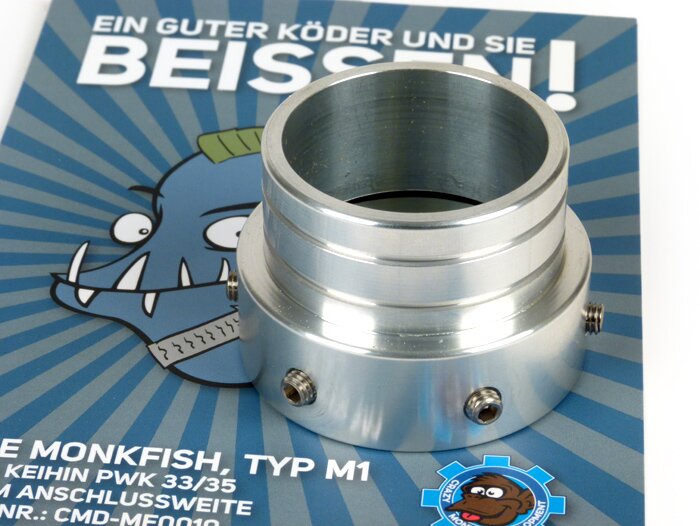

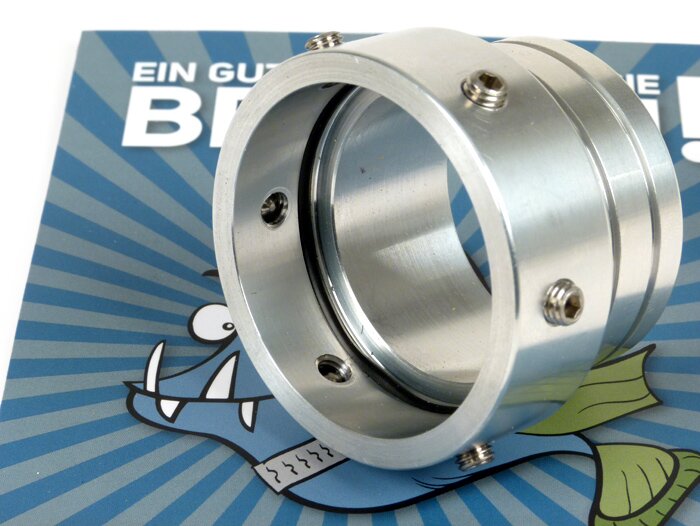

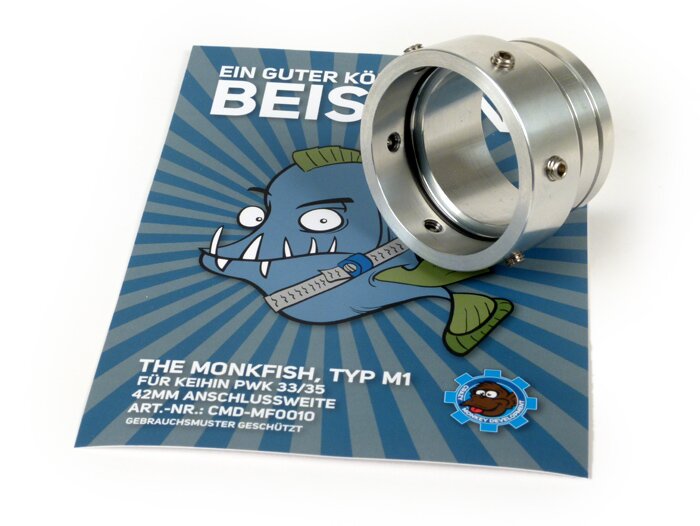

Caburator fixation -CMD The Monkfish Typ M1- Keihin PWK33, PWK35 - AW=Ø42mm

Carburettor connection CMD The Monkfish, type M1, for Keihin PWK 33/35 and identical in construction
Extended sealing surface for connecting rubber to the intake connection

• Connection width: 42mm
• Material: aluminium
• turned part
• incl. O-ring 42x2mm
• Threaded pins: M5x5mm (with tip), 6+1 pcs.

  Anyone who uses a large carburettor on his tuned engine will have been faced with the question of whether the rubber connecting the intake manifold is able to hold the sometimes very heavy carburettors securely. Especially considering the short connecting surfaces on the carburettor. Nothing is worse than a carburettor that drops off while driving and the supply of fresh mixture is suddenly interrupted.

  The so-called Monkfish from CMD.
  With its 6 sharp teeth (= grub screws with point) and the extra large sealing and mounting surface for intake rubbers, the so-called Monkfish from CMD.
  remedies this problem.
  Perfectly adapted to the respective carburetor, it ensures the correct seat and good hold.
  Including O-ring seal. Depending on the condition of the carburetor surface, some sealing compound can be used here for support.

  Scope of delivery

  • Aluminum turned part
  • 6+1 grub screws M5
  • O-ring
