BGM PRO Item number: BGM8521
BGM PRO

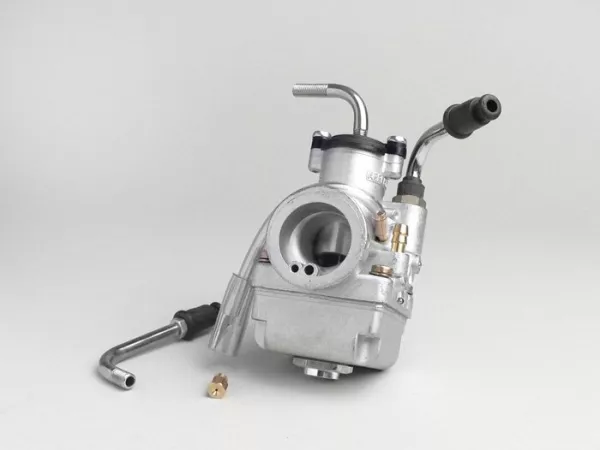

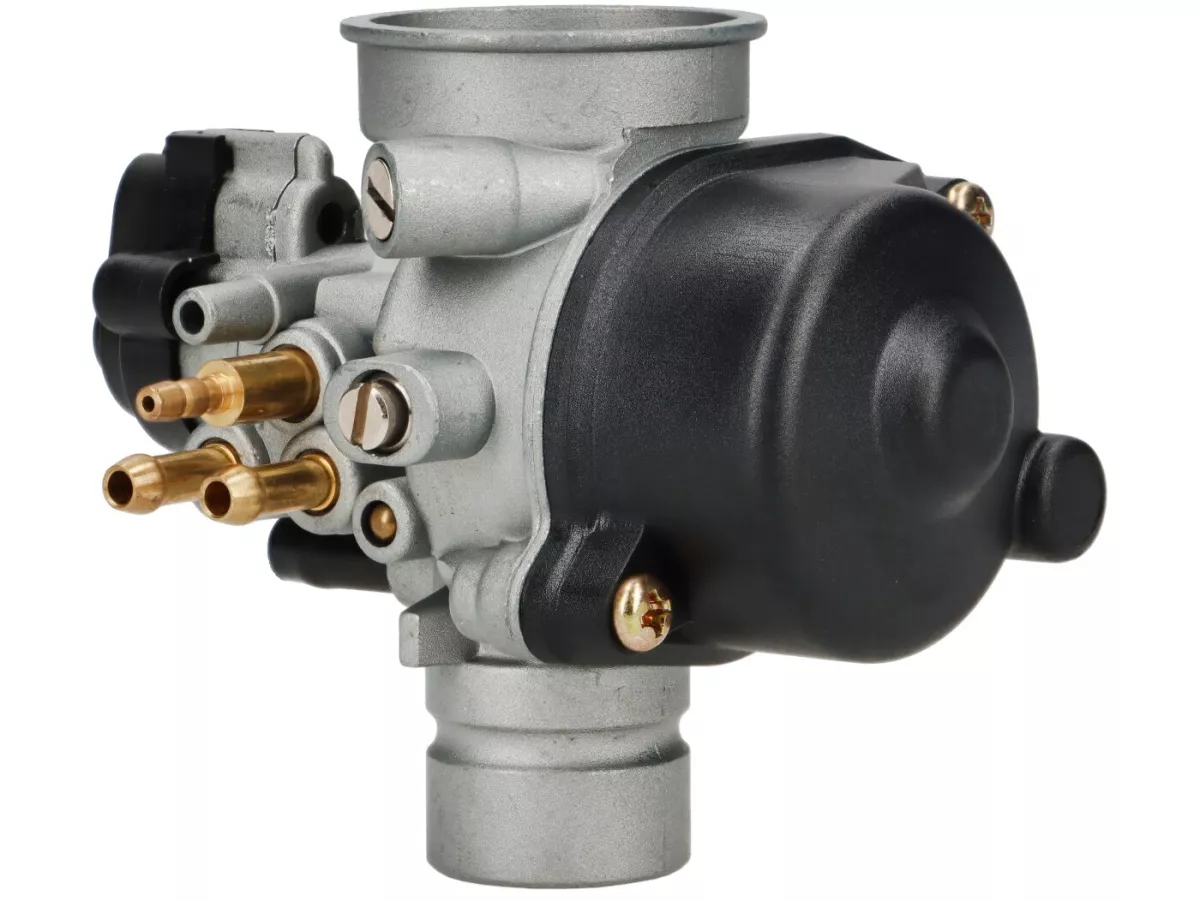

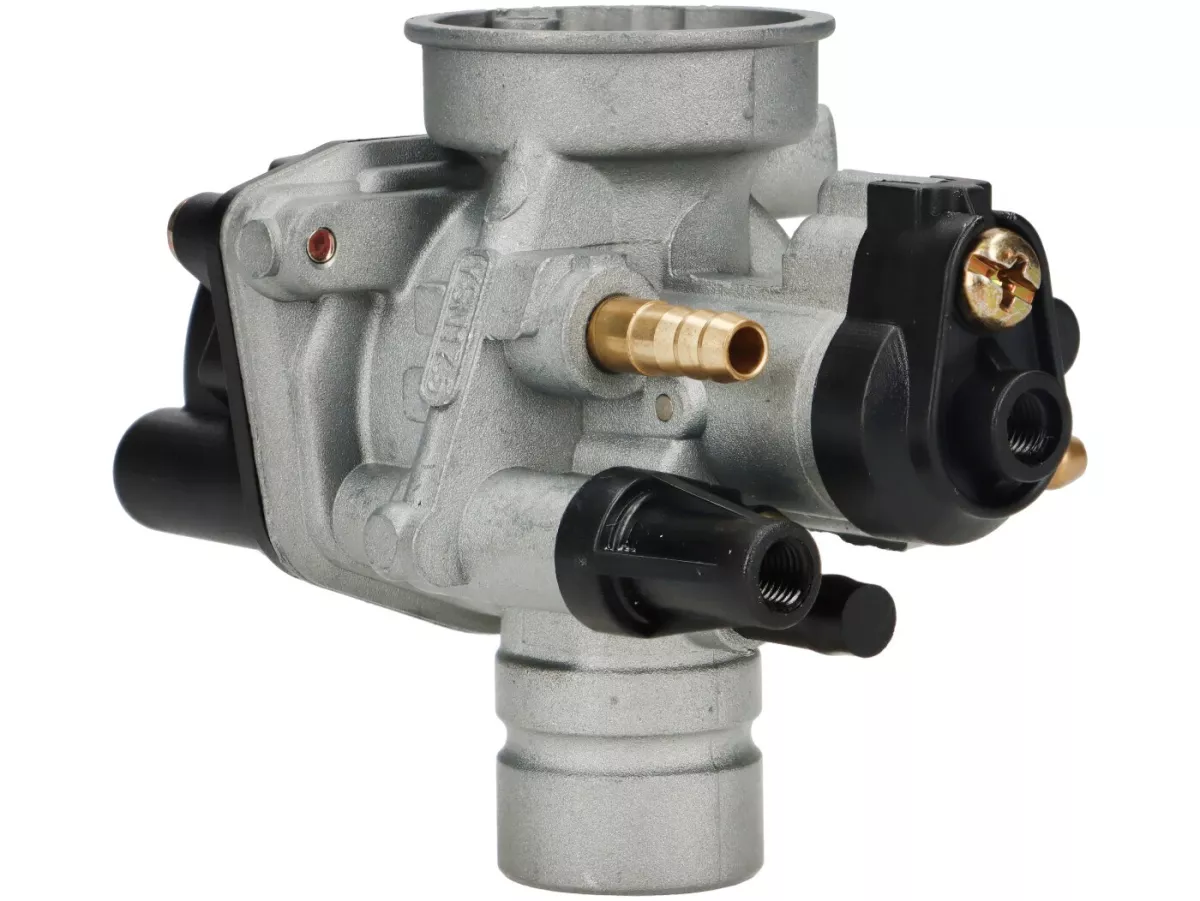

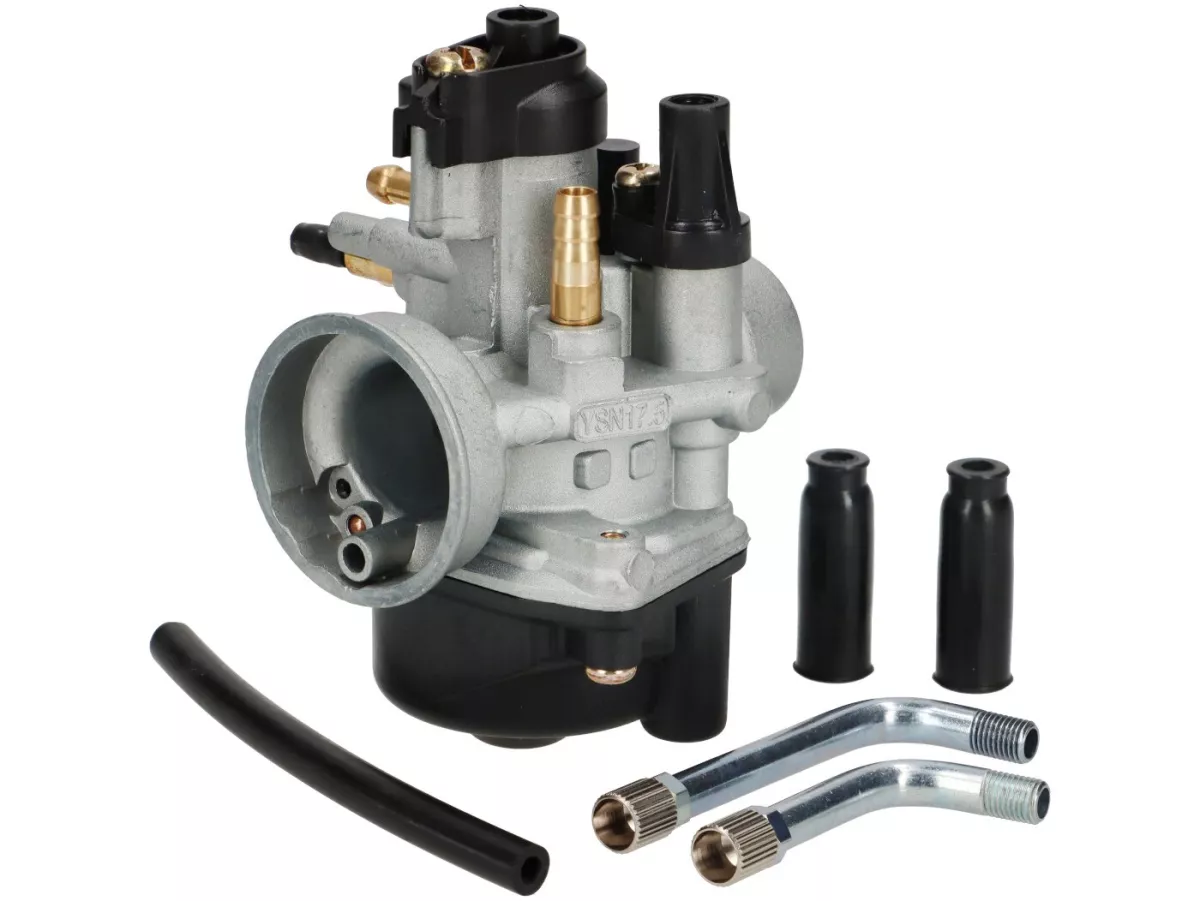

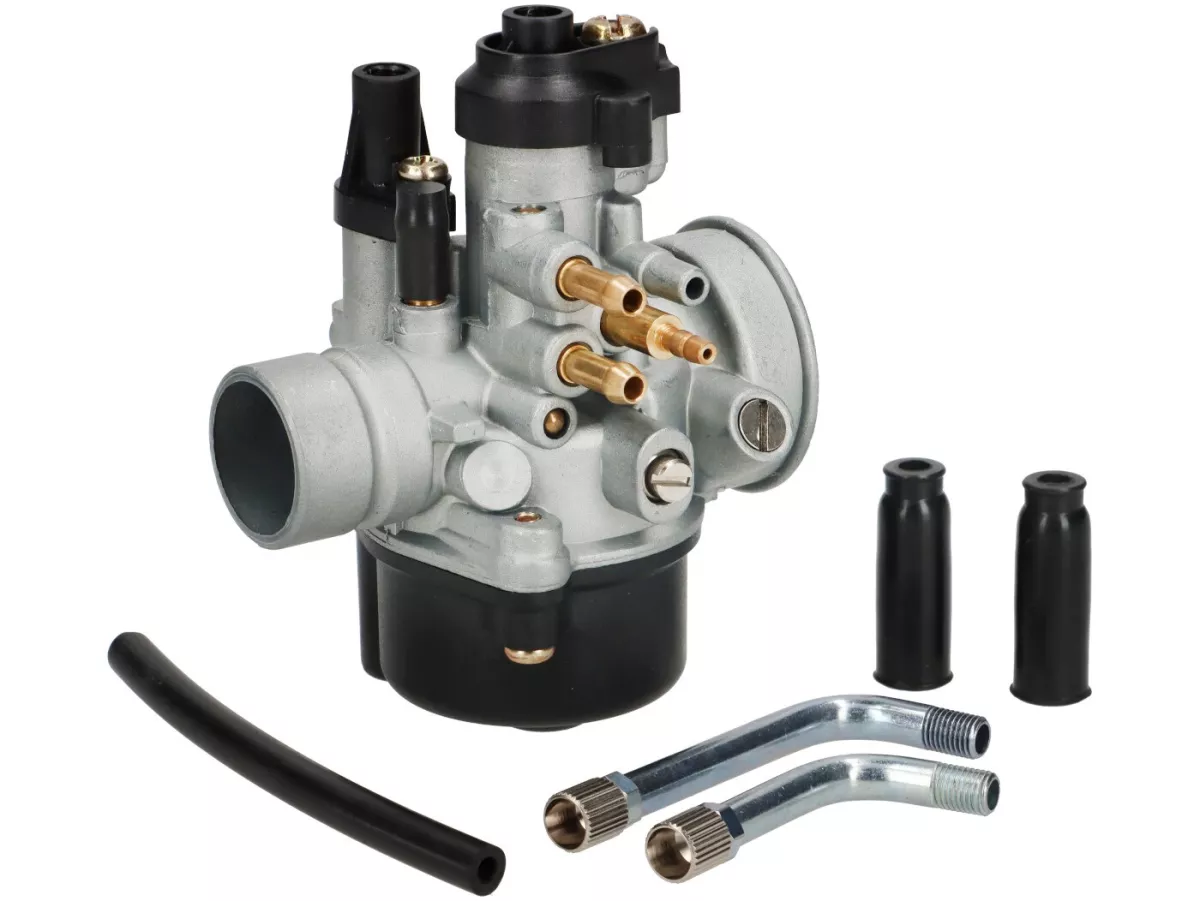

Carburettor -BGM PRO PHBN 17,5- Minarelli 50 cc (manual choke) - CS=23mm-

3 Ratings
49,00 €*
available immediately
Shipping weight 0,39 kg
Information on product safety
Report error
Carburettor -PHBN 17,5- Minarelli 50ccm - manual choke.

The PHB carburettors are a constant in the scooter sector.

They are characterized by an easy installation and a good tuning. If a DellOrto PHB carburettor is already installed on the vehicle, changing to a larger model of the same type is possible without any problems.

The PHB 17.5 mm helps all 70cc cylinders to even more power and acceleration. Absolute compulsory part to ride in front.

Connection width for air filter 35mm.
AI-translation/sub>

This is how we ensure, that reviews come from real consumers.
Anonym  05/15/2019

estamos en proseso de montage del ciclomotor pero se aprecia buena calidad

David H. from Eisenberg 08/05/2025
Simon M. from Frechen 09/29/2025
Rate this product now
Carburetor
Main nozzle size
90
Main nozzle type
Dellorto 6mm (6413)
Secondary nozzle type
Dellorto 4mm (11600)
Choke nozzle type
Dellorto (14770)
Needle type
Dellorto A (16250)
Slider type
Rundschieber
Choke type
manuell Seilzug
Connection type Intake manifold
Gummiverbindung
Position of mixture screw
links
Fuel hose position
rechts
Fitting type
M6 x 0.75
Float chamber material
Kunststoff
Size of secondary nozzle
34
Choke nozzle size
50
Needle size
A12
Mixing tube size
GA214
has Powerjet
nein
Slider size
40
Height
98 mm
Width
65 mm
Depth
75 mm
Relative connection height
46.5 mm
Connection width air filter
38 mm
Connection width of intake manifold
23 mm
Fuel hose connection width
5.5 mm
has oil connection
ja
has vacuum connection
ja
Venturi size
17.5 mm
Connection type Air filter
geklemmt
Position of idle throttle screw
links
