Newfren Item number: 9021026
Newfren
185,00 €*
not available
Shipping weight 1,6 kg

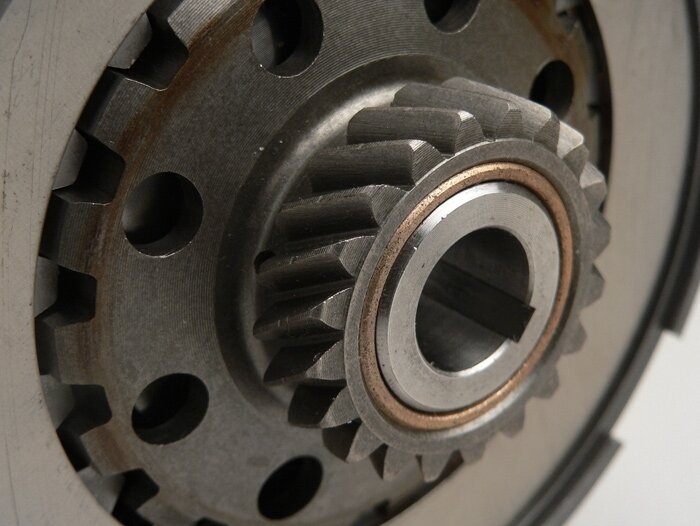

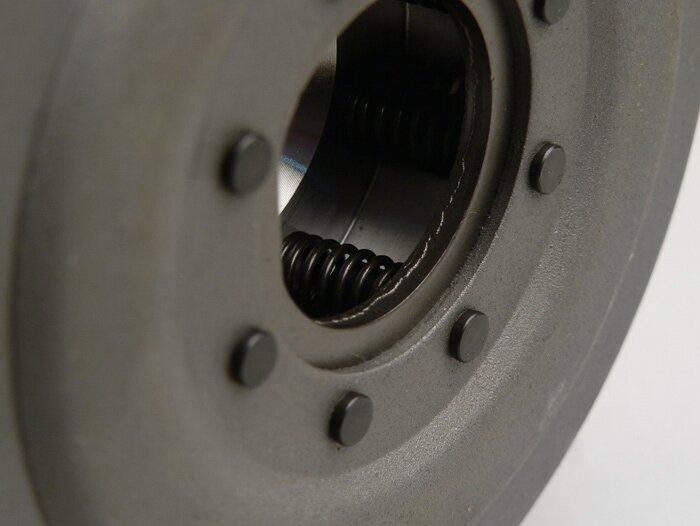

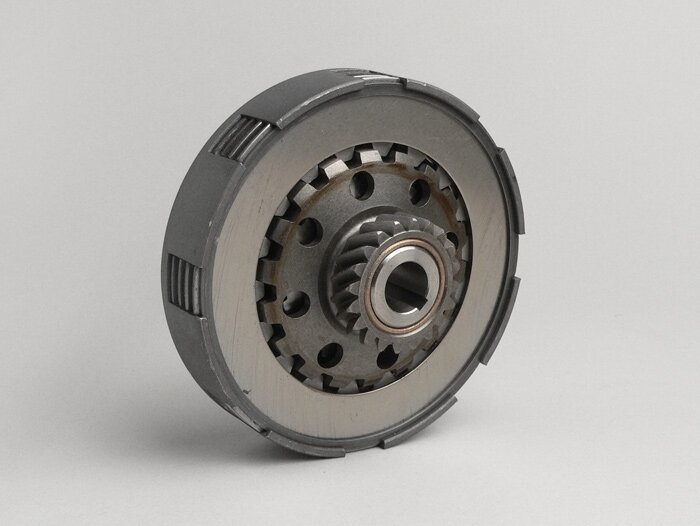

Clutch -NEWFREN Vespa Cosa2- 4-disc original replica clutch from NEWFREN for the Vespa Cosa models. The clutch can also be installed in PX engines depending on the number of clutch pinion teeth. There is this clutch with different pinions to translate if necessary an engine with it longer or shorter. It is a 4 disc clutch. A new nut/spring washer is used instead of the castle nut version. The Cosa clutch was used as the basis for the BGM Superstrong clutches. (TW100123) AI-translation

Rate this article now and let us know what you think.
Clutch (Largeframe, Wideframe)
Clutch pinion height
9.5 mm
Inner diameter
108 mm
Covering material
Kork
Friction disk thickness
3.5 mm
Reinforced clutch basket
nein
Manufacturing process Basket
tiefgezogen
Basket diameter (inside)
108.8 mm
Basket diameter (outside)
115 mm
Number of steel disks
3
Number of friction disks
4
Number of springs
8
Teeth Clutch pinion
22

Gearbox shift scooter
Number of teeth small primary gear
22
Combinable primary wheels
67 Zähne schrägverzahnt (Piaggio), 68 Zähne schrägverzahnt (Piaggio), 65 Zähne schrägverzahnt (DRT Ritzel)
