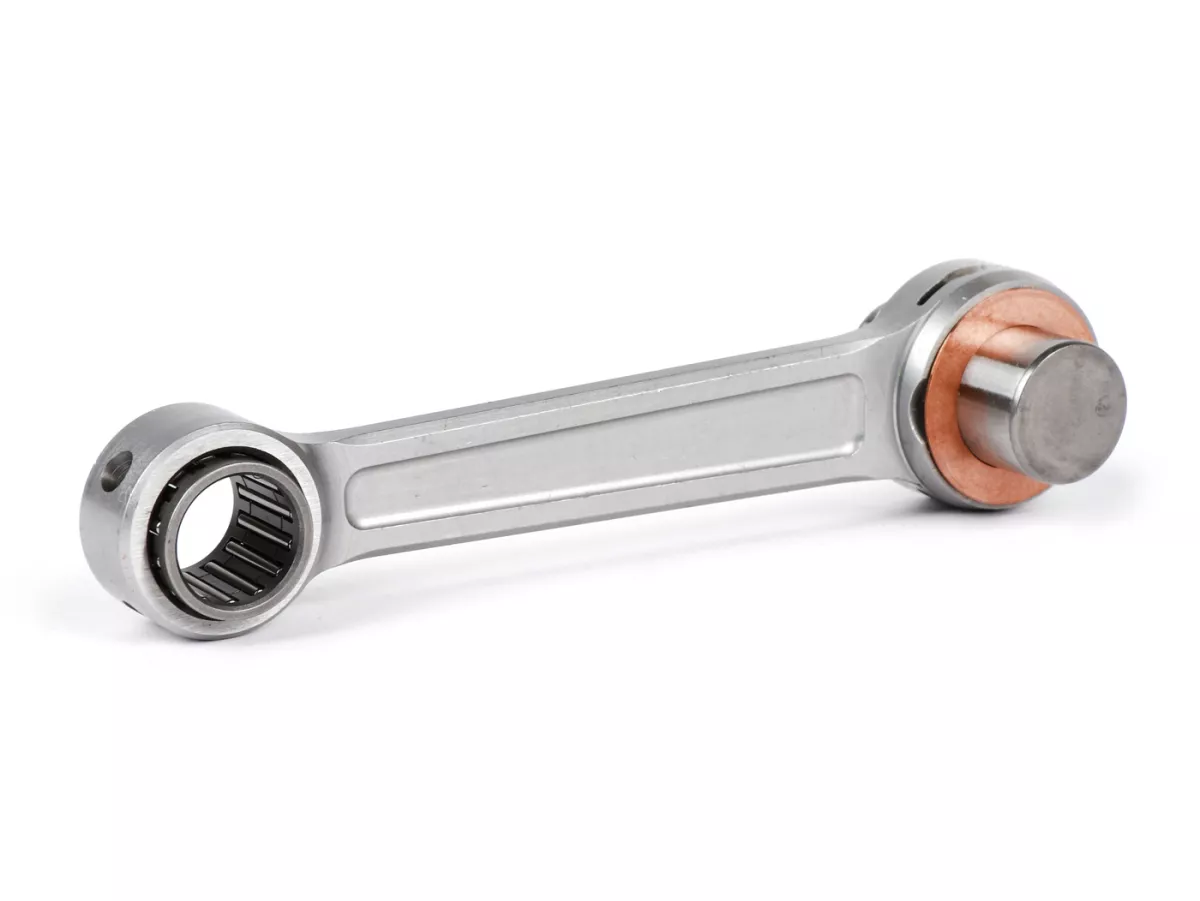

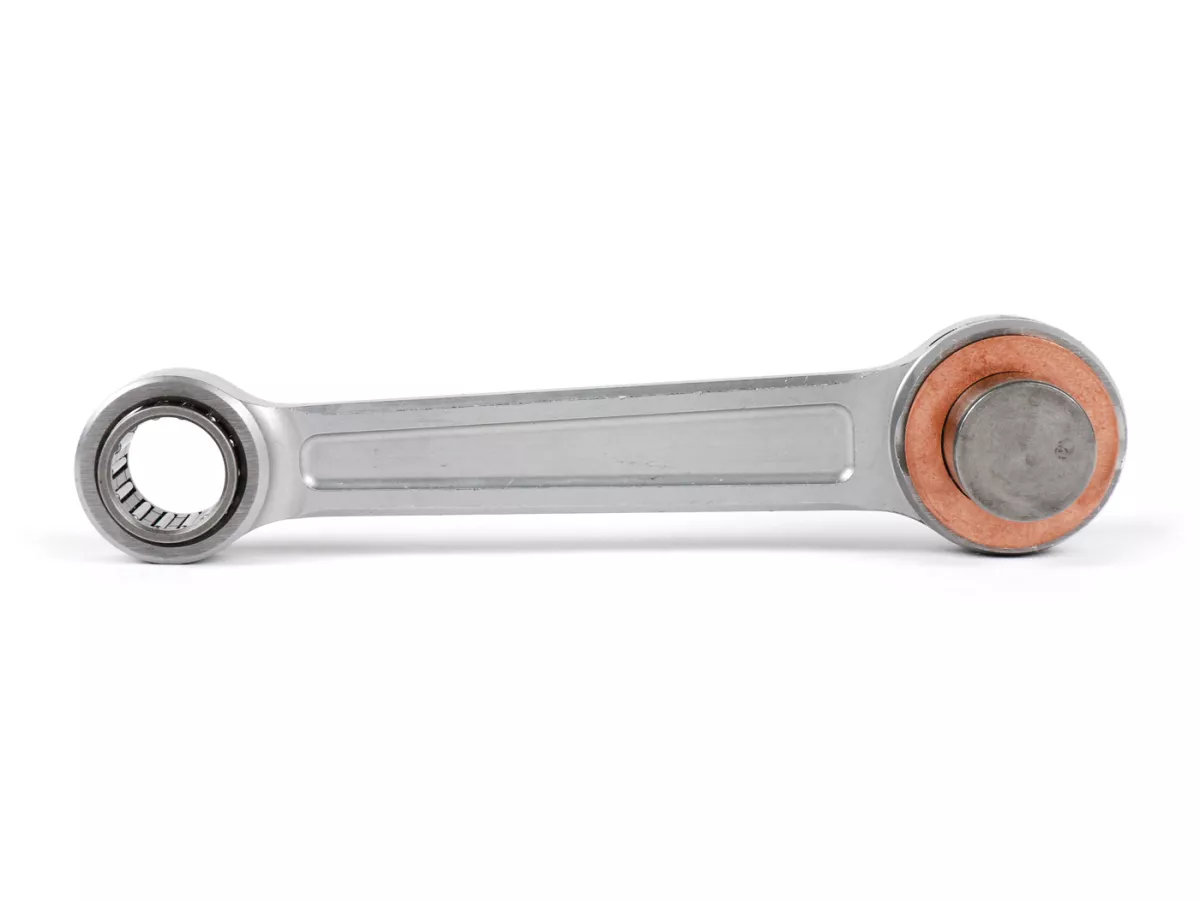

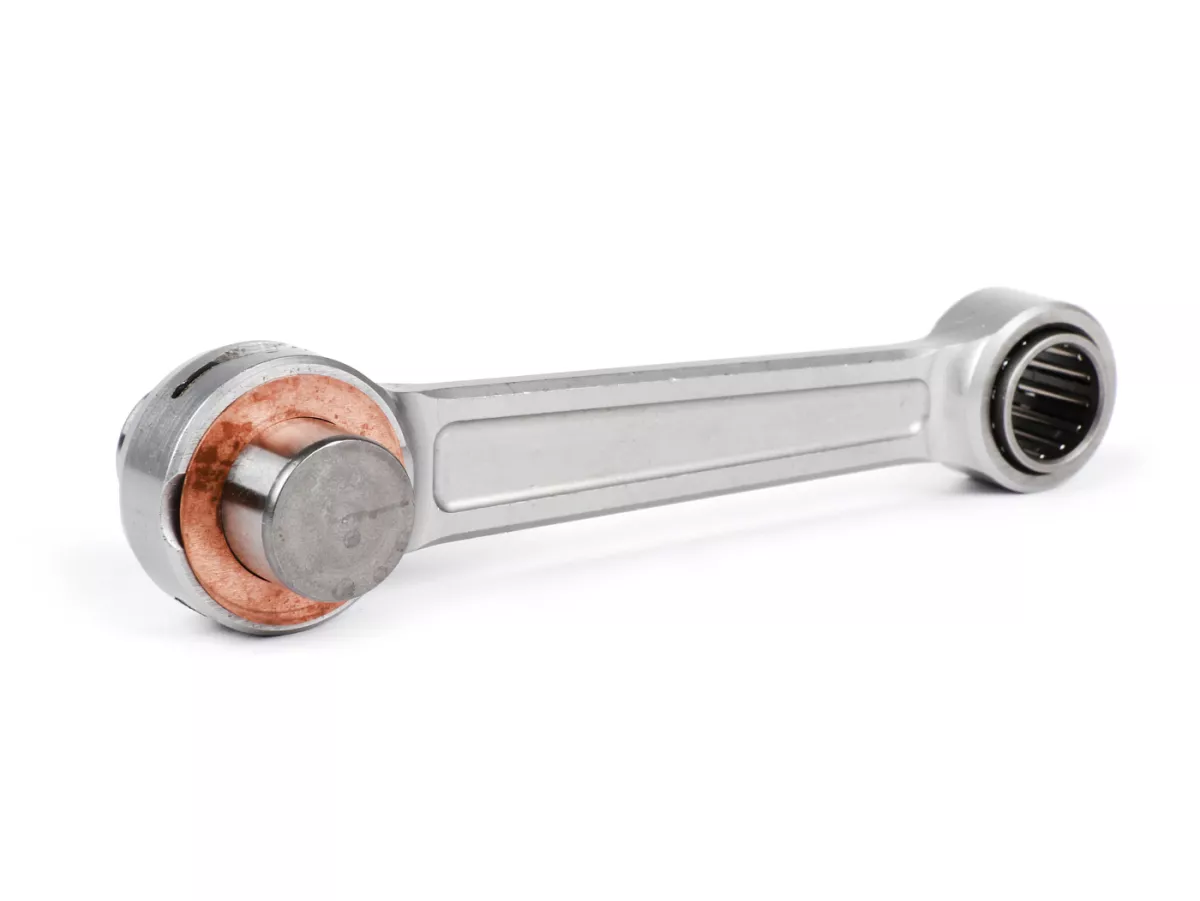

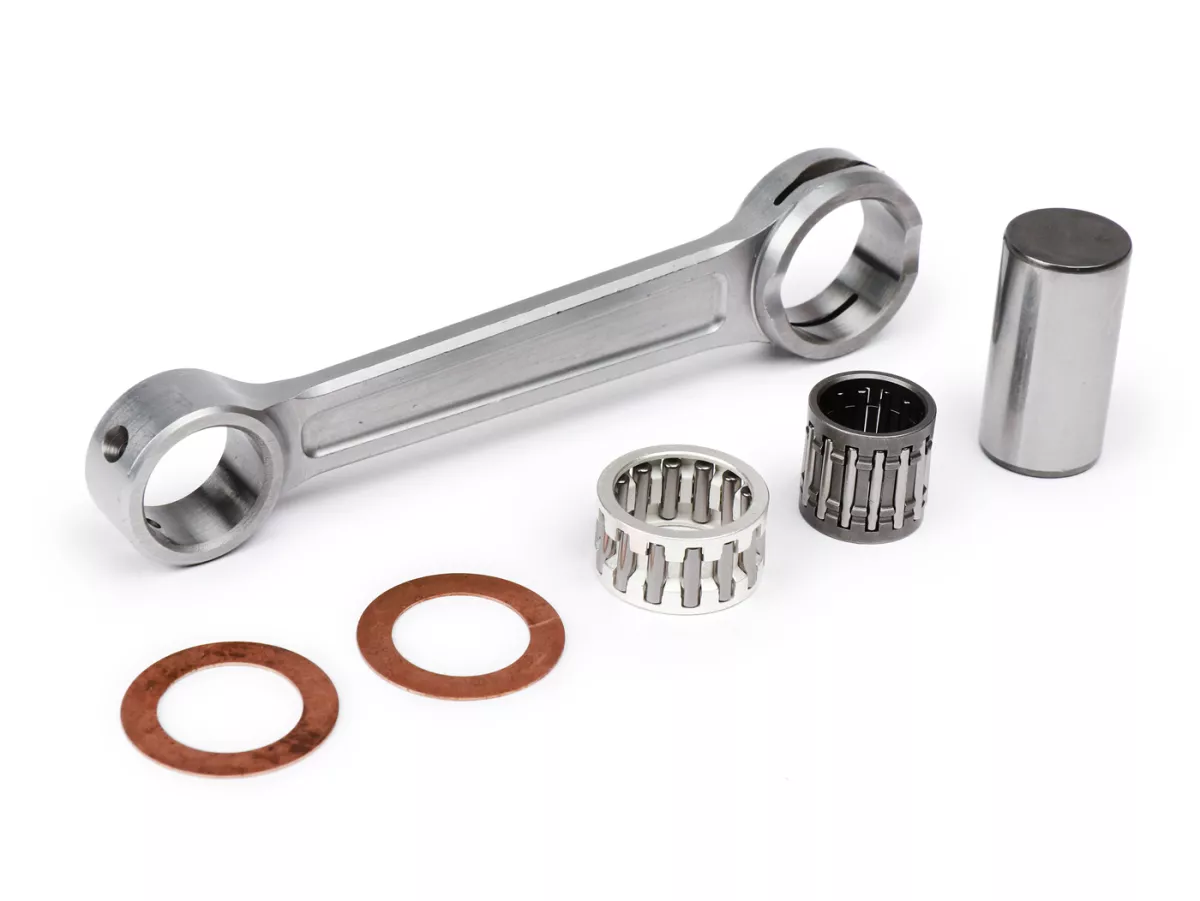

Conrod -BGM PRO-adaptable to crankshaft BGM0318, 120mm, gudgeon pin Ø16mm, crank pin Ø20mm

CONNECTING ROD BGM PRO 120MM FOR VESPA PX125/200

High-strength, forged connecting rod with fine CNC finishing.
A longer connecting rod improves the connecting rod ratio. It reduces vibrations over the entire speed range and audibly reduces the tilting moment of the piston in the reverse positions. Depending on the selected length and concept of the cylinder used, a suitable spacer is required for the cylinder base. The connecting rod is suitable for crankshafts with Ø20mm crankpins.

• Length of axis centers: 120mm

• Bore of crankpin: Ø26mm

  • Crank pin: Ø20mm

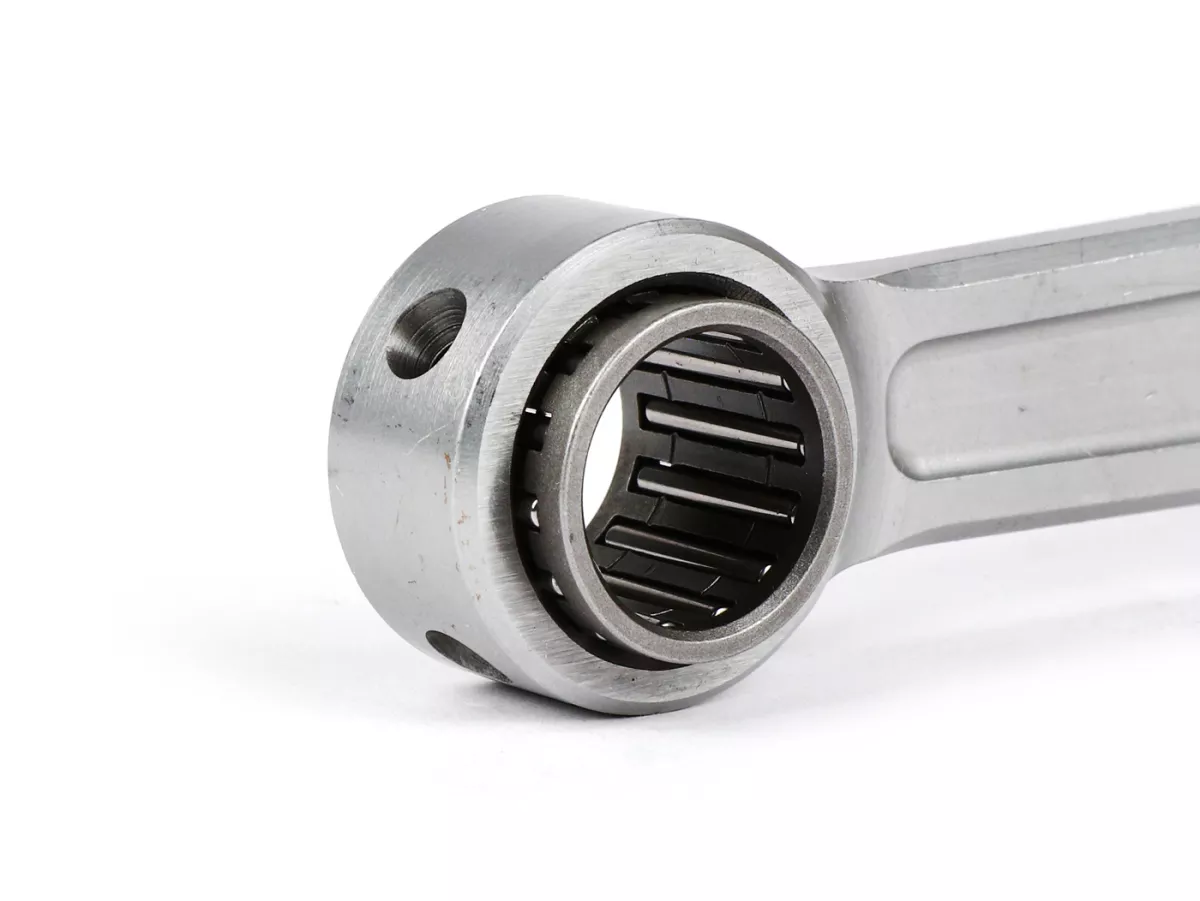

• Bore of connecting rod eye: Ø22mm

  • Piston pin: Ø16mm

  • (can also be used for Ø15mm piston pin with special bearing 7672564)

• Bottom connecting rod width: 14mm

  • Outer diameter of connecting rod bottom: Ø34mm

• Connecting rod top width: 14mm

  • Outer diameter top connecting rod: Ø29mm

• Material thickness of connecting rod end: 6mm

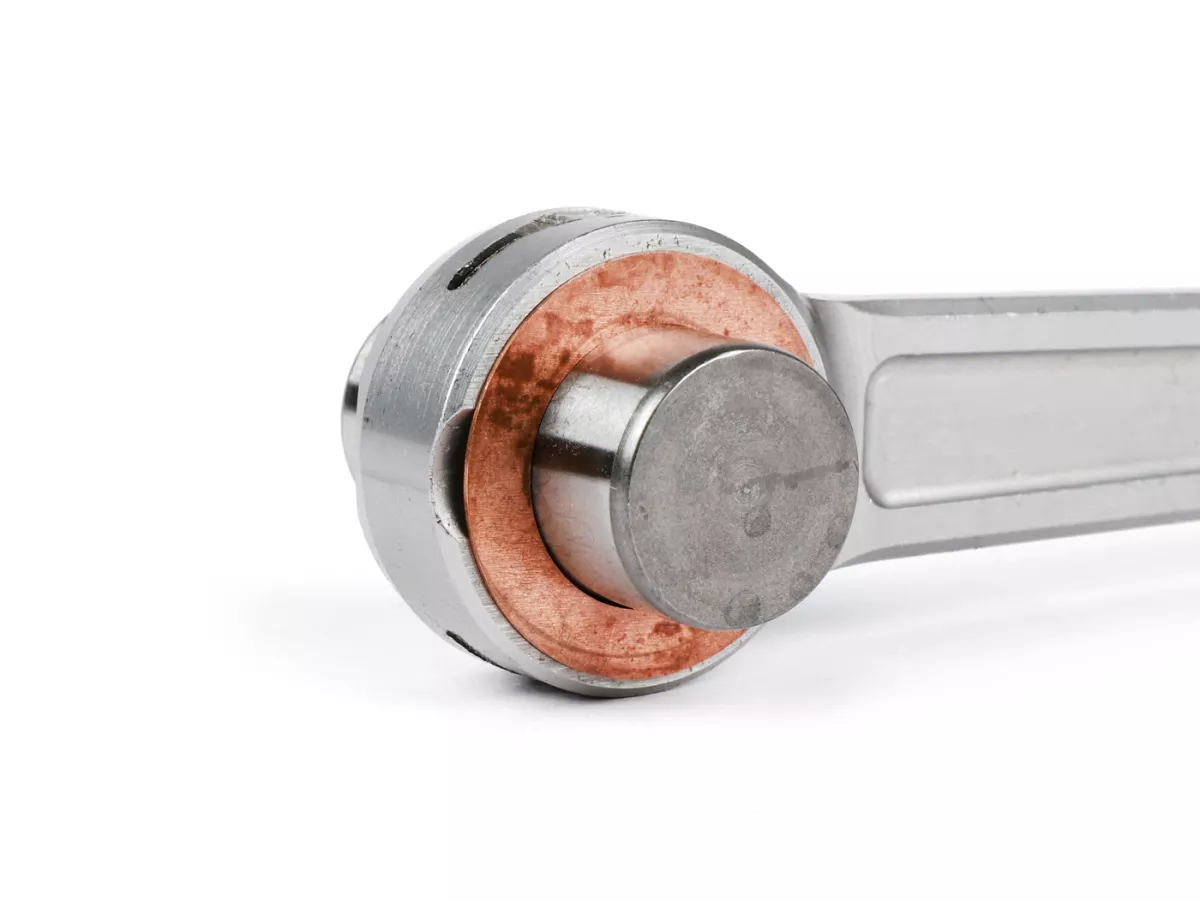

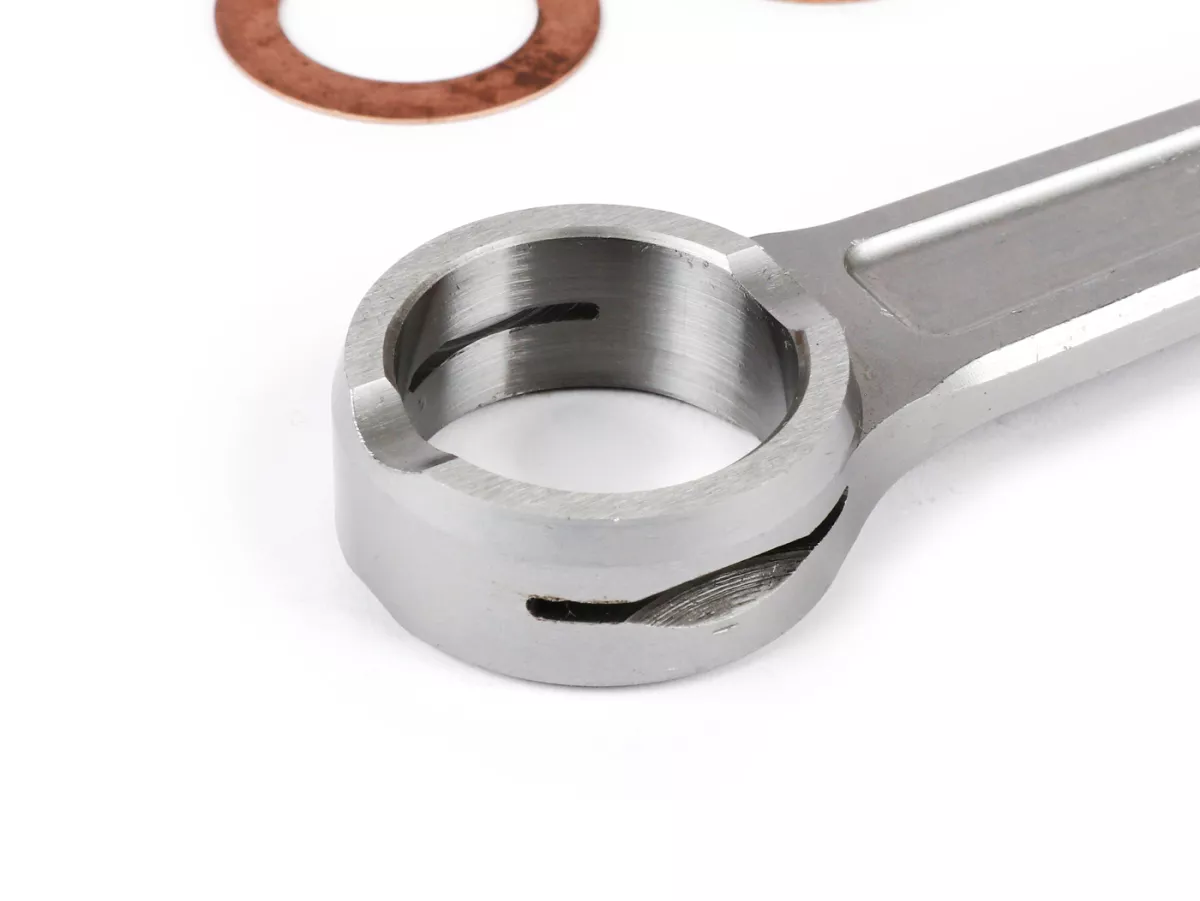

• Crank pin bore slotted

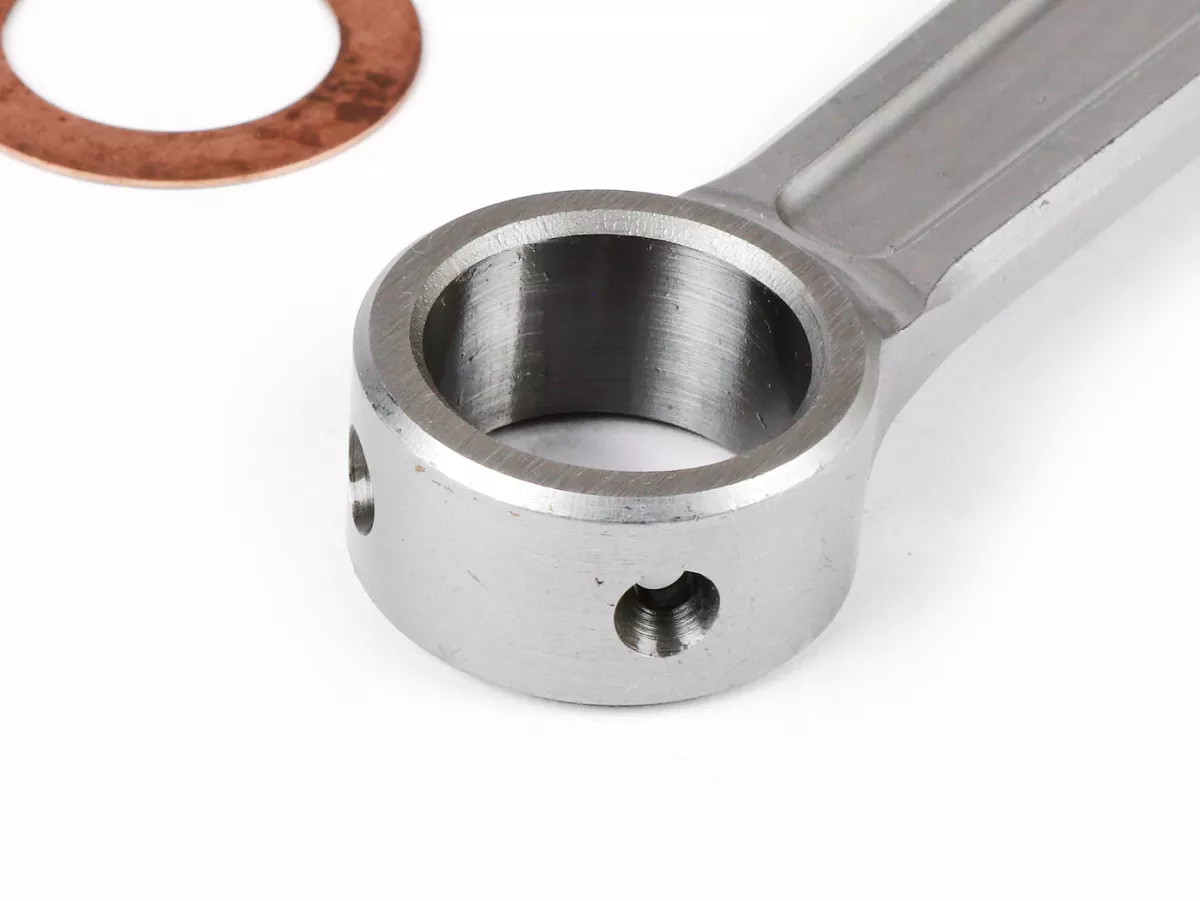

• Connecting rod eye top with 2 lubrication holes

By using a bearing for conversion, pistons with a Ø15mm piston pin can also be used. With the exception of the connecting rod length and the lower crank pin, the connecting rod corresponds to the standard dimensions of a PX200 connecting rod.
