Malossi PX200 Crankshaft – 60 mm Stroke for High-Performance MHR Engines

For the very first time Malossi dares to offer crankshafts for large frame engines.
The dimensions of all PX200 crankshafts are the same as those of the 125cc models. From a technical point of view, this means that the crankshaft drive is already fully utilised with the original 12 hp cylinder.
The narrow crankcase of the PX models does not allow the use of wide crank webs (urgently required for high performance). To develop a crankshaft that can withstand over three times the power (Malossi MHR cylinder) is therefore a more than technical challenge.

For a crankshaft that is as stable as possible, the crankpin and its material coverage should always be as large as possible. For this reason it is noticeable that Malossi has reduced the pin diameter from Ø22mm to Ø20mm and the crankshaft diameter from the original 97,8mm to 95mm.
Presumably to have enough cross section for the diaphragm control, which is absolutely necessary with a full cheek, even at high rpm for a corresponding amount of fresh gas available.

  • Fitting for: PX200, Cosa200
  • Material crank webs: 18NiCrMo5
  • Stroke: 60mm
  • Connecting rod length: 110mm
  • Lift pin: Ø20mm
  • Crank web diameter: Ø95mm (both sides)
  • Connecting rod foot width at the bottom: 14.8mm
  • conrod thickness: 5.6mm
  • crank web width at the crank pin: 11mm

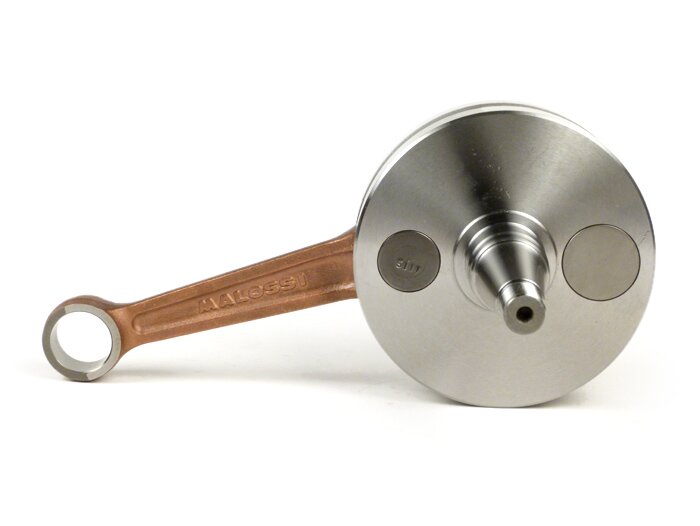

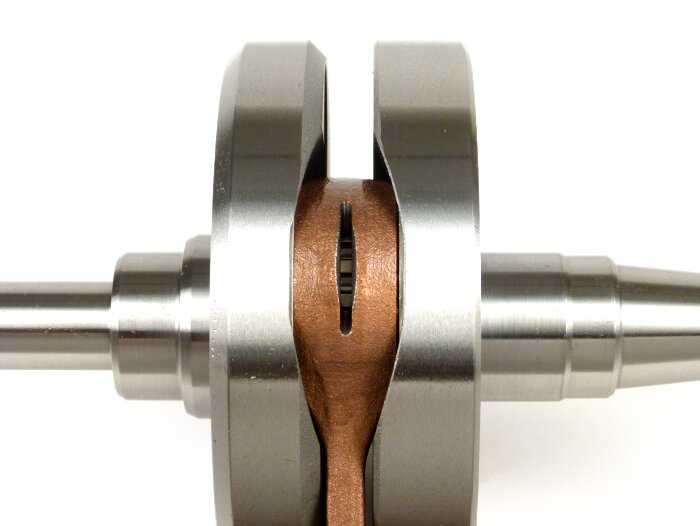

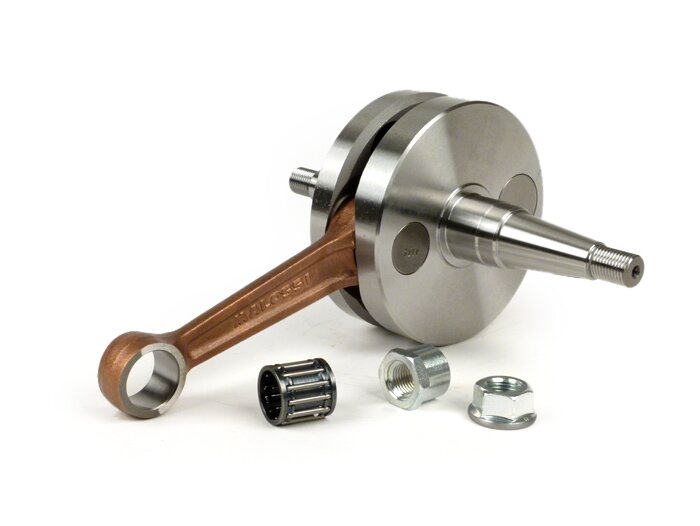

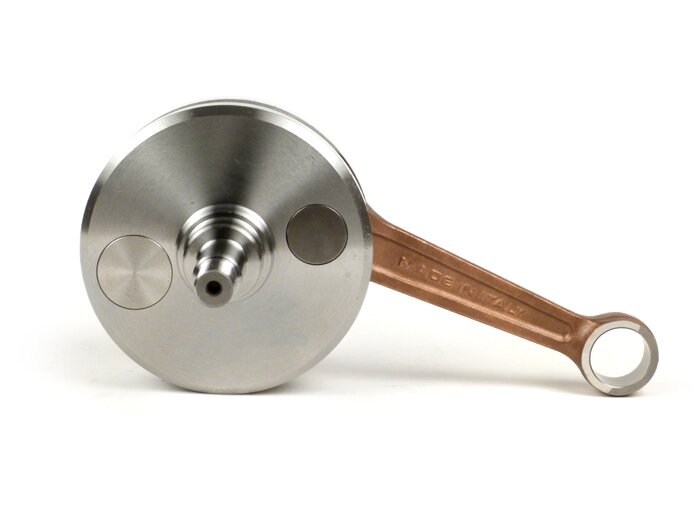

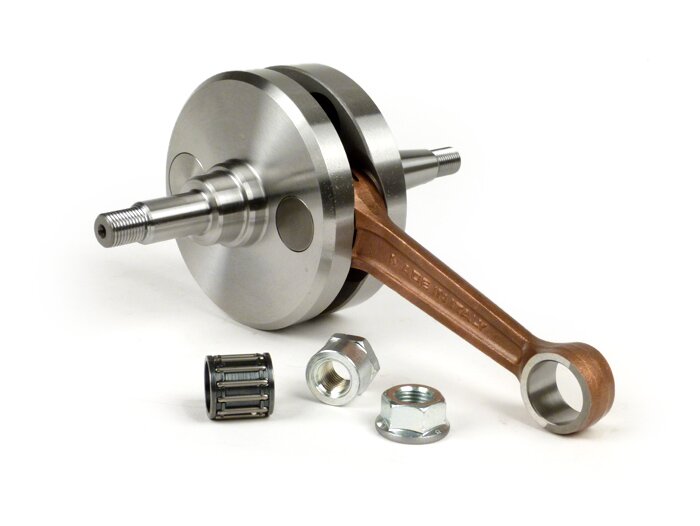

The crankshaft has an M12x1.25 thread on both sides. Corresponding nuts are enclosed.
AI-translation

Rate this article now and let us know what you think.
Ball bearing
Dimensions
16x20x20mm

Piston pin
Diameter
16 mm

Crankshafts
Stroke
60 mm
Thread on alternator side
M12x1,25 Rechtsgewinde
Thread on drive side
M12x1,5 Rechtsgewinde
Crank web diameter
98 mm
Crankcase must be spindled
nein
Motor housing must be modified
ja
Rotary vane crankshaft
nein
Full cheek crankshaft
ja
Filling material for full cheek
Stahl
Bearing seat diameter on alternator side
25 mm
Bearing seat diameter on drive side
25 mm
Diameter of sealing ring seat on alternator side
24 mm
Diameter of sealing ring seat on drive side
31 mm

Connecting rod
Connecting rod length
110 mm
Connecting rod eye top diameter
20 mm

OEM numbers (for comparison purposes only)
Scooter Center:
M5316176
Malossi:
5316176, M5316176
