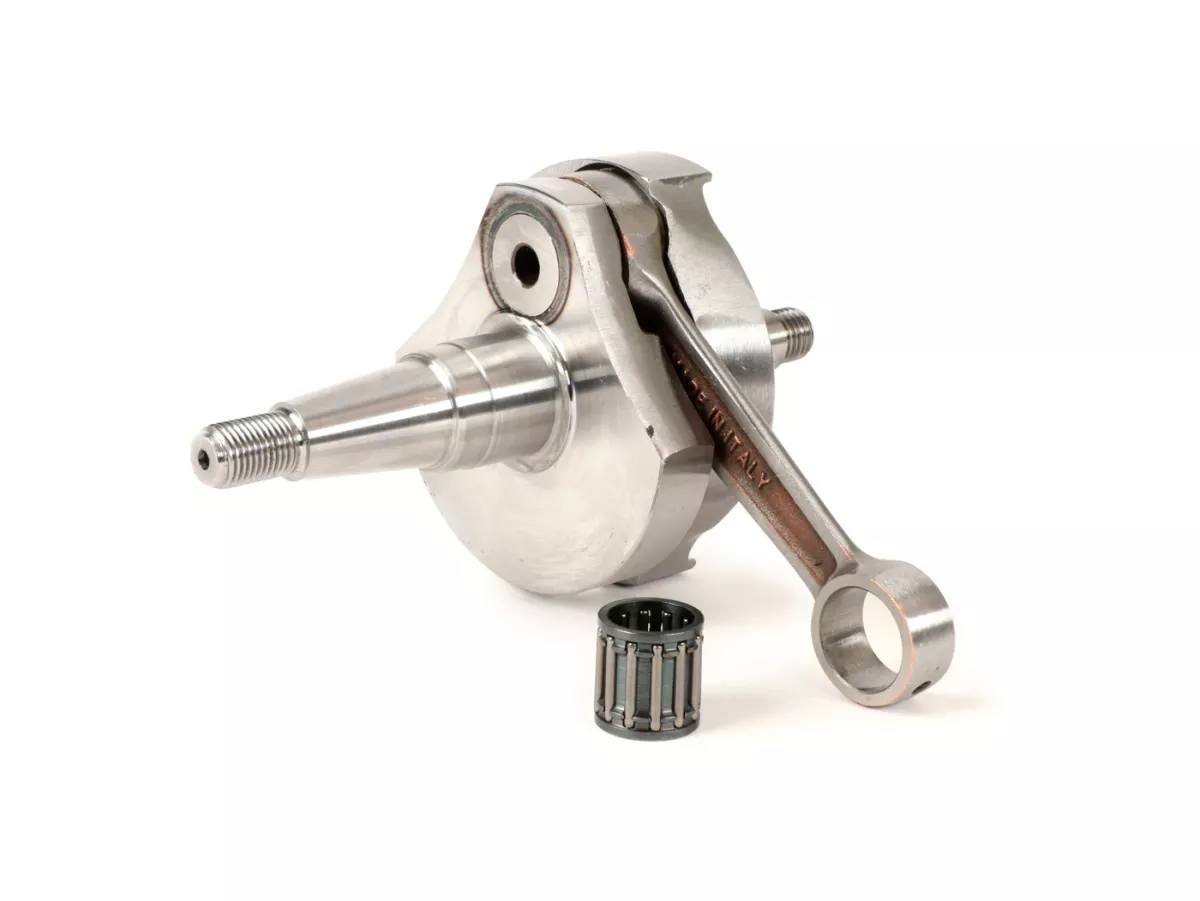

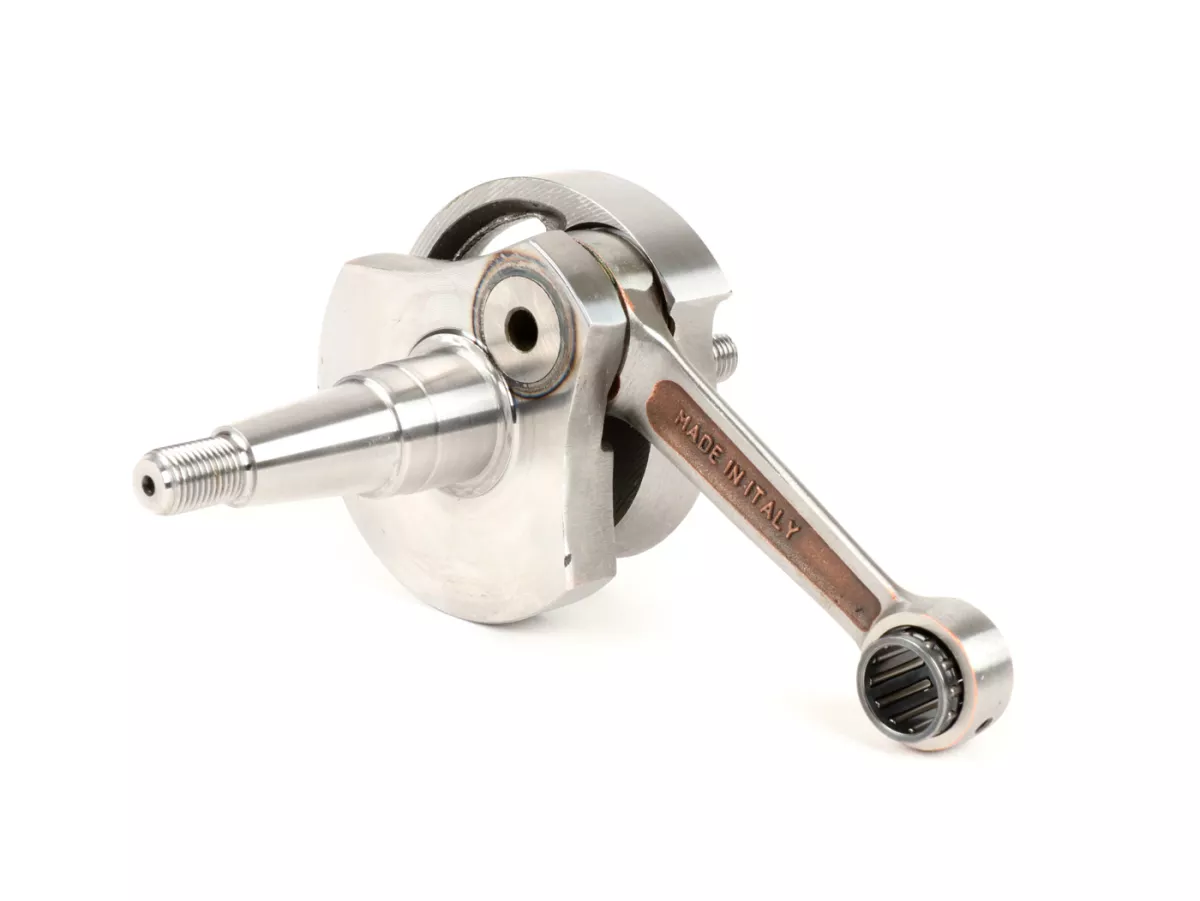

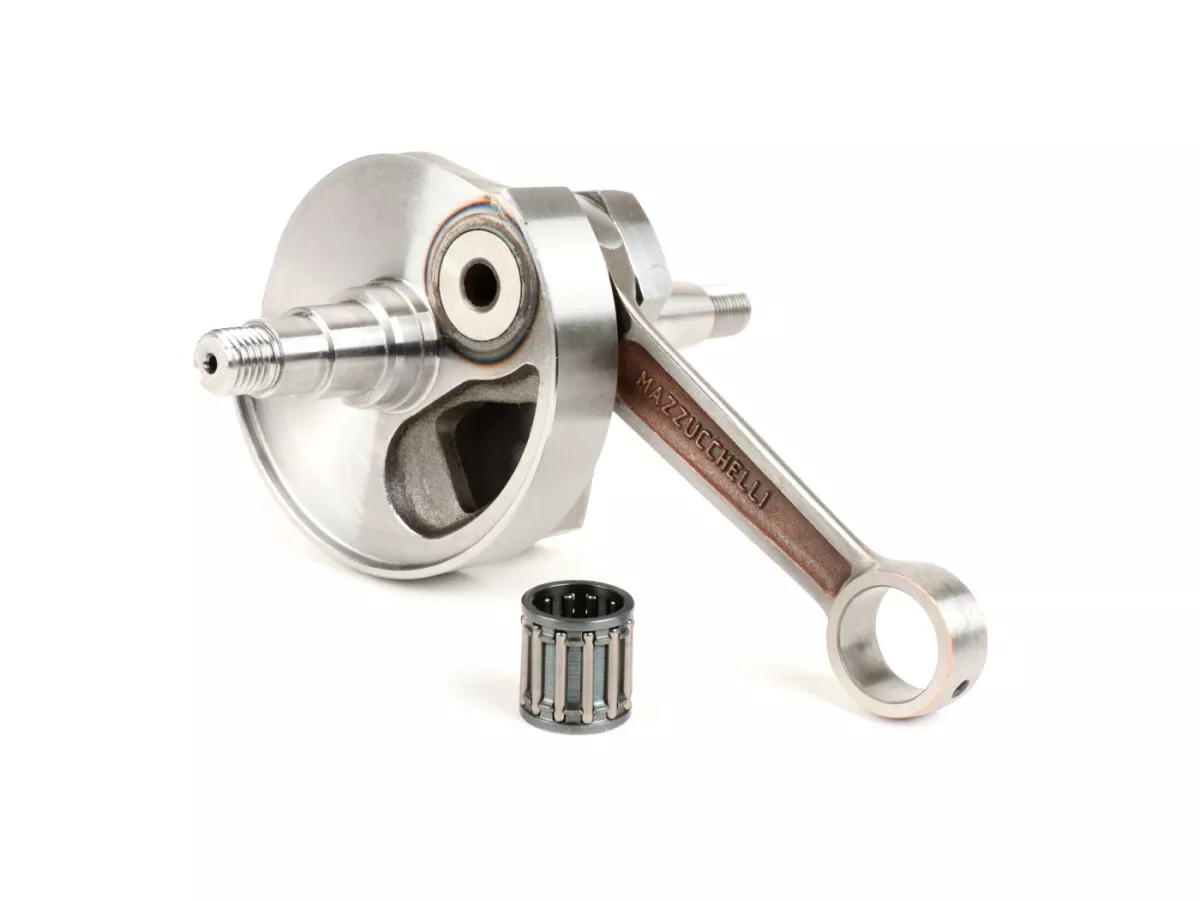

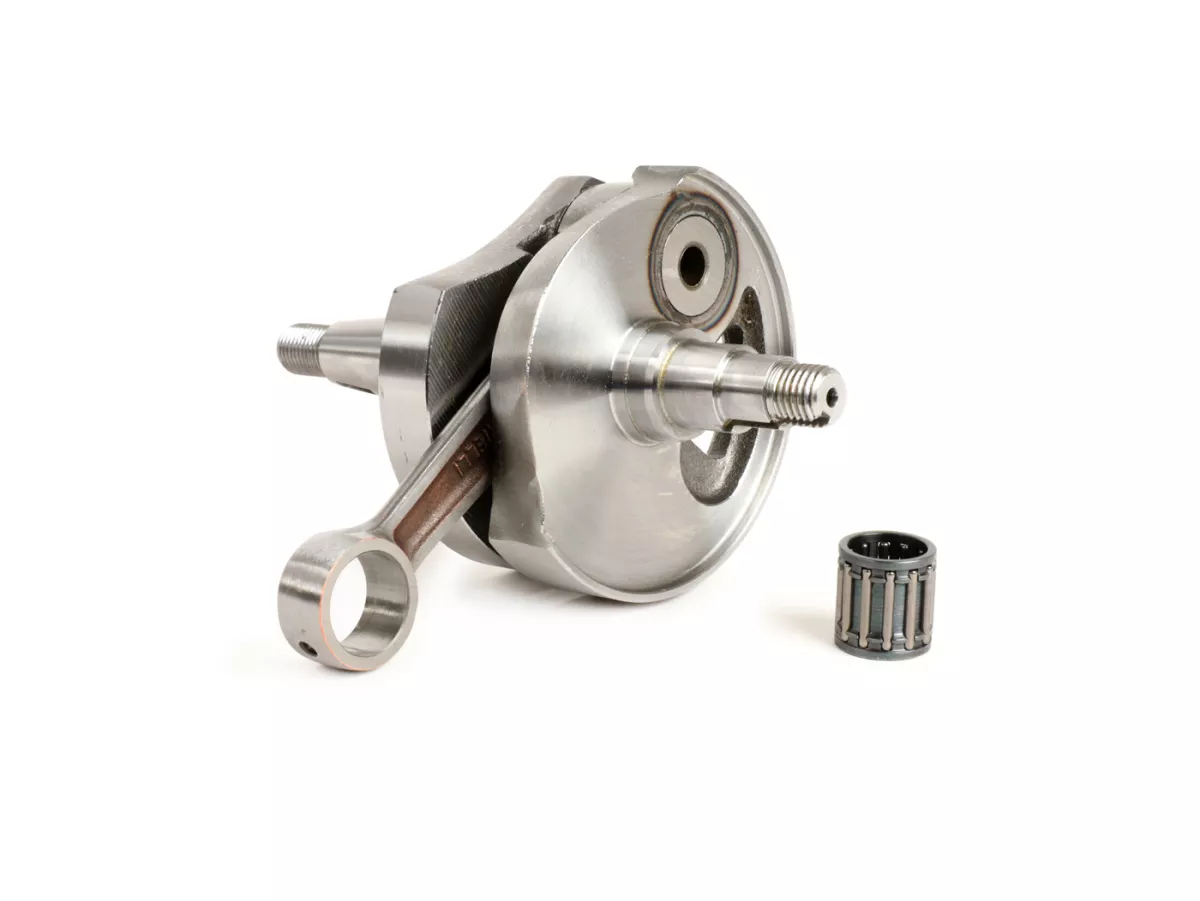

Mazzucchelli Super Competizione crankshaft for PK125

The Mazzucchelli Super Competizione crankshaft has a very long intake timing angle.
This means that it generates a very large timing cross-section even on an unmachined engine case intake. By reworking the intake window in the engine housing, an intake angle of over 200° can easily be achieved. The shaft has the standard stroke and the standard connecting rod length.

It is therefore very suitable for building a powerful, rotary valve-controlled engine with little effort. The Super Competizione has also been successfully used by us several times in racing.

This is how we ensure, that reviews come from real consumers.
Anonym  06/09/2019

Very best crankshaft

Ball bearing
Dimensions
15x19x20mm

Piston pin
Diameter
15 mm

Crankshafts
Stroke
51 mm
Thread on alternator side
M12x1,25 Rechtsgewinde
Thread on drive side
M10x1,5 Rechtsgewinde

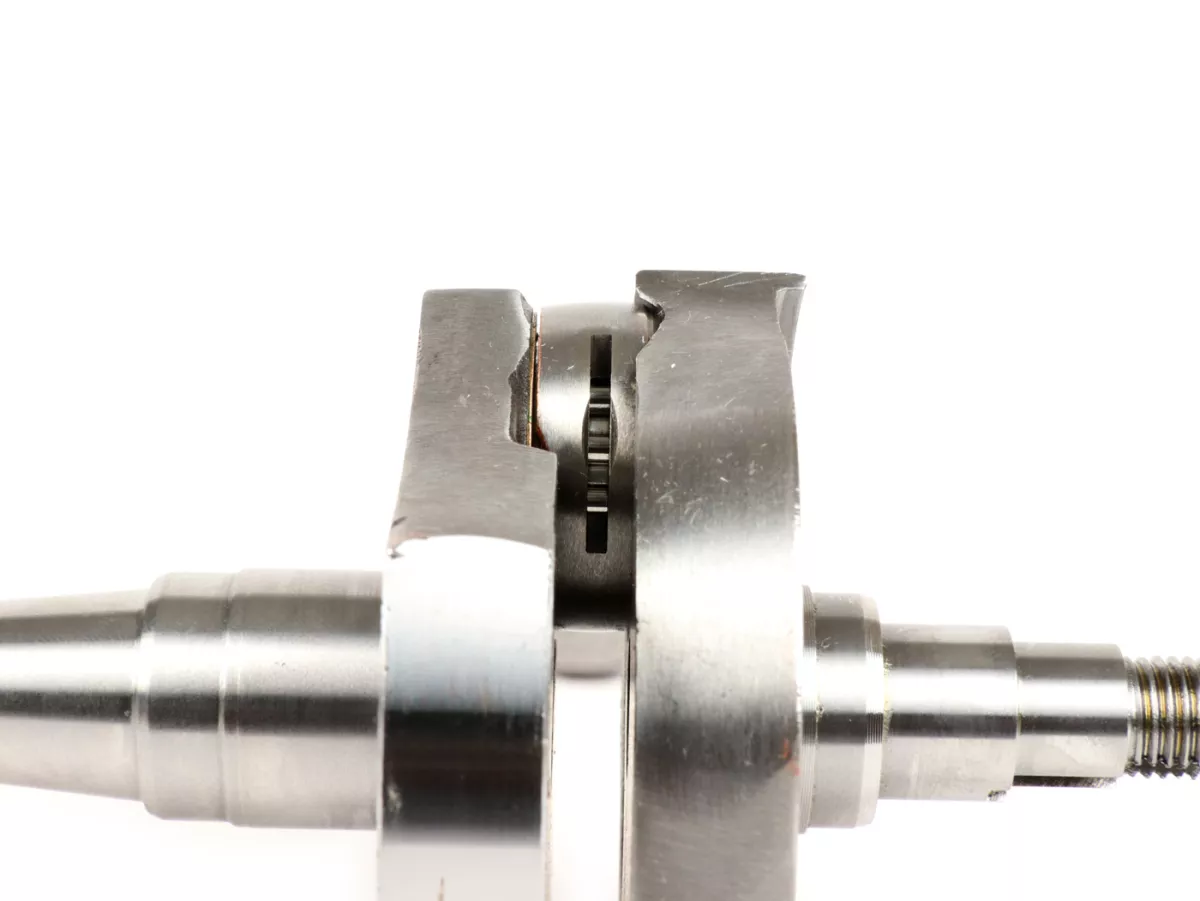

Crank web diameter
87 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
ja
Full cheek crankshaft
nein
Bearing seat diameter on alternator side
25 mm
Bearing seat diameter on drive side
17 mm
Diameter of sealing ring seat on alternator side
24 mm
Diameter of sealing ring seat on drive side
22.7 mm

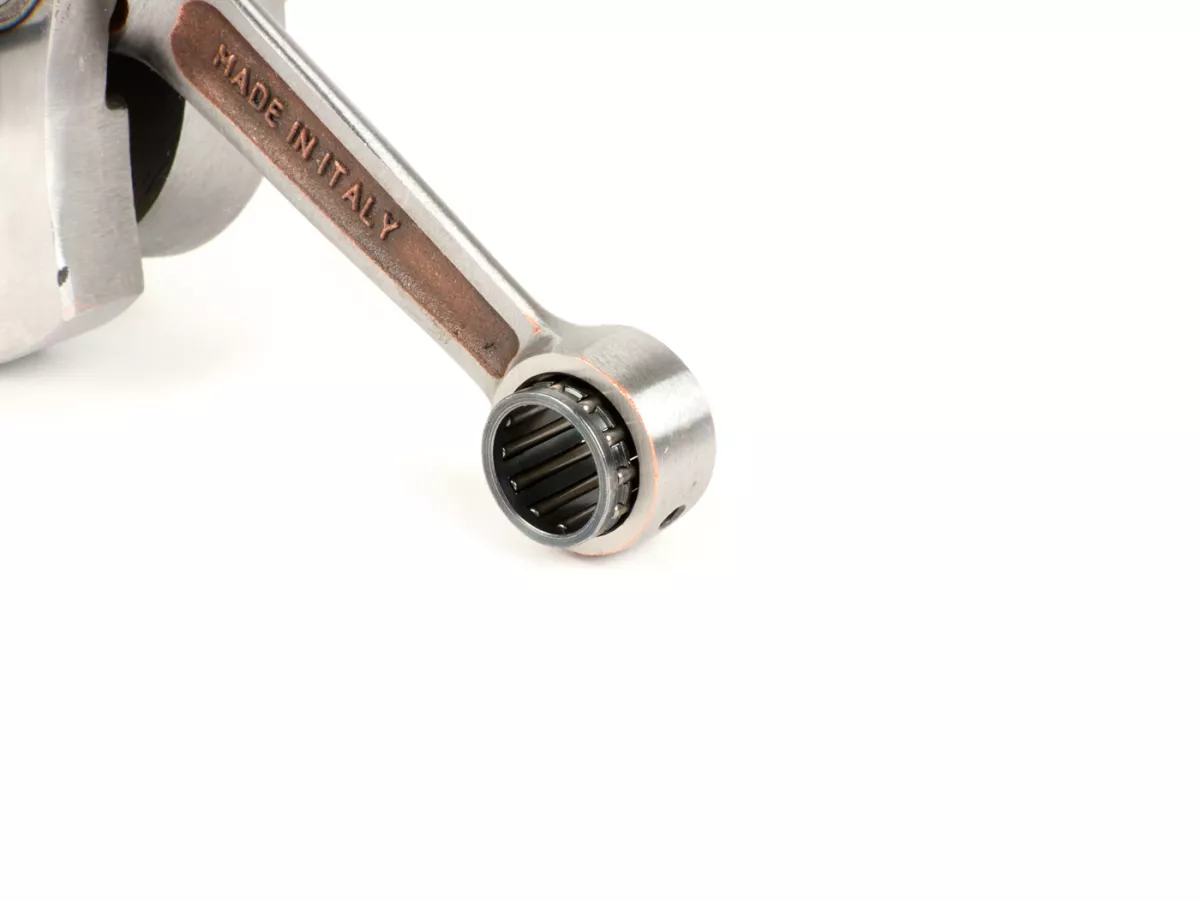

Connecting rod
Connecting rod length
97 mm
Connecting rod eye top diameter
19 mm
