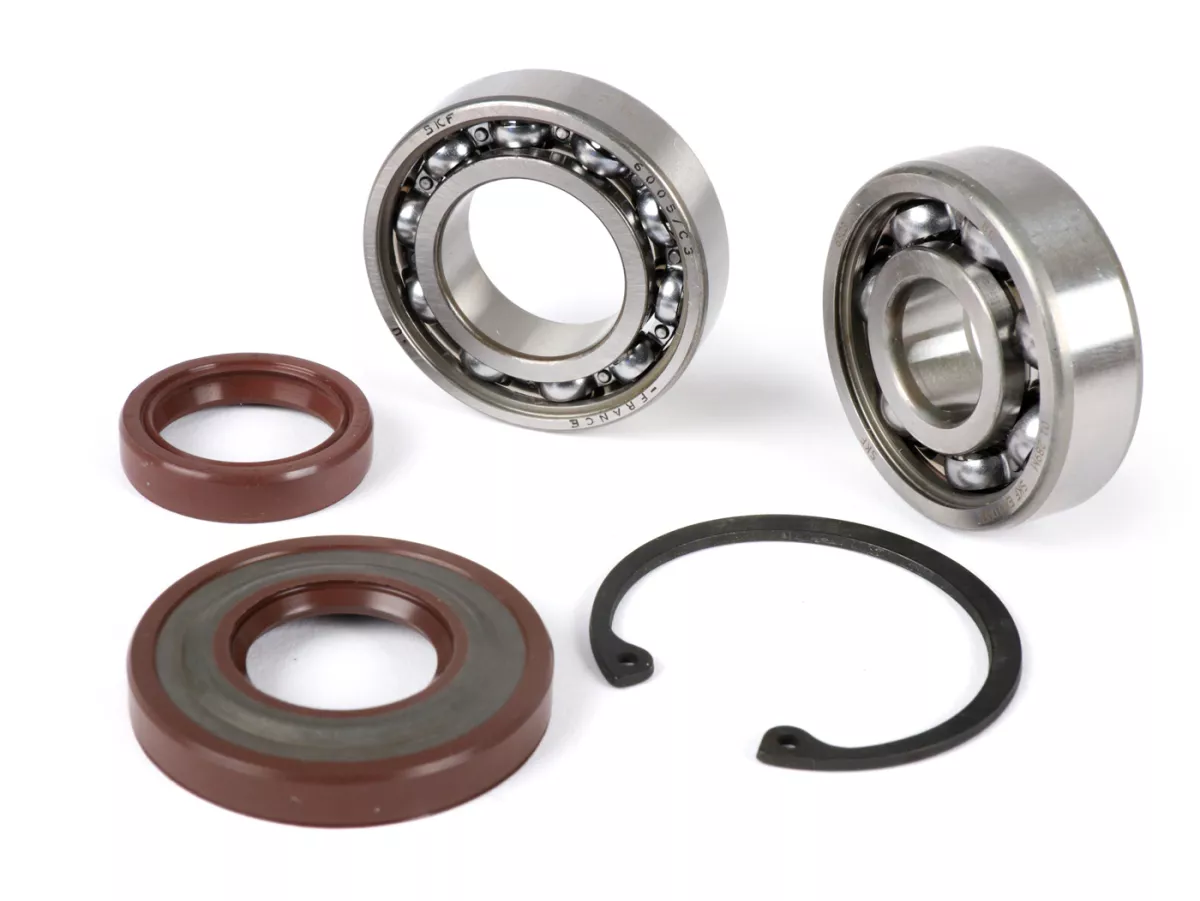

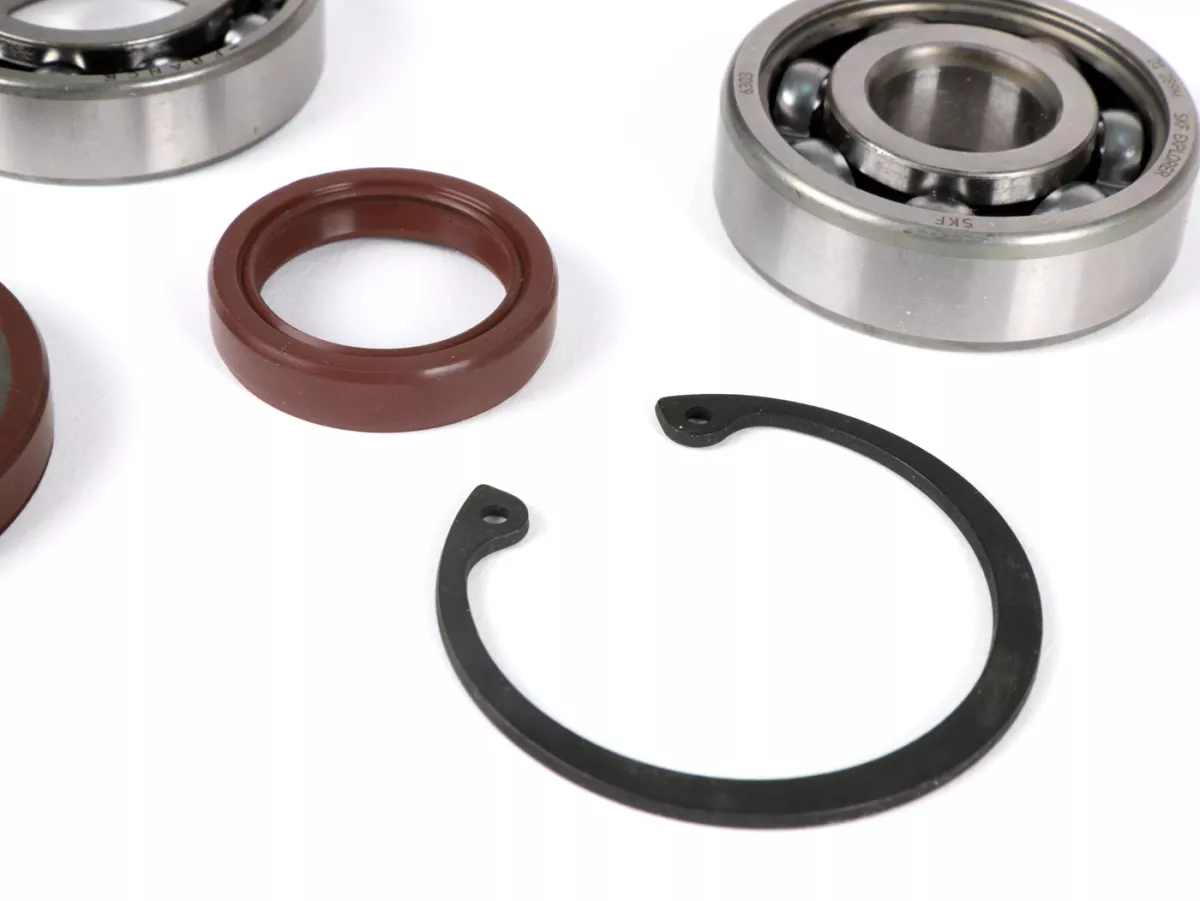

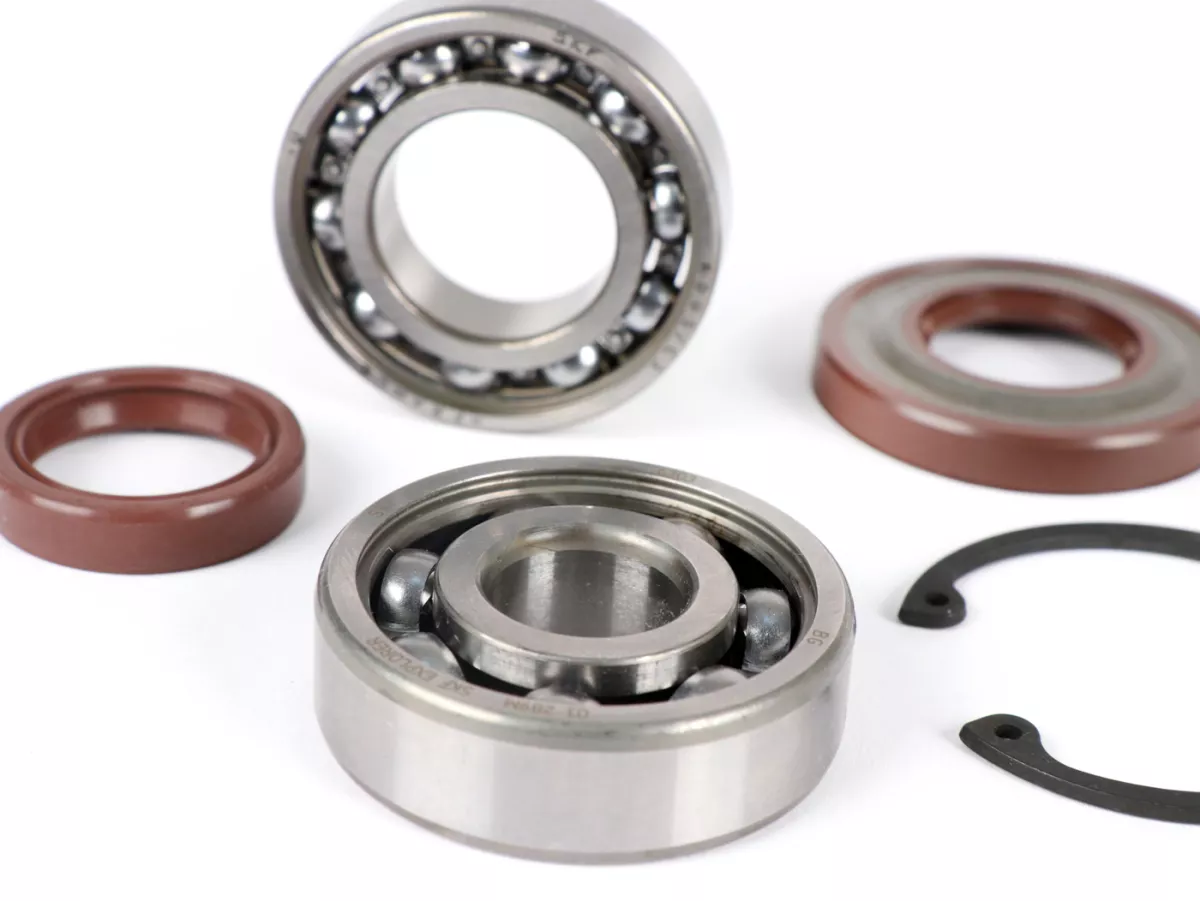

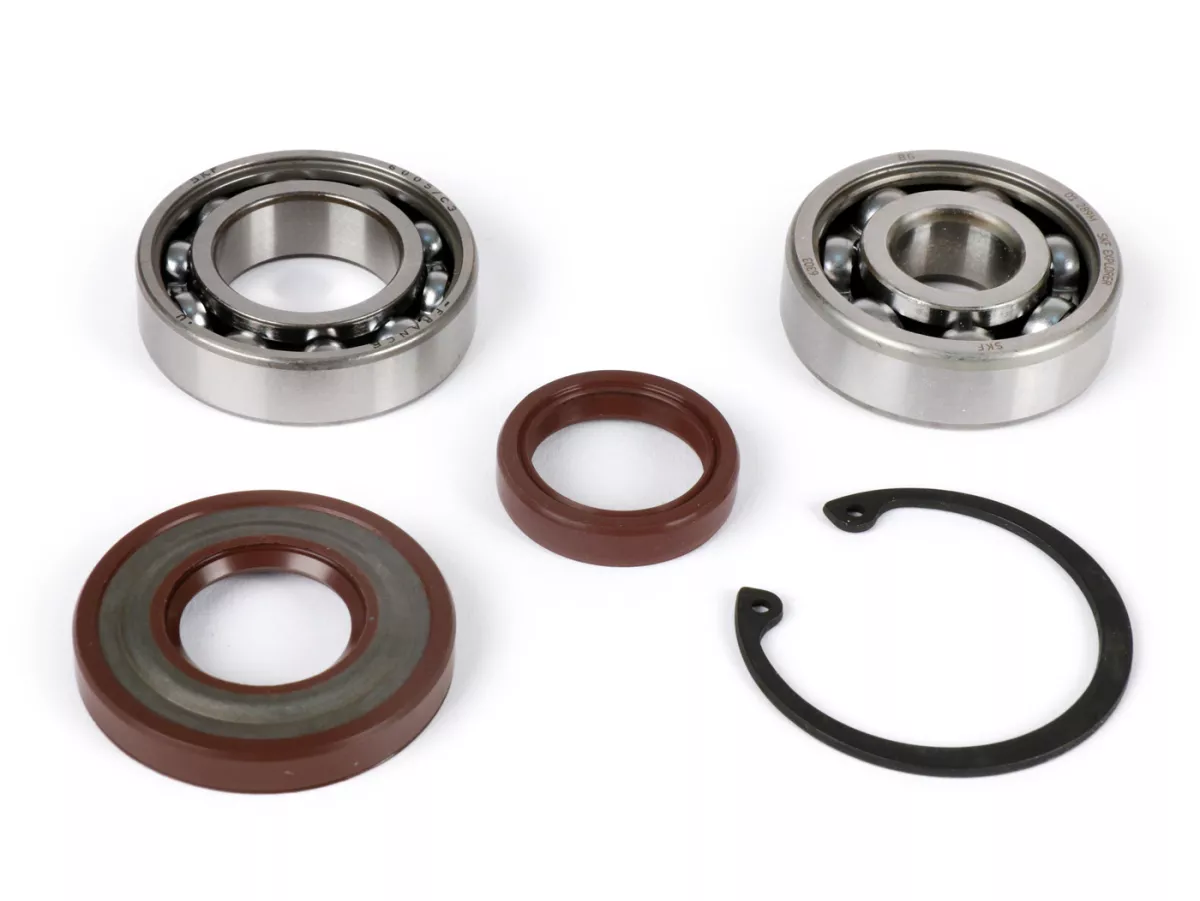

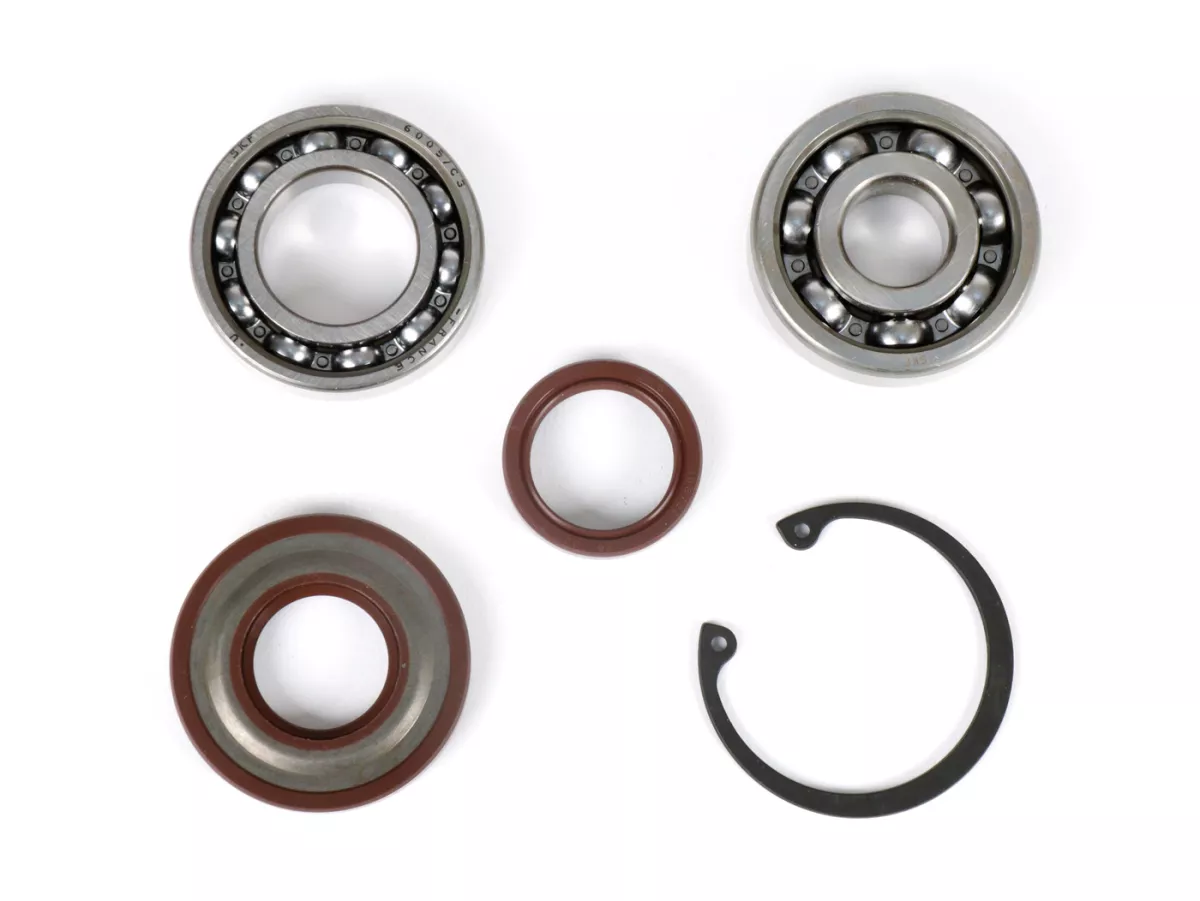

The following components are included in this set:
Ball bearing -6005 C3- (25x47x12mm) - (used for crankshaft Fabbri and conversion to ETS) Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)
Ball bearing -6005 C3- (25x47x12mm) - (used for crankshaft Fabbri and conversion to ETS) Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)
Ball bearing -6303- (17x47x14mm) - (used for crankshaft, drive side Vespa V50, V90, PV125, ET3, PK S, PK XL, Lambretta Lui 50, J 50-100)
Ball bearing -6303- (17x47x14mm) - (used for crankshaft, drive side Vespa V50, V90, PV125, ET3, PK S, PK XL, Lambretta Lui 50, J 50-100)
Oil seal 24x32x7mm -FKM- (used for crankshaft flywheel side Umrüstung auf ETS Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)
Oil seal 24x32x7mm -FKM- (used for crankshaft flywheel side Umrüstung auf ETS Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)
Oil seal 22,7x47x7/7,5mm -CORTECO FKM- (used for crankshaft drive side Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL - gear box input shaft Piaggio 125-180 cc 2-stroke, Piaggio 125 cc 4-stroke (1st generation))
Oil seal 22,7x47x7/7,5mm -CORTECO FKM- (used for crankshaft drive side Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL - gear box input shaft Piaggio 125-180 cc 2-stroke, Piaggio 125 cc 4-stroke (1st generation))
Circlip -HOLE DIN472- Ø=47mm
Circlip -HOLE DIN472- Ø=47mm
69,90 € *

The crankshaft of the Vespa PK125 ETS models has the most stable crankshaft stub of all Smallframe engines. It has a massive diameter of Ø25mm at the bearing seat on the alternator side and is therefore able to withstand all loads. The ETS crankshaft type is therefore very popular for tuned engines.

Due to the large diameter the crankshaft cannot be driven with the standard bearings/shaft seals. Therefore we offer this practical conversion kit with which any V50, 50N, V90, SS90, PV125, ET3 as well as PK S and PK XL engine type can be converted.

ASSEMBLY:
The enclosed circlip is inserted into the bearing bore of the alternator half. It is positioned so that the opening created between the ring ends opens the oil hole for the bearing. Then install the bearing 6005 as usual (cool down the bearing, heat the motor housing). The bearing on the drive side is installed as in a standard motor revision. Finally, the shaft sealing rings are inserted and the sealing lips are wetted with some oil (do not use grease).


AI-translation

Rate this article now and let us know what you think.
General
Quantity included in delivery
2

Shaft seal sets
Number of shaft seals included in the scope of delivery
2
Shaft seal size 1
20x30x7mm
Size of shaft seal 2
20x30x7mm
Shaft seal material 1
NBR
Shaft seal material 2
NBR
Coating of shaft seal ring 1
keine
Coating of shaft seal ring 2
keine

Ball bearing sets
Size bearing 1
20x47x14mm
Size bearing 2
20x47x14mm
Designation Bearing 1
6204 C4
Designation bearing 2
6204 C4
