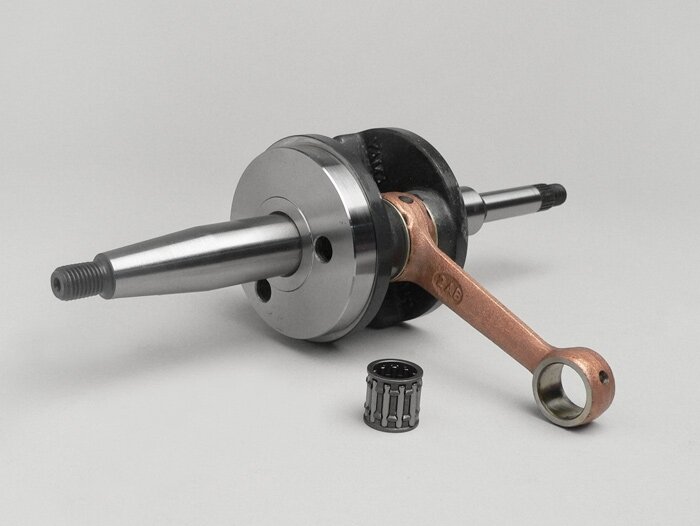

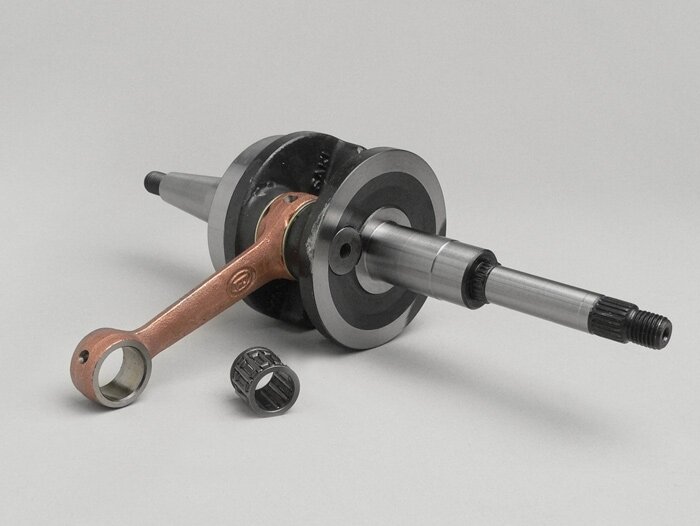

With the CM Standard Crankshaft we can offer you an inexpensive crankshaft that is a direct replacement for your original shaft. With brand-new gears and grooves, the screwing is fun again.

Similar to the original shafts you will find sufficiently dimensioned lubrication holes and slots.

Designed for alternators Rotor mounting with crescent key.


AI-translation

Rate this article now and let us know what you think.
Ball bearing
Dimensions
12x16x16mm

Piston pin
Diameter
12 mm

Crankshafts
Stroke
40 mm
Thread on alternator side
M10x1,25 Rechtsgewinde
Thread on drive side
M10x1,25 Rechtsgewinde
Crank web diameter
69.5 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
nein
Full cheek crankshaft
nein
Diameter of variator stub
12 mm
Variomatic stub design
glatt
can be used with original variator
ja
Wide crank webs
52.4 mm
Bearing seat diameter on alternator side
20 mm
Bearing seat diameter on drive side
20 mm
Diameter of sealing ring seat on alternator side
20 mm
Diameter of sealing ring seat on drive side
20 mm

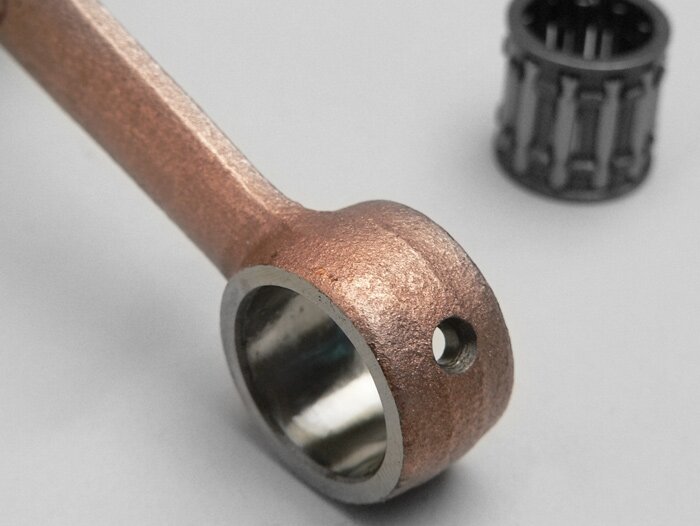

Connecting rod
Connecting rod length
80 mm
Connecting rod strength
5.2 mm
Connecting rod eye top diameter
16 mm
Lifting pin diameter
16 mm
Upper connecting rod eye lubrication hole
ja

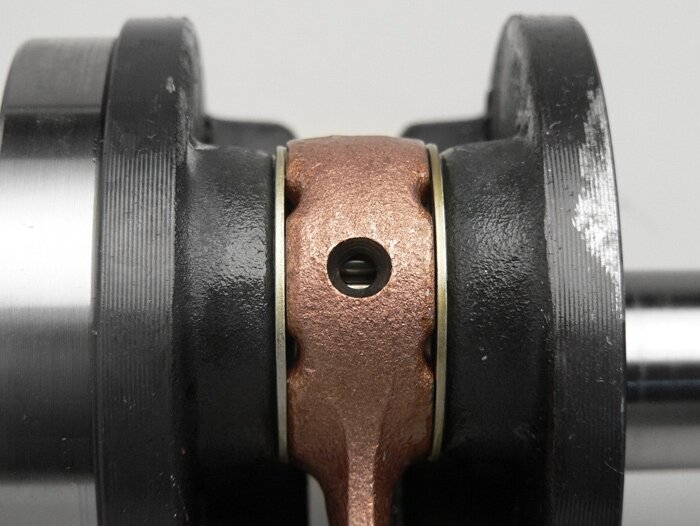

Lower connecting rod eye lubrication hole
Schlitz
Connecting rod thrust washers
ja

OEM numbers (for comparison purposes only)
Scooter Center:
R100010111
Peugeot:
771866
