Top Racing Item number: BGM030114

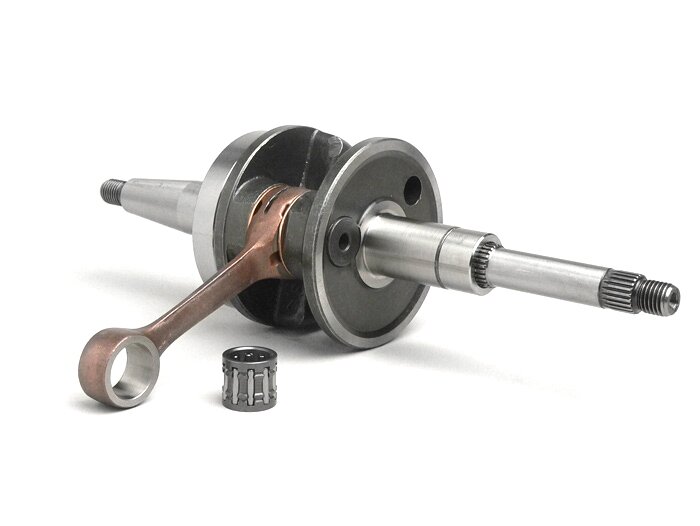

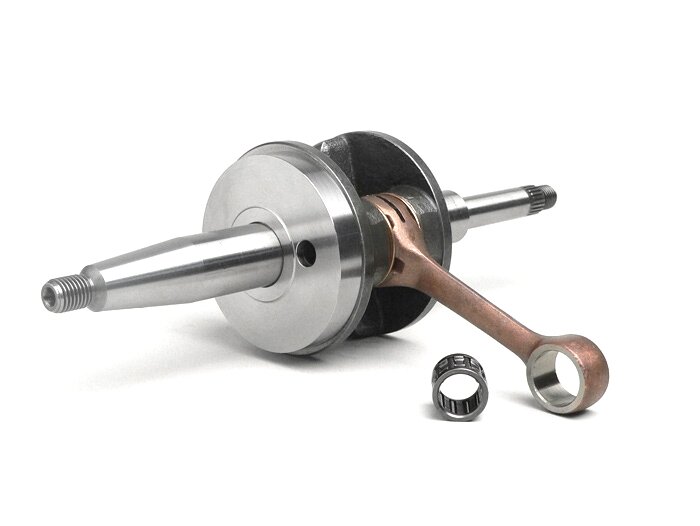

Crankshaft -TOP RACING Original- Peugeot horizontal (woodruff key for rotor) -TOP RACING Original-TECH, JETFORCE50 TSDI, SPEEDFIGHT3 50 AC/LC (2-TOP RACING Original-stroke)

1 Rating

189,00 €*

available immediately

Shipping weight 1,53 kg

Information on product safety

The TOP RACING ORIGINAL crankshaft offers you the highest quality at an extremely fair price. The manufacturing precision as well as the materials used are of the highest quality.

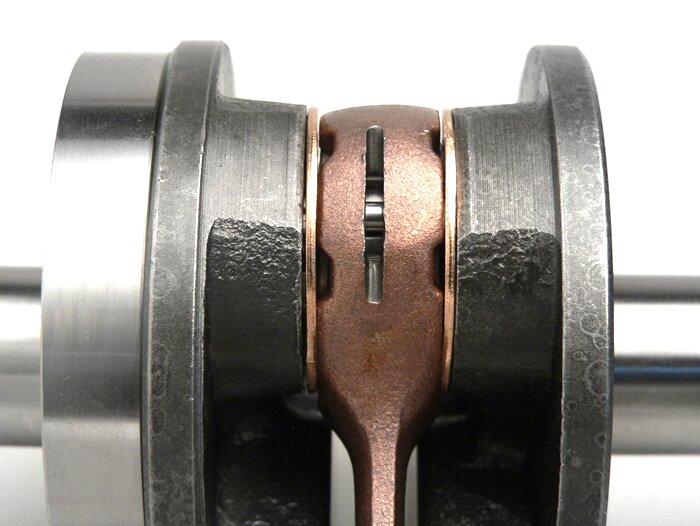

So both the crank webs and the connecting rod are forged, a complex manufacturing process that makes these shafts extremely reliable and resistant.

The bearings are also at a very high level, only Japanese or European quality bearings are used, which are good for many thousands of kilometers.

Designed for alternators Rotor mounting with crescent wedge.

_{AI-translation}

This is how we ensure, that reviews come from real consumers.

Anonym 02/04/2015

sehr gut

Rate this product now

Ball bearing

Dimensions

12x16x16mm

Piston pin

Diameter

12 mm

Crankshafts

Stroke

40 mm

Thread on alternator side

M10x1,25 Rechtsgewinde

Thread on drive side

M10x1,25 Rechtsgewinde

Crank web diameter

69.5 mm

Crankcase must be spindled

nein

Motor housing must be modified

nein

Rotary vane crankshaft

nein

Full cheek crankshaft

nein

Diameter of variator stub

12 mm

Variomatic stub design

glatt

can be used with original variator

ja

Wide crank webs

52.7 mm

Bearing seat diameter on alternator side

20 mm

Bearing seat diameter on drive side

20 mm

Diameter of sealing ring seat on alternator side

20 mm

Diameter of sealing ring seat on drive side

20 mm

Connecting rod

Connecting rod length

80 mm

Connecting rod strength

4.5 mm

Connecting rod eye top diameter

16 mm

Lifting pin diameter

16 mm

Upper connecting rod eye lubrication hole

nein

Lower connecting rod eye lubrication hole

Schlitz

Connecting rod thrust washers

ja

OEM numbers (for comparison purposes only)

Scooter Center:

BGM030114
