DR Item number: 192KT00129
DR
175,00 €*
available immediately
Shipping weight 0,79 kg

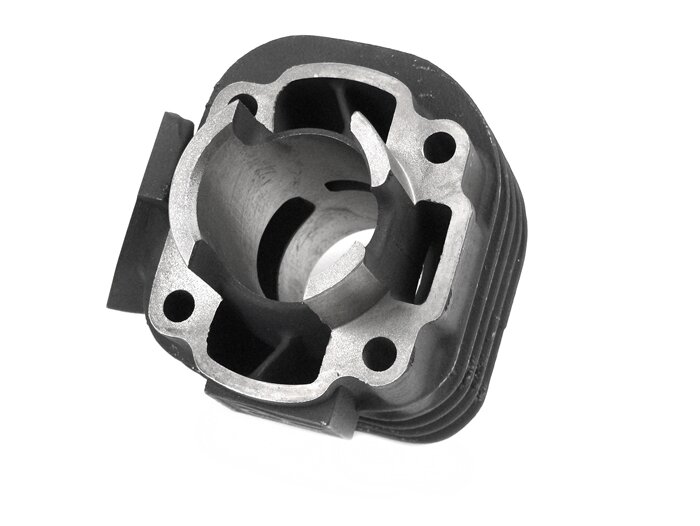

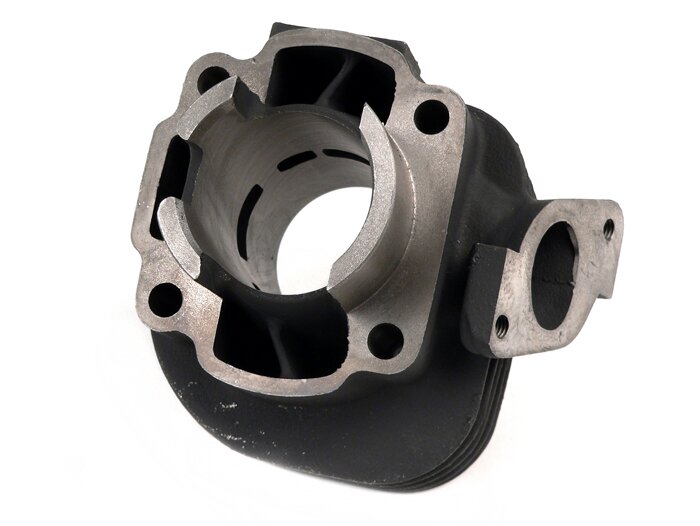

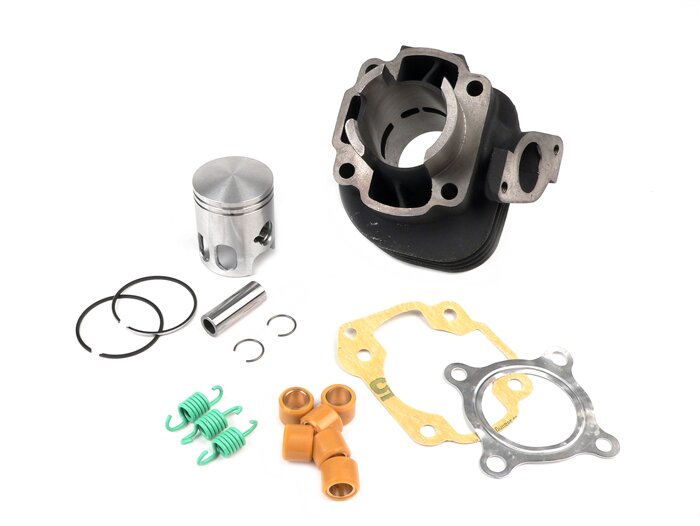

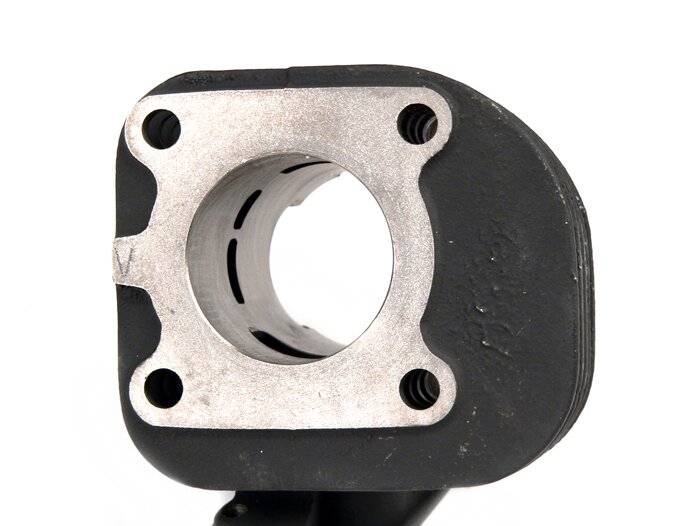

Grey cast iron cylinder for clearly optimised driving performance, with unlimited durability.
This is almost a blanket recommendation for all those who want to make their scooter faster without a lot of effort.
The DR differs in optimised control times and, above all, larger channel widths, especially the overflow valve. The DR philosophy is to give the cylinders a wide speed band with lots of torque from the lower speed range. The 70cc version is particularly impressive.
The price/performance ratio is very good and the richer torque is simply fun.
AI-translation/sub>

Rate this article now and let us know what you think.
General
Performance class
Sport

Piston pin
Diameter
12 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B8HSA
Spark plug thread
kurz

Cylinder
Drill hole
40 mm
Type of cooling
luftgekühlt
Displacement
49 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß
Cylinder gasket set included
ja
Cylinder head included
nein
Outlet shape
1-teilig (oval)
Exhaust assembly
Flansch
Flange type
2-Schrauben
Distance between exhaust studs
48 mm
Threaded exhaust studs
M6
Number of boost ports
1
Number of transfers (incl. boost ports)
5

Crankshafts
Stroke
39.2 mm

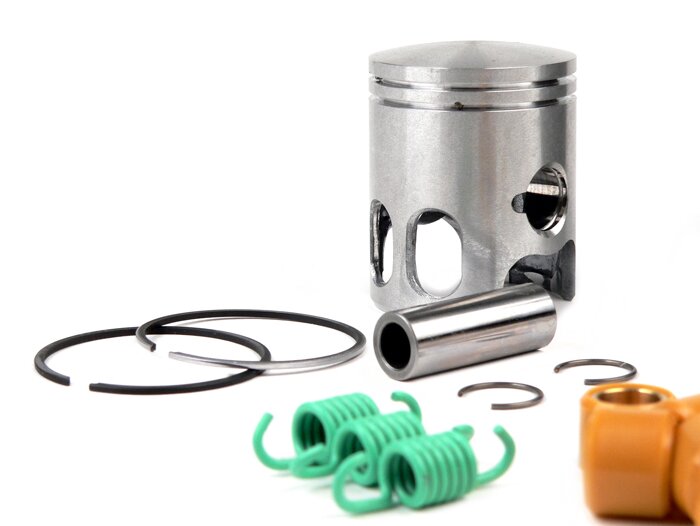

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,2mm

Piston clips
Piston clip type
G-Typ
Wire gauge Piston clip
1,0mm

Cylinder heads
Cylinder head type
einteilig
