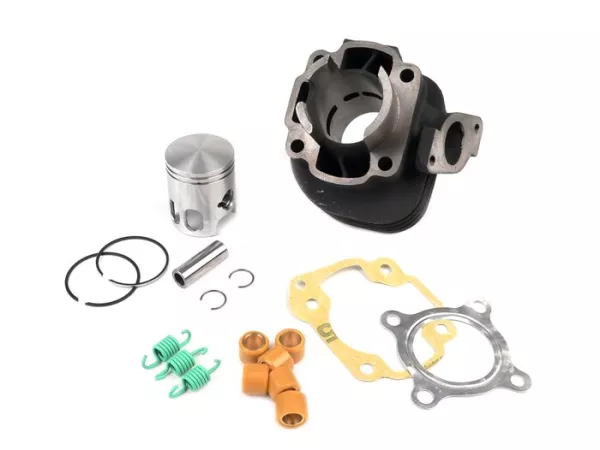

Qualitatively very convincing cast cylinder made of a Minachrome grey cast iron alloy. Both the 50 cc and the 70 cc version offer remarkable performance results compared to the standard cylinder and are fully designed for top speed and power. Even the Trophy 70 cc can still be driven with the original components. However, the size of the main jet should be increased by about 5-15%.

In terms of durability, the Trophy is on the same level as the standard cylinder and so thousands of kilometres of worry-free driving are guaranteed. The combination of better driving performance and full suitability for everyday use makes the Trophy a mile-eater!


AI-translation

Rate this article now and let us know what you think.
General
Performance class
Sport

Piston pin
Diameter
12 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B8HS
Spark plug thread
kurz

Cylinder
Drill hole
40 mm
Type of cooling
luftgekühlt
Displacement
49 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß
Cylinder gasket set included
ja
Cylinder head included
nein
Outlet shape
1-teilig (oval)
Exhaust assembly
Flansch
Flange type
2-Schrauben
Distance between exhaust studs
48 mm
Threaded exhaust studs
M6

Crankshafts
Stroke
39.2 mm

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,2mm

Piston clips
Piston clip type
C-Typ
Wire gauge Piston clip
1,0mm

Cylinder heads
Cylinder head type
einteilig

OEM numbers (for comparison purposes only)
Scooter Center:
TP9925650
