Naraku Item number: 7671864
Naraku
99,00 €*
Ready for dispatch in 72h
Shipping weight 1,14 kg

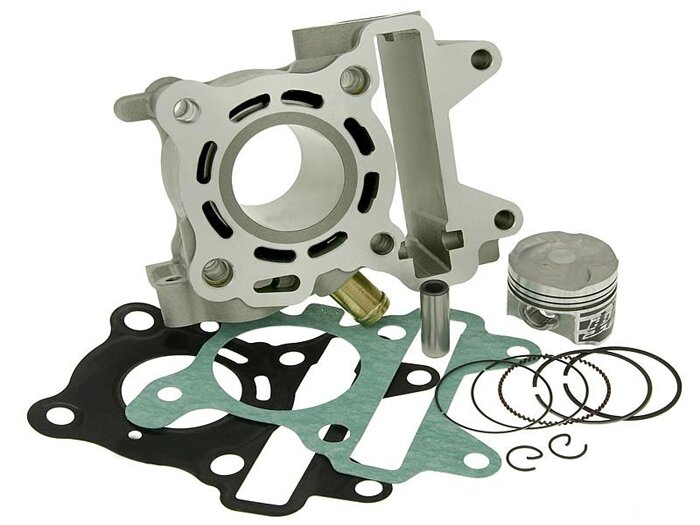

NARAKU is expanding its range of high-quality replacement cylinder kits: For 50cc Minarelli 4-stroke engines, this cylinder kit is now available with all small parts and gaskets required for assembly. The piston is equipped with a friction-minimizing coating to ensure a gentle running-in phase of the spare parts during the first kilometers.

The bore measures the same diameter as the original cylinder. The displacement is therefore 50ccm and the power delivery is identical to the original engine. Suitable for MBK Booster X 50 4-stroke, Ovetto 50 4-stroke, Yamaha Giggle 50 4-stroke, Vino 50 4-stroke, Neos 50 4-stroke, Aerox 50 4-stroke (2013-).
AI-translation

Rate this article now and let us know what you think.
General
Performance class
Sport

Piston pin
Diameter
10 mm

Spark plugs
Thread type
M10x1,00
Thermal value NGK
CR7E
Spark plug thread
lang

Cylinder
Drill hole
38 mm
Type of cooling
flüssigkeitsgekühlt
Displacement
49 cm³
Motor type
4-Takt
Material
Aluminium
Piston raceway material
Grauguß
Cylinder gasket set included
ja
Cylinder head included
nein

Crankshafts
Stroke
43.56 mm

Piston
Number of piston rings
3
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring

Piston clips
Piston clip type
G-Typ
Wire gauge Piston clip
1,0mm

OEM numbers (for comparison purposes only)
Naraku:
NK101.21
