Piaggio Item number: 1288989
Piaggio

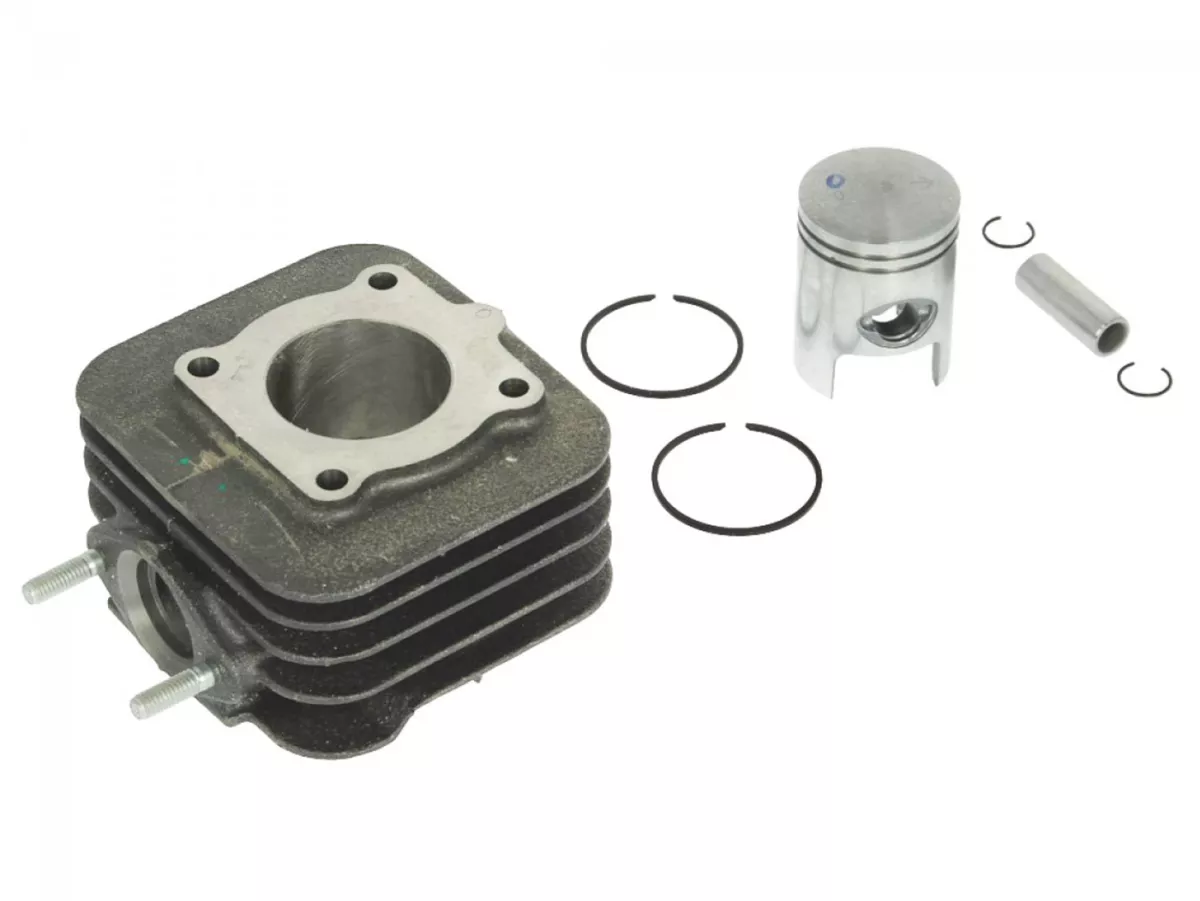

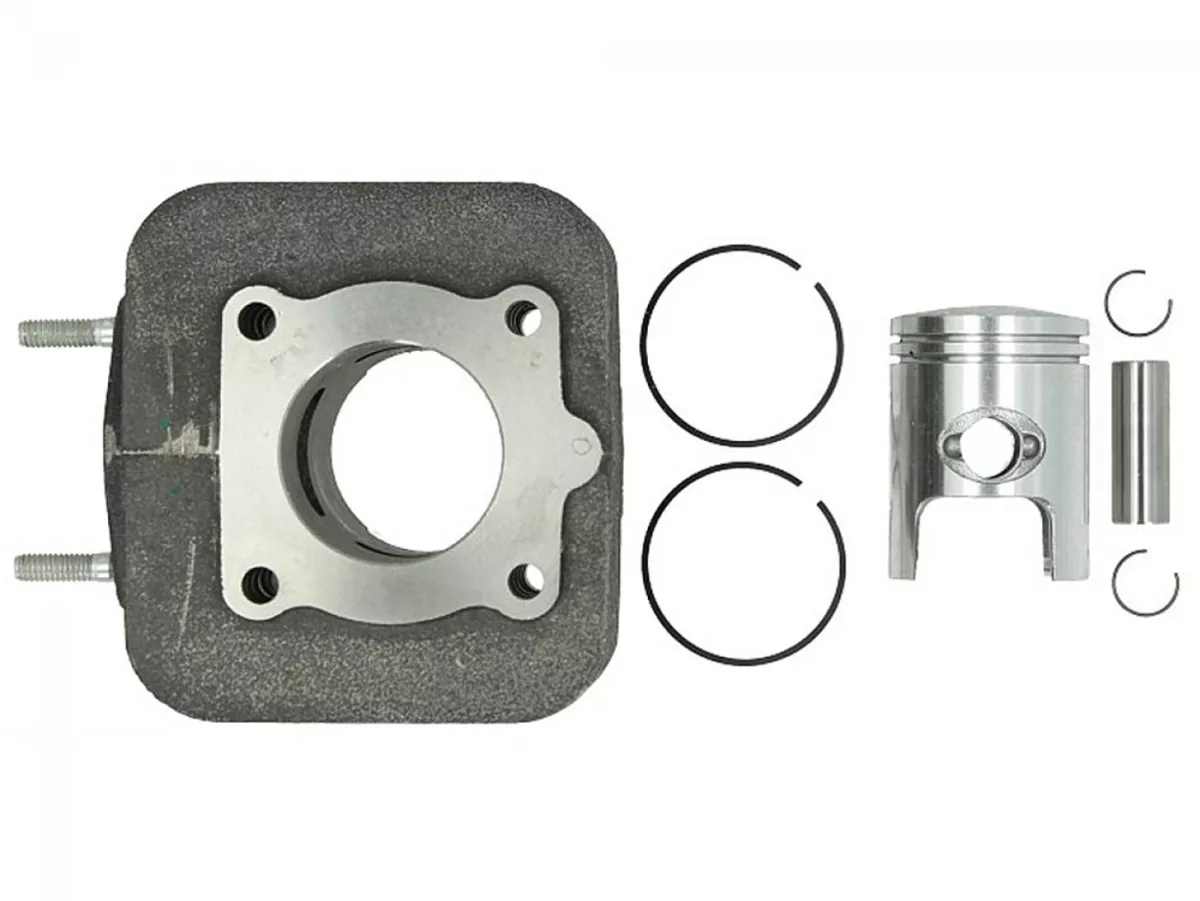

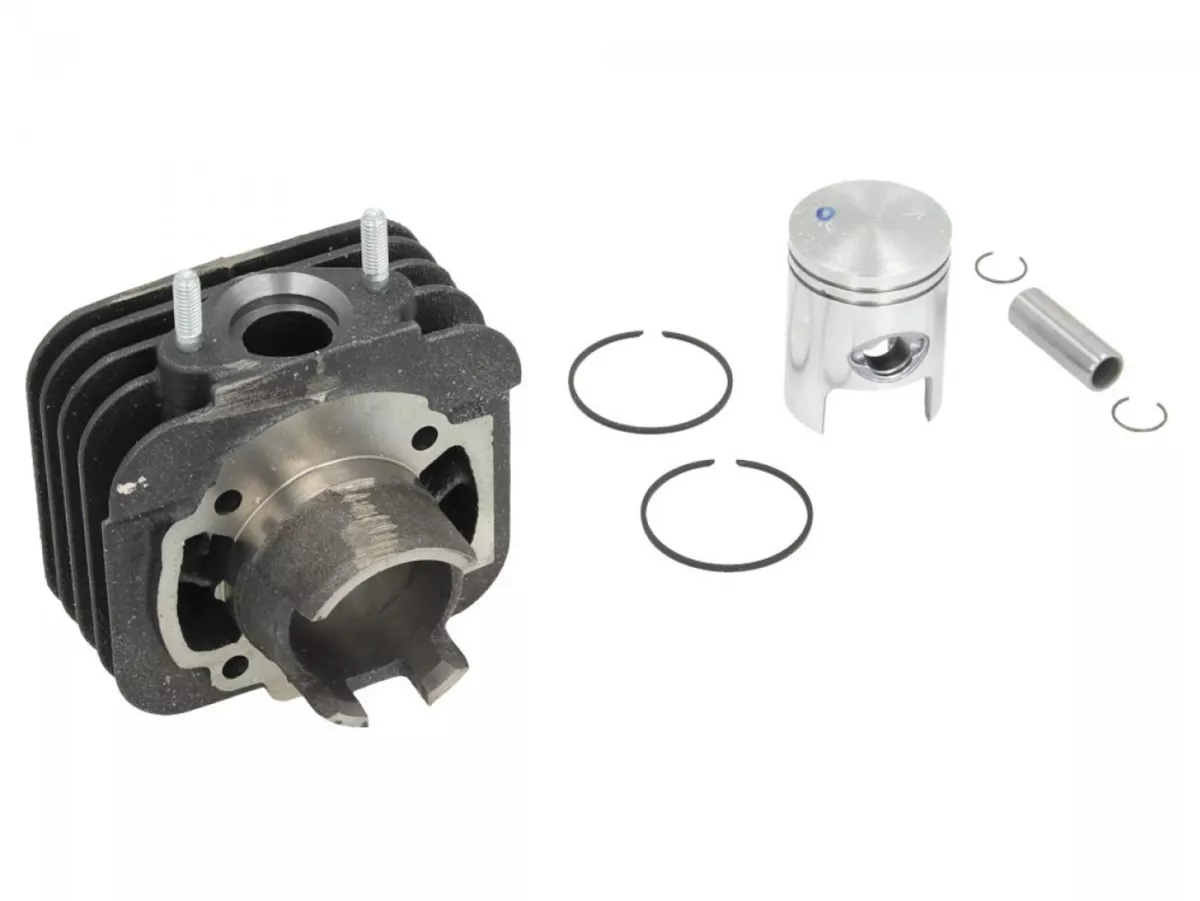

Cylinder -PIAGGIO 50 cc- Piaggio AC 2-stroke

2 Ratings
109,00 €*
available immediately
Shipping weight 1,64 kg
Information on product safety
Spare part in the usual good original equipment manufacturer quality. This means peace of mind for many tens of thousands of kilometres again!
AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  08/06/2017

Danke Schön! Gerne wieder!

Kevin B. from Erlenbach ZH 06/10/2025
Rate this product now
General
Performance class
Standard

Piston pin
Diameter
12 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B9ES
Spark plug thread
lang

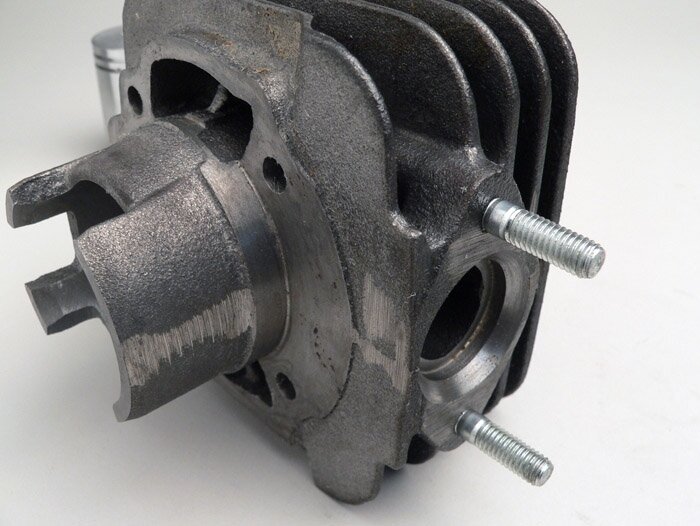

Cylinder
Drill hole
40 mm
Type of cooling
luftgekühlt
Displacement
49 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß
Cylinder gasket set included
nein
Cylinder head included
nein
Outlet shape
1-teilig (oval)
Exhaust assembly
Flansch
Flange type
mit Konus
Distance between exhaust studs
46 mm
Threaded exhaust studs
M6
Number of boost ports
1
Number of transfers (incl. boost ports)
5

Crankshafts
Stroke
39.3 mm

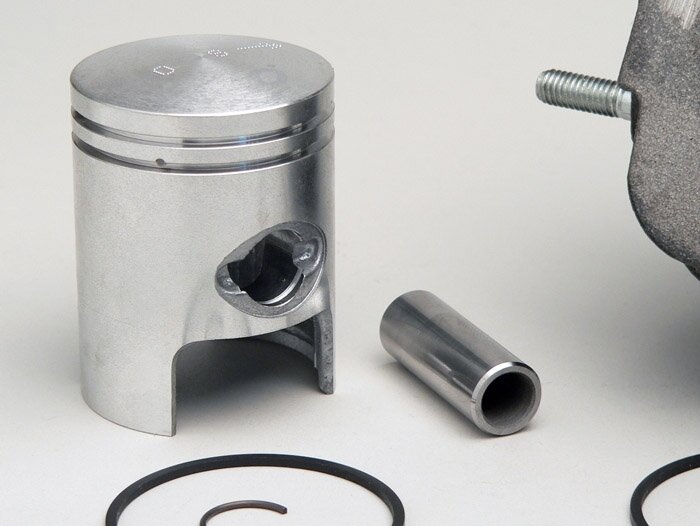

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,2mm

Piston clips
Piston clip type
C-Typ
Wire gauge Piston clip
1,0mm

OEM numbers (for comparison purposes only)
Piaggio:
286810, 487820, 488120, 831116
