Top Performances Item number: 7676116
Top Performances

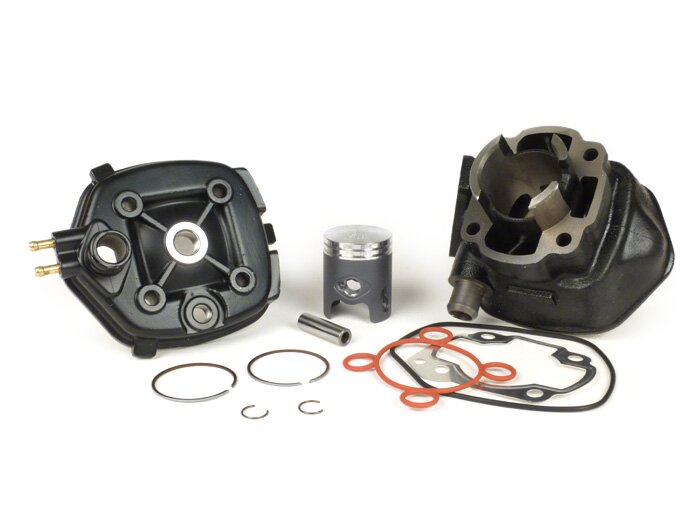

Cylinder -TOP PERFORMANCES 50 cc Black Trophy- Minarelli LC

155,00 €*
Ready for dispatch in 72h
Shipping weight 1,37 kg
Information on product safety
Report error
General
Performance class
Sport

Piston pin
Diameter
10 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B8HS
Spark plug thread
kurz

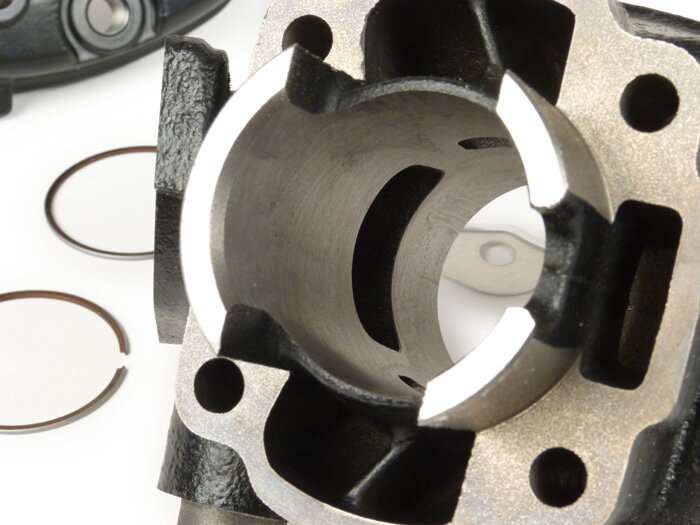

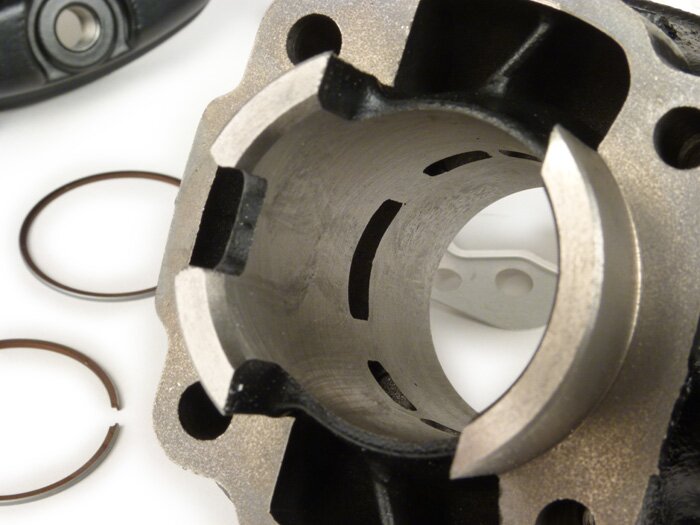

Cylinder
Drill hole
40 mm
Type of cooling
flüssigkeitsgekühlt
Displacement
49 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß
Cylinder gasket set included
ja
Cylinder head included
ja
Outlet shape
1-teilig (oval)
Exhaust assembly
Flansch
Flange type
2-Schrauben
Distance between exhaust studs
48 mm
Threaded exhaust studs
M6
Number of boost ports
1
Number of transfers (incl. boost ports)
5

Crankshafts
Stroke
39.2 mm

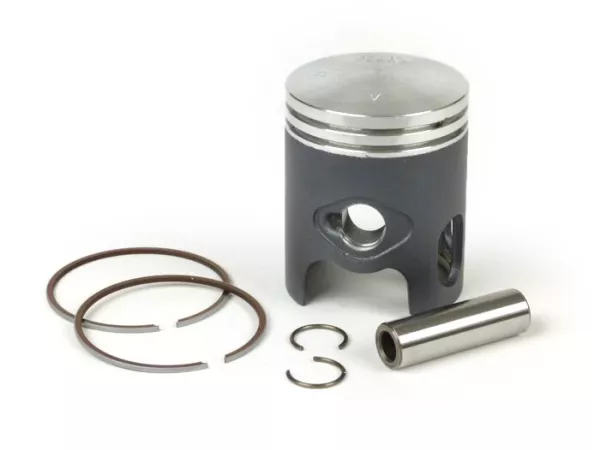

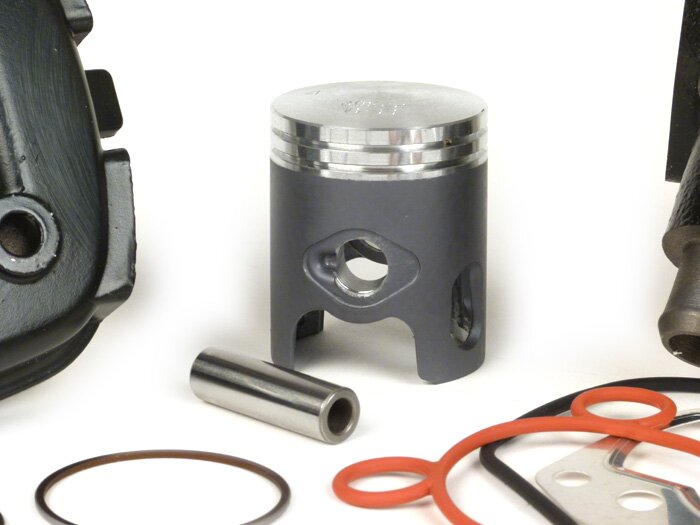

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,2mm

Piston clips
Piston clip type
C-Typ
Wire gauge Piston clip
1,0mm

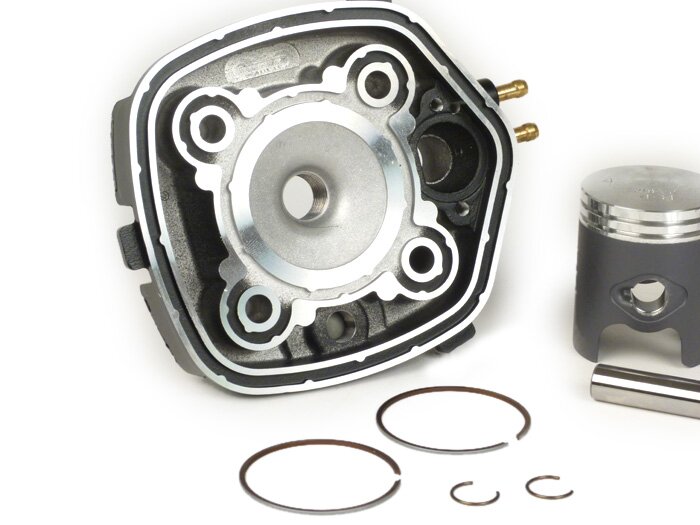

Cylinder heads
Cylinder head type
einteilig

OEM numbers (for comparison purposes only)
Scooter Center:
7676116
Top Performances:
9931110
