Piaggio Item number: 9020032
Piaggio
10 Ratings
3,00 €*
available immediately
Shipping weight 0,01 kg
The Vespa housings are fixed in the classic way, mostly by tie rods. Unlike stud bolts, tie rods are not screwed into the housing, but are guided through a bore hole that runs through both housing parts to be connected, and in the case of the Vespa motors are screwed on one side. The other side of the housing bolt (tie rod) has a head without a wrench but with an anti-twist device.
This technique minimizes the continuous effect on the thread, the torque distribution in the housing is better, but the main advantage is of course the more cost-effective production of the housing, because no threads have to be set here.

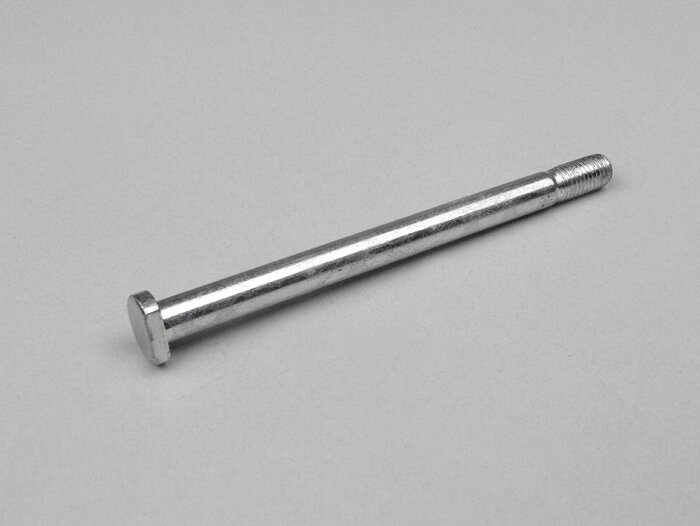

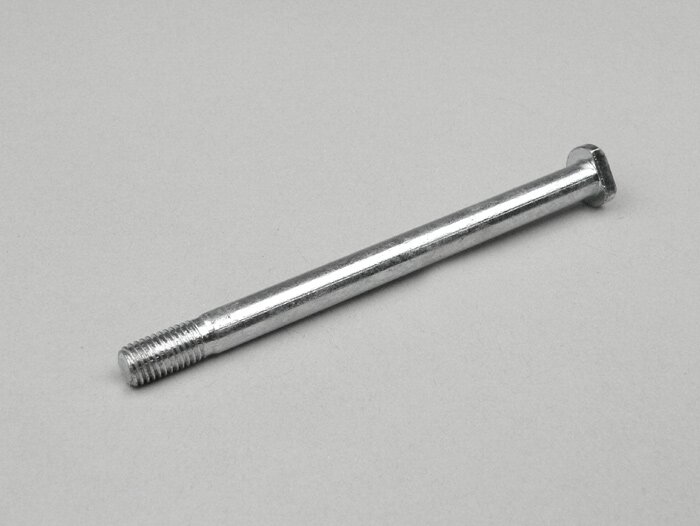

The 98mm engine housing bolt shown here is the longest bolt used in large frame engines such as Sprint, Rally, PX, Cosa and T5 engine housings. It is mounted at the height of the kick starter and runs through the hollow profile of the engine swing arm.
It is pushed through the housing from the clutch side, below the clutch cover. On older vehicles, this bolt is often heavily corroded in the middle, where it is exposed to both air and spray. Then the bolt is often difficult or impossible to remove from the housing.

  • Length: 98mm
  • Thread: M7
  • Material: Steel, burnished/galvanized
  • Scope of delivery: without nut, without washer or snap ring

Tip: To disassemble the engine halves, leave this bolt in the housing if it is stuck. The small motor half can still be removed and you avoid the risk of drilling out a bolt deformed by attempts to drive it out.
When fitting a new bolt, grease it well!


AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  10/14/2016

Zu teuer

Anonym  04/03/2016

brauchbar

Anonym  08/21/2017

good price quality

Anonym  01/20/2018

Very good marchandise at a very good price.

Anonym  01/12/2015

ottimo cosiglierei il prodotto

Anonym  05/21/2015

Passt

Anonym  02/16/2016

Schnelle Lieferung, top Qualität und super Kommunikation! Sehr Empfehlenswert!

Anonym  01/11/2018

Gute Qualität und Passform !

Paulo B. from Heilbronn 05/04/2025
Oliver O. from Scharbeutz 09/21/2025
OEM numbers (for comparison purposes only)
Piaggio:
014565, 14565, S.14565, S.14566, S14566
Scooter Center:
9020032
